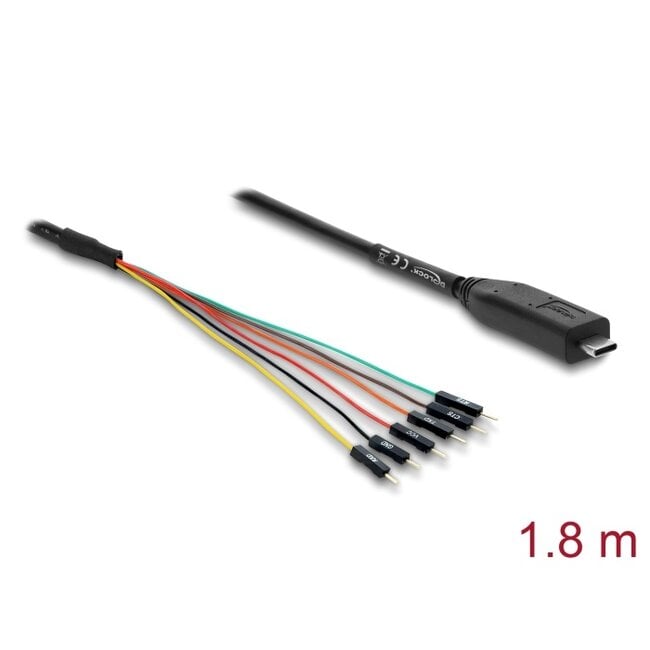

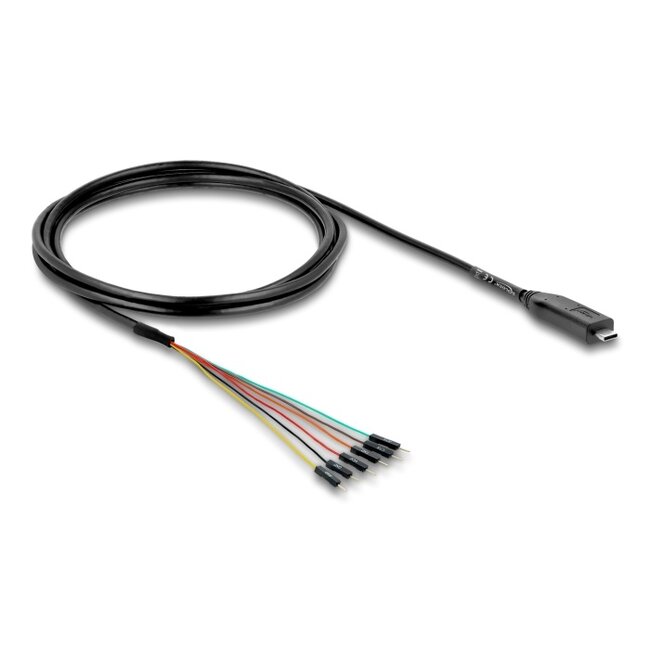

The USB 2.0 to UART converter by Delock expands the computer by four serial LVTTL data lines and an additional power supply. This makes it possible to access the interfaces of various devices for updating, programming and data transfer.
UART interface
A UART (Universal Asynchronous Receiver-Transmitter) is a serial interface that is used by many devices for external communication.

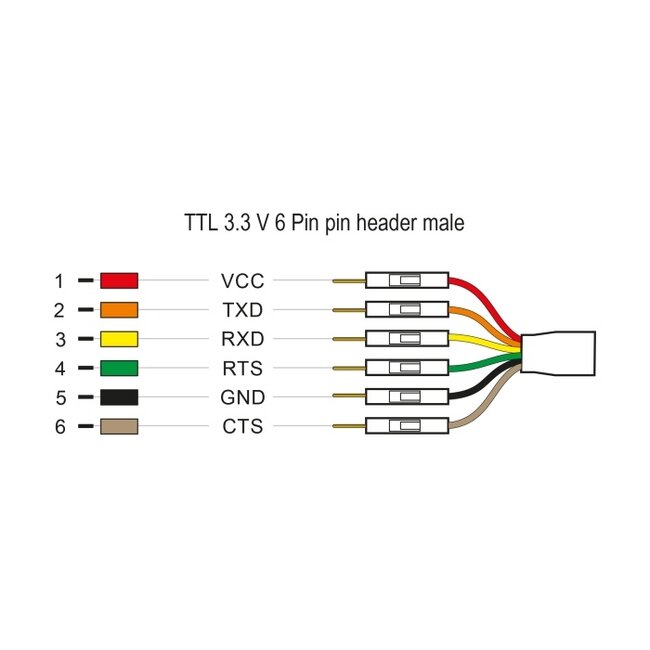

• Connectors:
1 x USB 2.0 Type-C™ male
4 x TTL (3.3 V) pin header
1 x 3.3 V / 1 A pin header
1 x GND
• Signals: RX, TX, RTS, CTS
• Vcc = 3.3 V
• Chipset: FTDI FT232RL
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 3 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• FIFO:
128 Byte - RX
256 Byte - TX
• Cable gauge: 26 AWG
• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C
• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows CE 4.2/5.0/6.0
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 UART converter
• User manual
