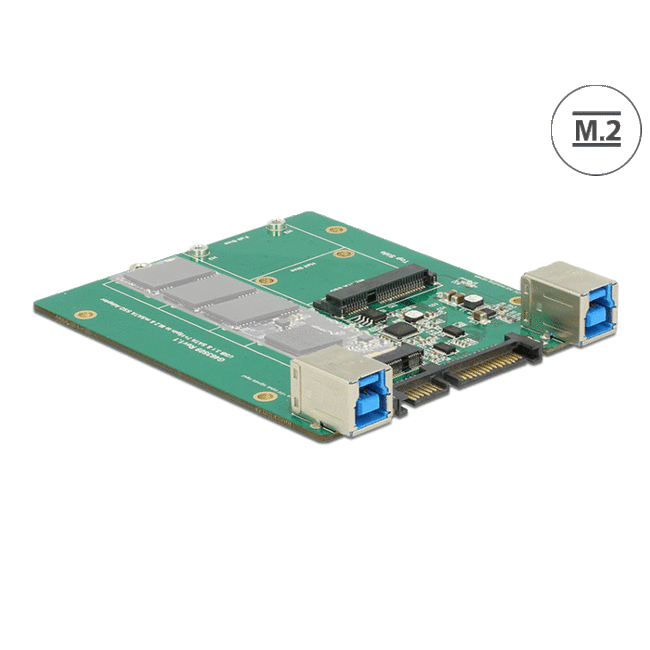

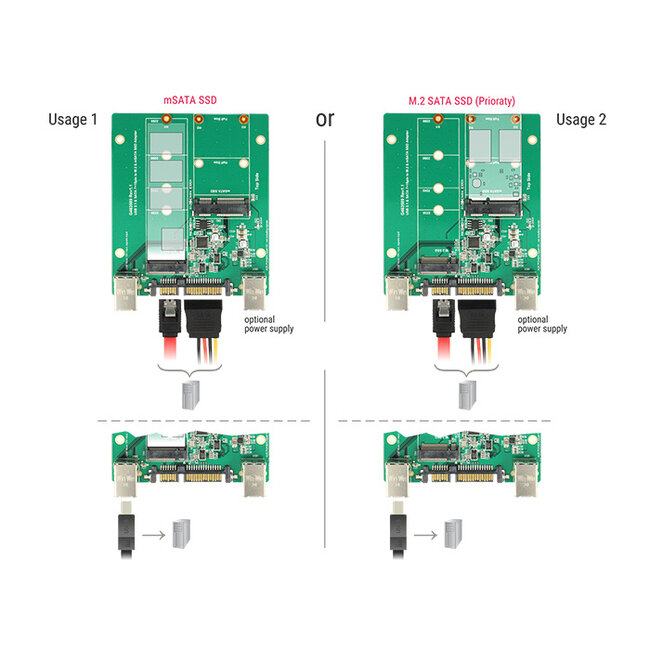

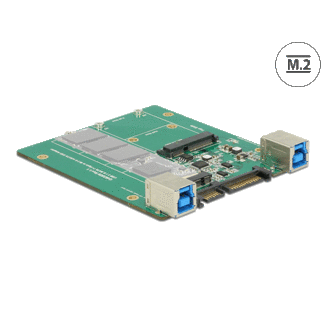

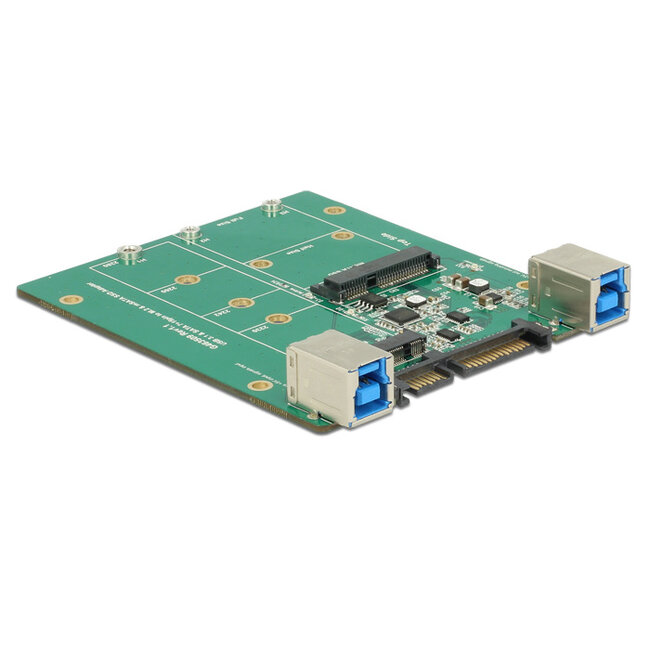

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through a SATA or USB interface.
Specification• Connector:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-B female
1 x USB 3.0 Type-B female (optional for power supply) >
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based
on SATA
• Maximum height of the components on the module: 1.35 mm application of double-sided
assembled modules supported
• LED indicator
• Maximum current for M.2 or mSATA module: 3 A
• Dimensions (LxWxH): ca. 100 x 85 x 15 mm
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6
• A free SATA interface or
• A free USB interface
Package content
• Converter
• Screws for M.2 module and mSATA module
• User manual
