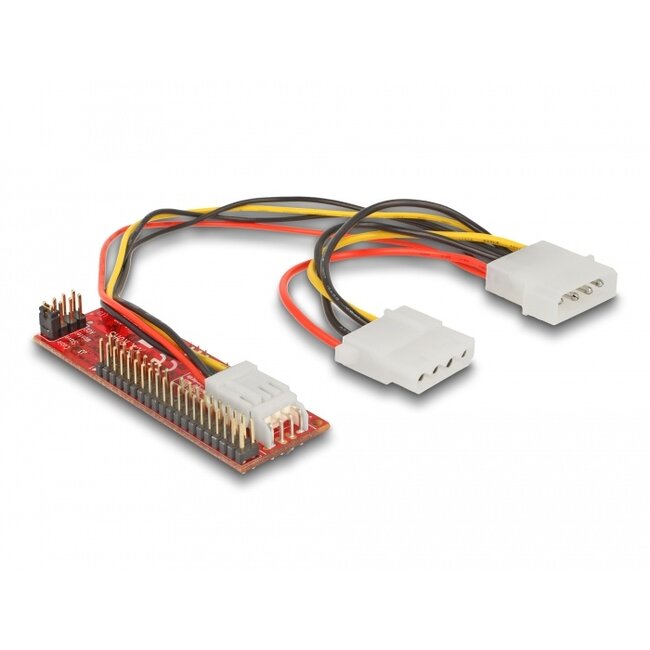

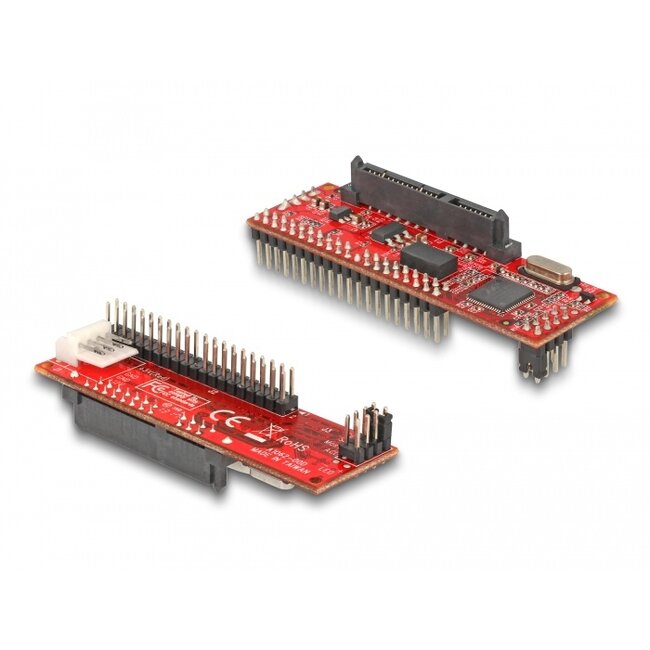

The Delock converter enables the connection of a SATA device to the IDE interface.

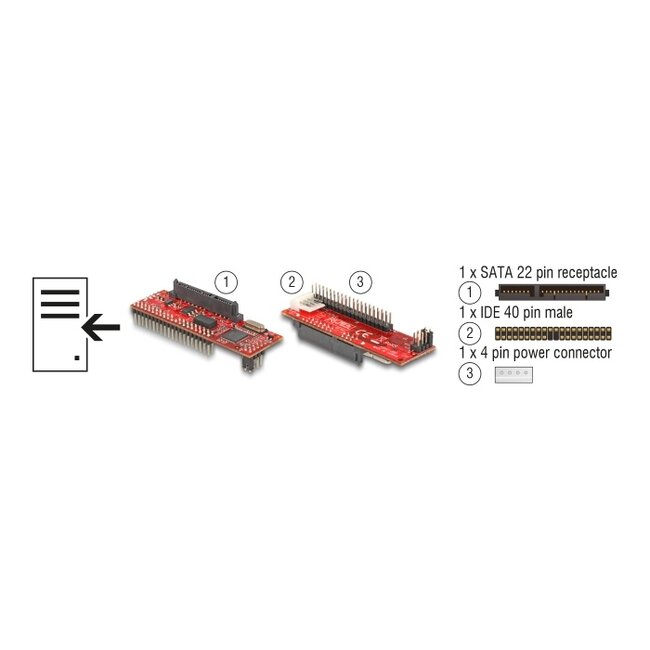

Specification• Connectors:
1 x SATA 22 pin receptacle >
1 x IDE 40 pin male
1 x 4 pin power connector
• Compliant to Serial ATA 3 Gb/s
• Ultra ATA/133 Parallel interface
• Jumper for selecting Master / Slave and Cable Select
• Supports PIO and UDMA modes
• Supports SATA HDDs and SATA drives like CD-ROM, DVD-ROM, Blu-Ray etc.
• Dimensions (LxWxH): ca. 75 x 23 x 21 mm
• OS independent, no driver installation necessary
• One free IDE 40 pin port
Package content
• Converter SATA > IDE
• Power cable
• User manual
