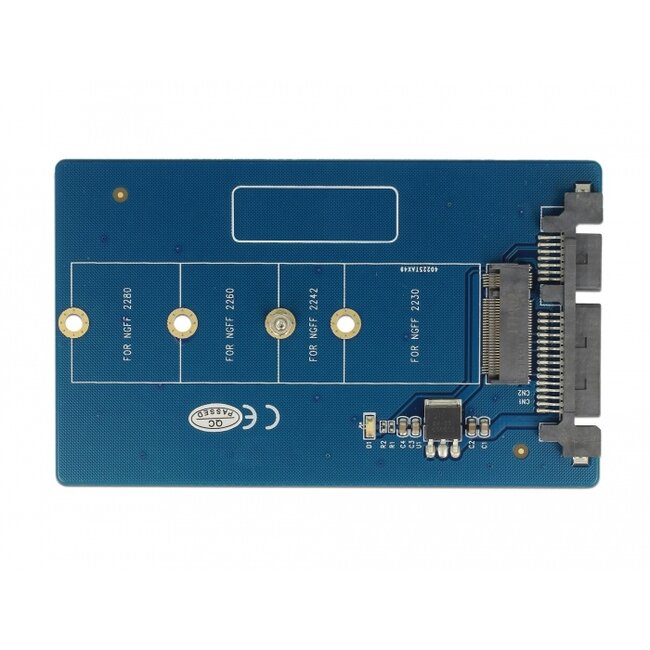

This Delock converter enables you to connect a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through an SATA 22 pin interface.
Specification• Connectors:
1 x SATA 22 pin plug >
1 x 67 pin M.2 key B slot
• Interface: SATA

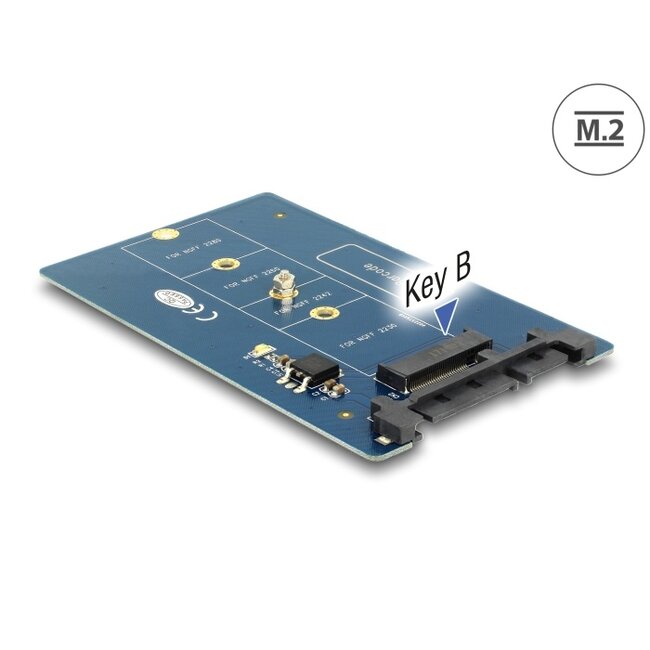

• Supports M.2 modules in format: 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA

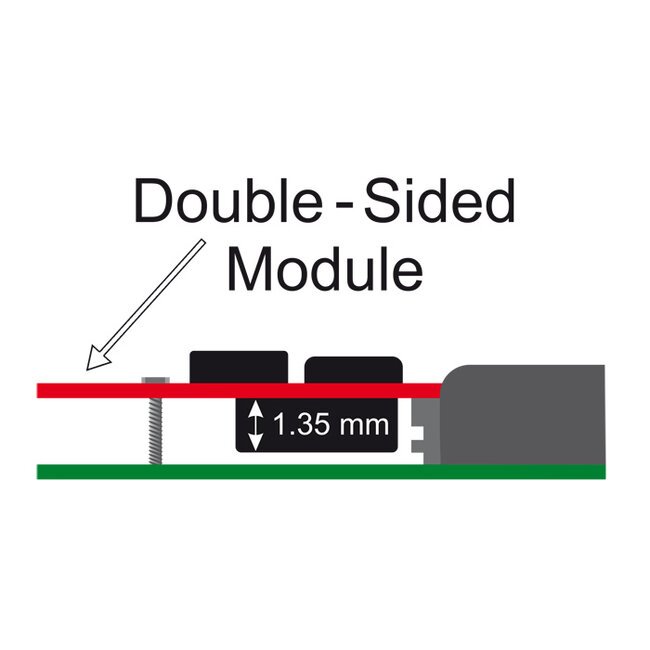

• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 100 x 60 x 5 mm
• OS independent, no driver installation necessary
• A free SATA 22 pin interface
Package content
• Converter

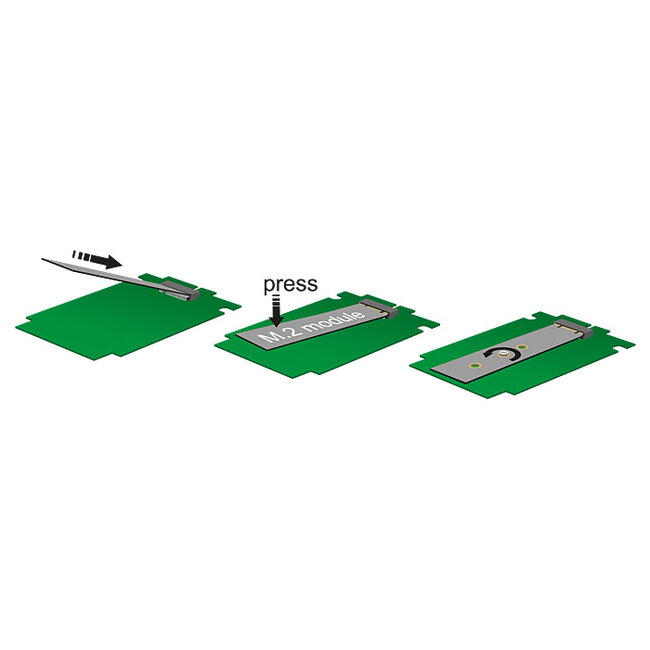

• 1 x fixing screw for M.2 module
