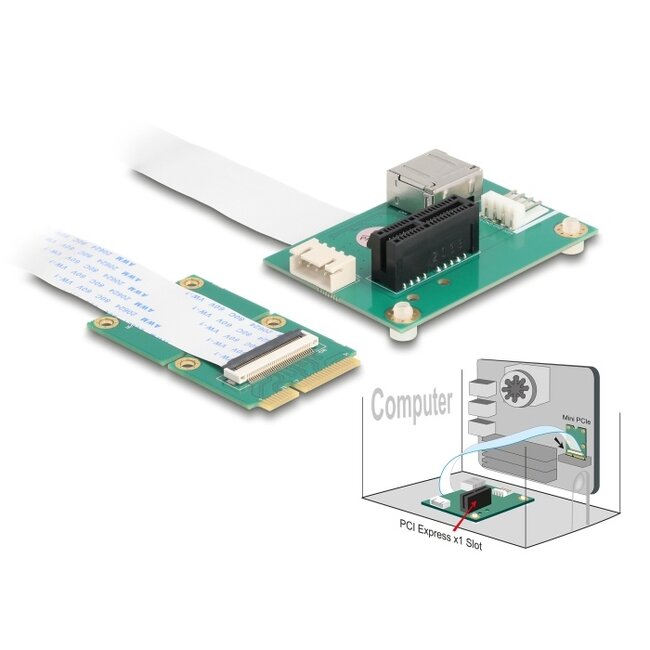

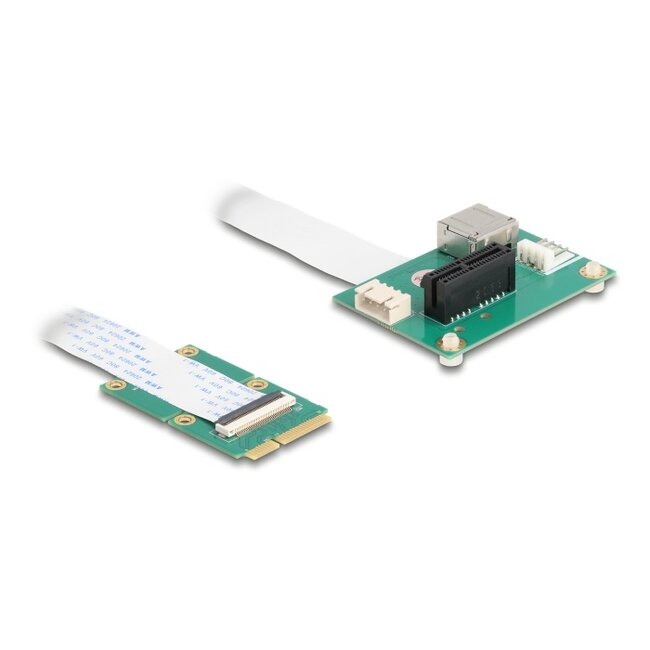

This converter by Delock changes the Mini PCIe interface into a PCI Express slot. Different PCI Express cards can be inserted into the PCIe slot.
Additional USB Type-A port
Different USB devices can be connected to the USB interface.
• Connectors:
1 x Mini PCIe male
1 x PCI Express x1, V1.1
1 x USB 2.0 Type-A female
1 x Floppy 4 pin power plug
1 x 4 pin power connector
• PCI Express Rev. 1.1
• Interface: PCIe + USB
• Form factor Mini PCIe: half size and full size
• Bootable
• Power supply:
3.3 V (for PCIe slot) from Mini PCIe
5 V (for USB) from 4 pin power connector
12 V (for PCIe slot) from 4 pin power connector
• Dimensions (LxWxH):
PCIe board: ca. 60 x 42 x 15 mm
Mini PCIe board: ca. 51 x 30 x 3 mm
• Converter board M.2
• Mini PCIe board

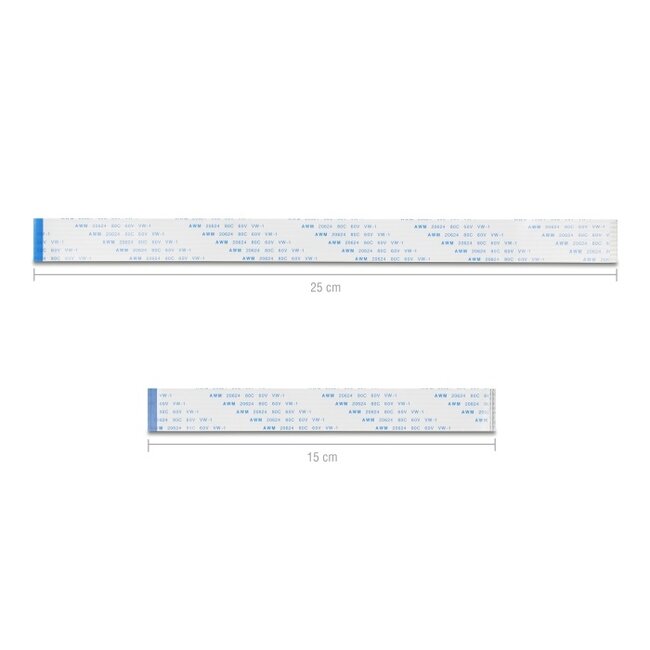

• 2 x flat cable, length ca.: 1 x 15 cm, 1 x 25 cm

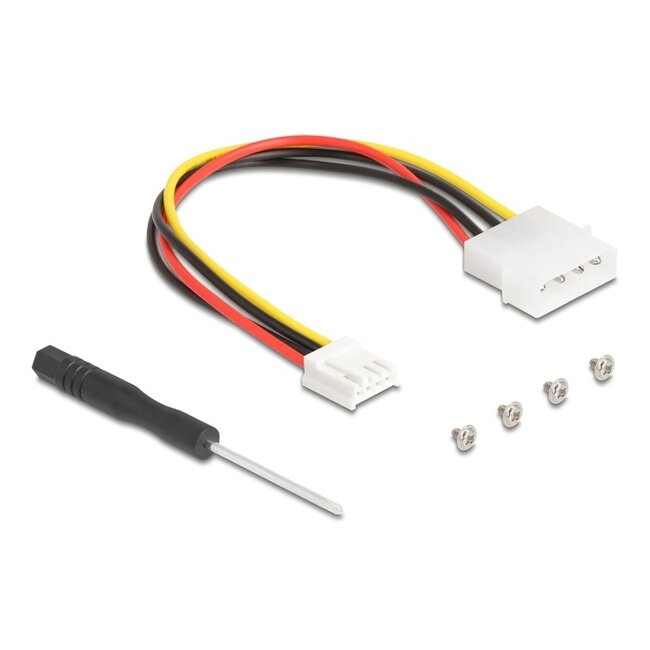

• Power cable
• Screws
• User manual
