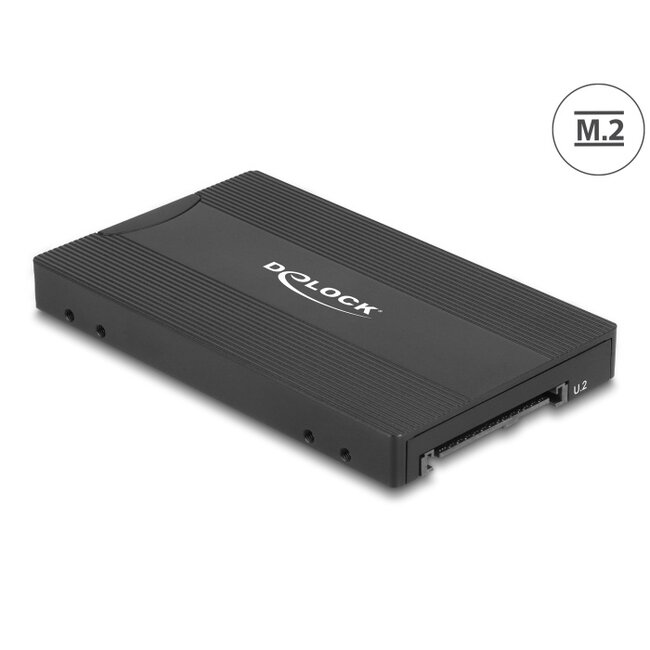

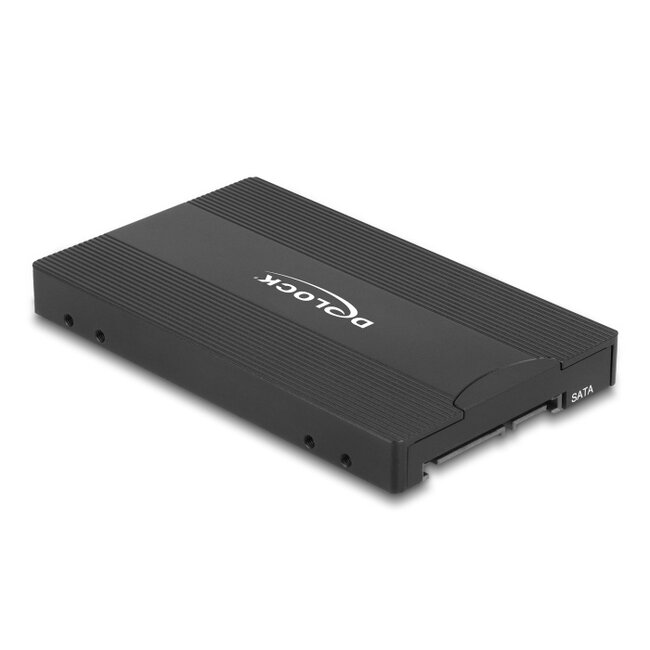

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD with key M or SATA M.2 SSD with key B in 2280, 2260, 2242 and 2230 format. When using a NVMe SSD, the converter is connected to the U.2 interface, connected to the SATA interface when using a SATA SSD.
Suitable for 2.5″ bay

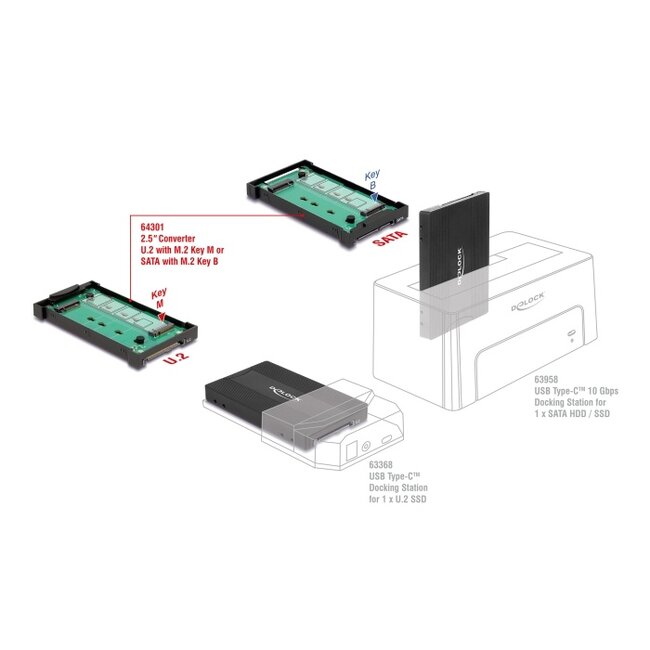

The converter can be plugged into a 2.5″ bay of a docking station for HDD / SSD.

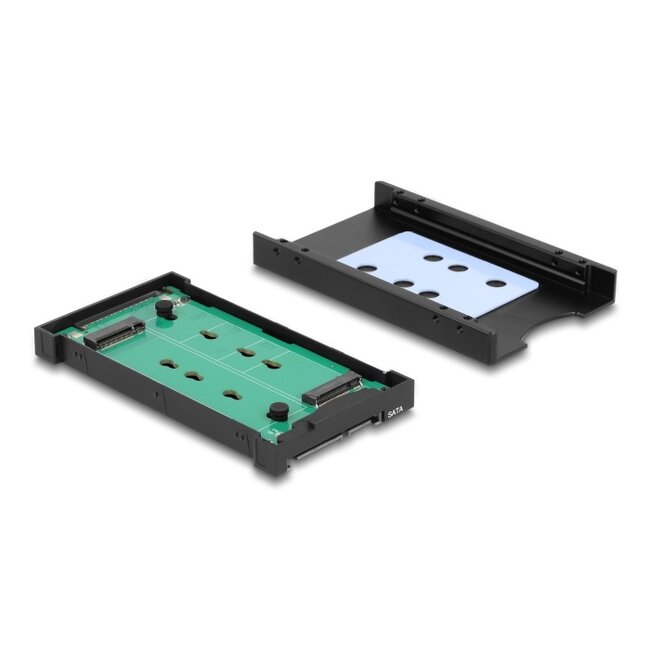

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and attached to the board with a rubber nipple.
Good cooling
At the top part, which is made of metal, a connection to the SSD is made via a thermal conduction pad inside. This ensures a cooling of the SSD.
• Connectors:
external:
1 x U.2 SFF-8639 male
1 x SATA 6 Gb/s 22 pin plug
internal:
1 x M.2 key M slot
1 x M.2 key B slot
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M, key B or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): ca. 115 x 70 x 12 mm
• OS independent, no driver installation necessary
• A free U.2 SFF-8639 interface or
• A free SATA 22 pin interface
Package content
• Converter
• Screws
• User manual
