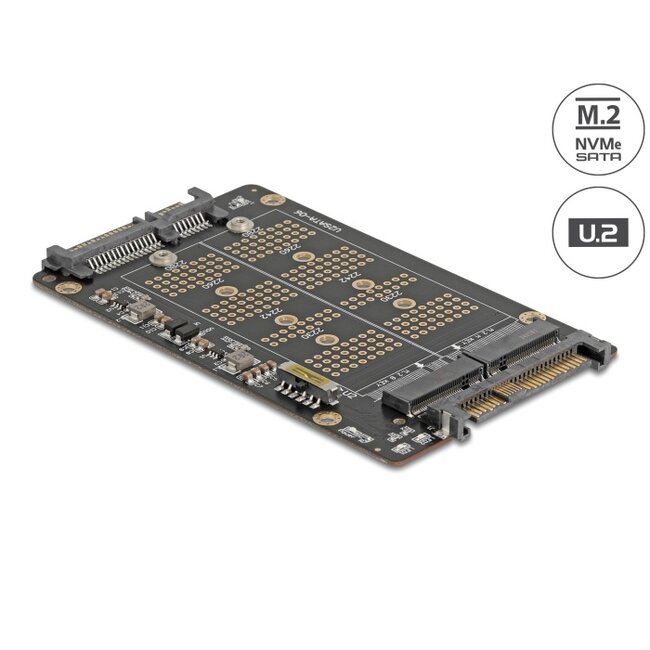

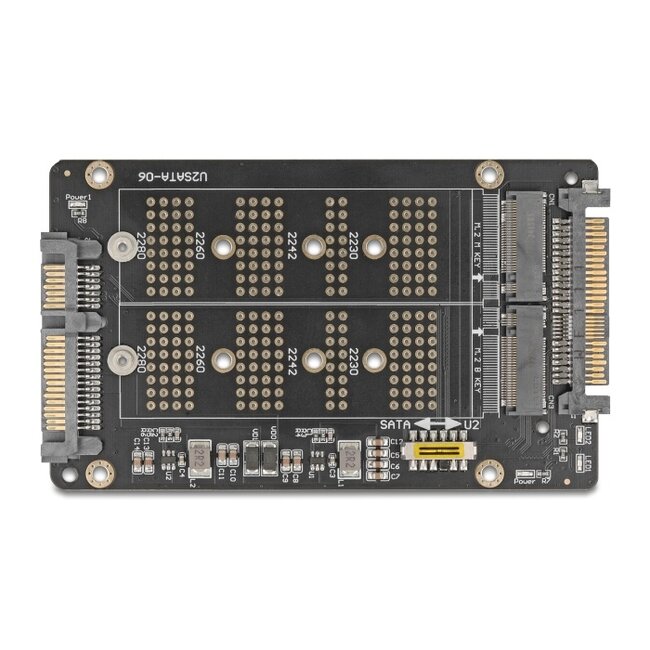

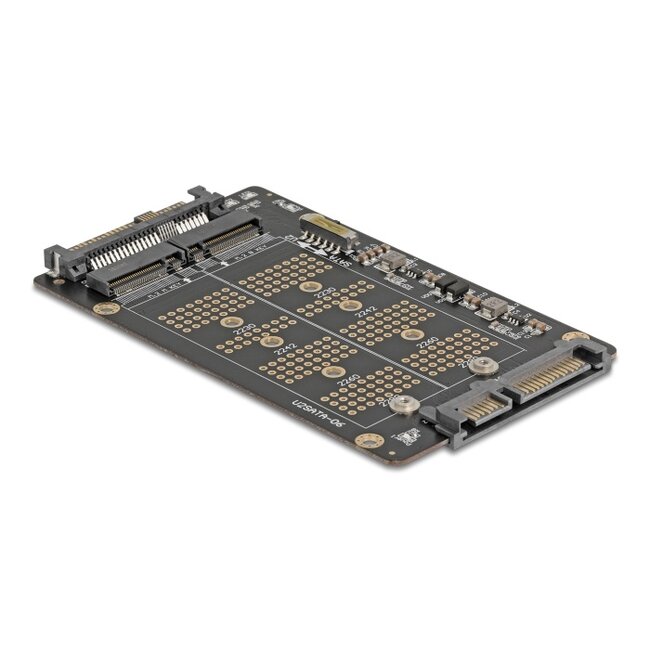

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD with key M or SATA M.2 SSD with key B in 2280, 2260, 2242 and 2230 format. When using a NVMe SSD, the converter is connected to the U.2 interface, connected to the SATA interface when using a SATA SSD. It is also possible to use both SSDs simultaneously, provided the appropriate cables are connected.
Specification• Connectors:
1 x U.2 SFF-8639 male
1 x SATA 6 Gb/s 22 pin plug
1 x M.2 key M slot
1 x M.2 key B slot
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M, key B or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• 4 x LED indicator
• 1 x switch for mode
• Dimensions (LxWxH): ca. 113 x 66 x 6 mm
• A free U.2 SFF-8639 interface or
• A free SATA 22 pin interface
Package content
• Converter

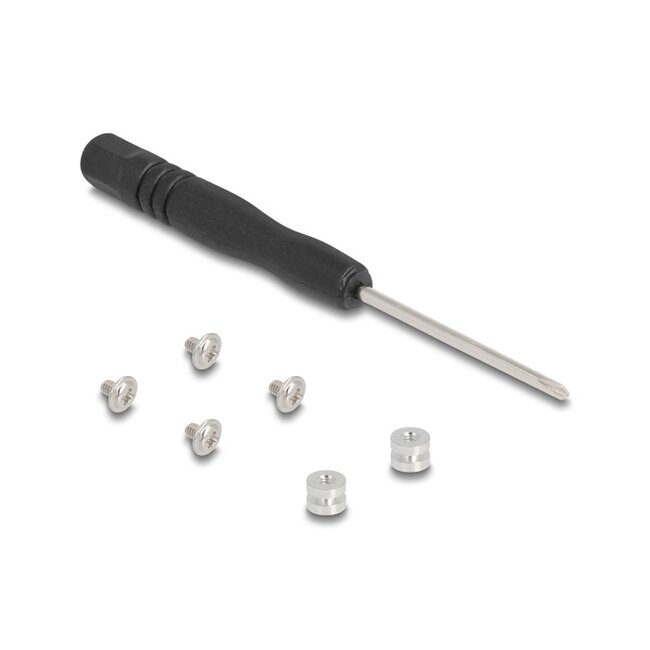

• Screws
• Screwdriver
• User manual
