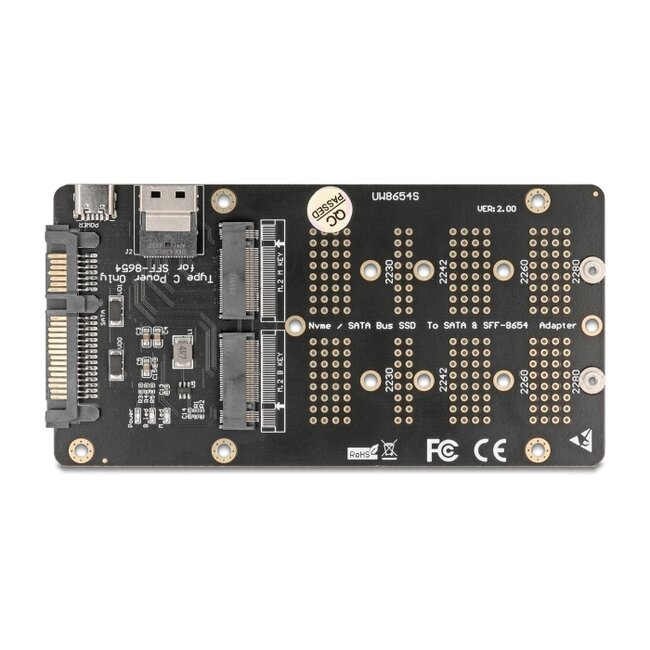

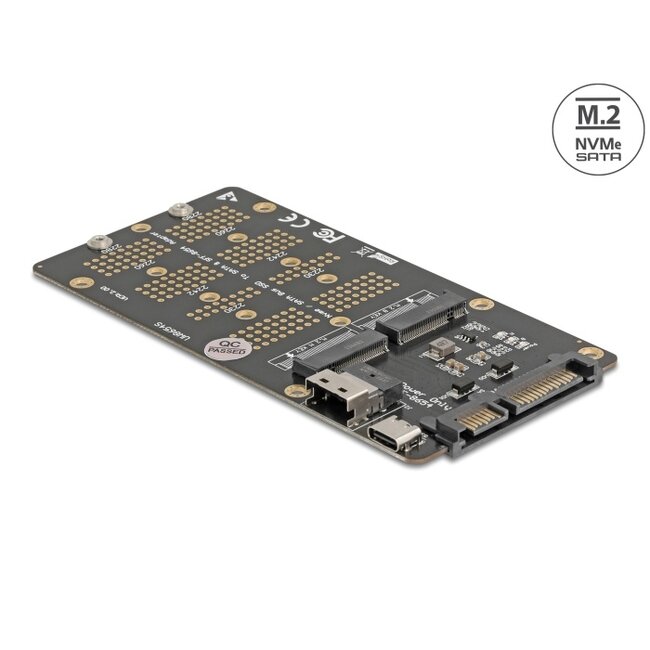

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format with key B and a M.2 SSD in 2280, 2260, 2242 and 2230 format with key M. It allows the possibility to connect a M.2 SSD based on PCIe and M.2 SSD based on SATA at the same time. The converter connects via the SATA interface for SATA M.2 SSDs and via the SFF-8654 interface for PCIe M.2 SSDs, depending on the type of SSD used.
Specification• Connectors:
1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs)
1 x Slim SAS SFF-8654 4i female
1 x M.2 key M slot
1 x M.2 key B slot
1 x USB Type-Câ„¢ female (power supply)
• Interface: SATA / PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M, key B or key B+M based on PCIe or SATA
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Power supply via SATA 15 pin plug or USB-C™ female
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 126 x 64 x 9 mm
• A free SATA interface (SATA SSD)
• A free NVMe interface (PCIe SSD)

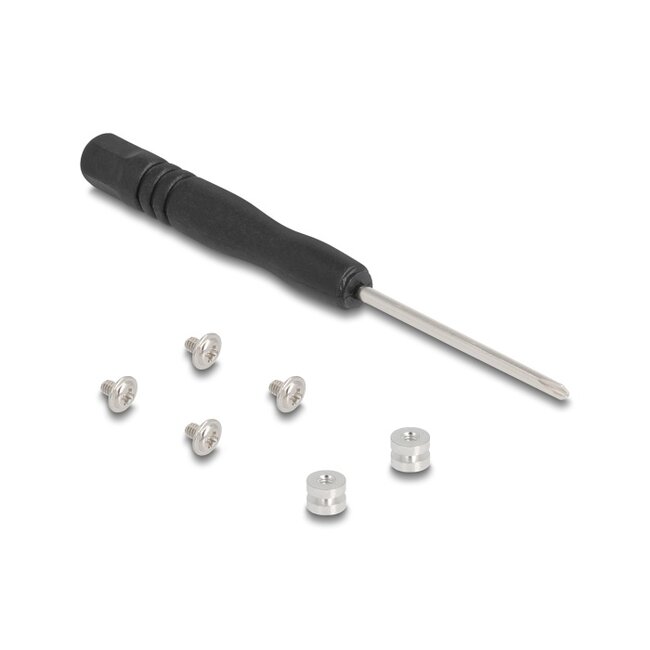

Package content
• Converter
• Mounting material
• Screwdriver
• User manual
