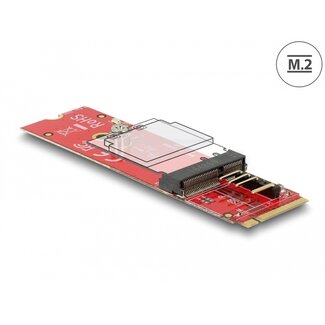

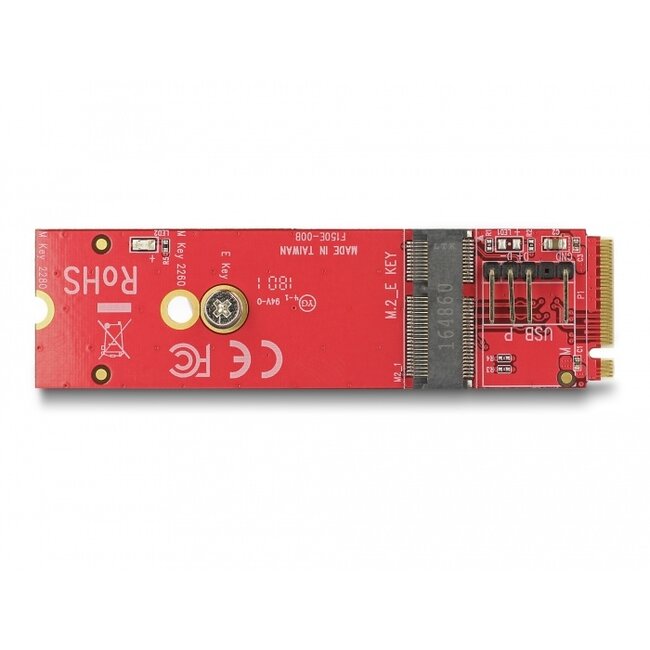

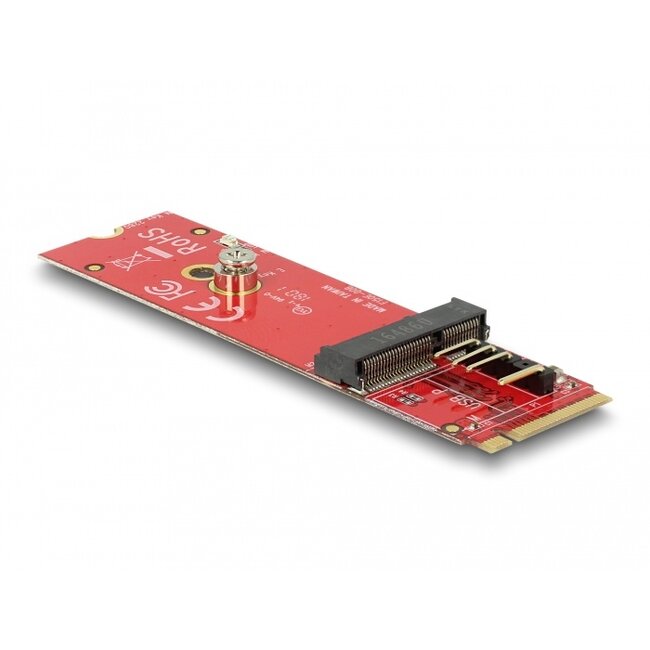

This converter by Delock converts the M.2 key M slot into a key E slot. It supports modules with USB and PCIe signal transfer.
Specification• Connectors:
1 x 67 pin M.2 key M male >
1 x 67 pin M.2 key E slot
1 x 4 pin USB 2.0 pin header
• Form factor: M.2 2280
• Supports modules in format 2230, 1630 and 3030 with key E
or key A+E based on PCIe and USB
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 80 x 22 x 5 mm
• OS independent, no driver installation necessary
• One free M.2 key M slot
Package content
• Converter

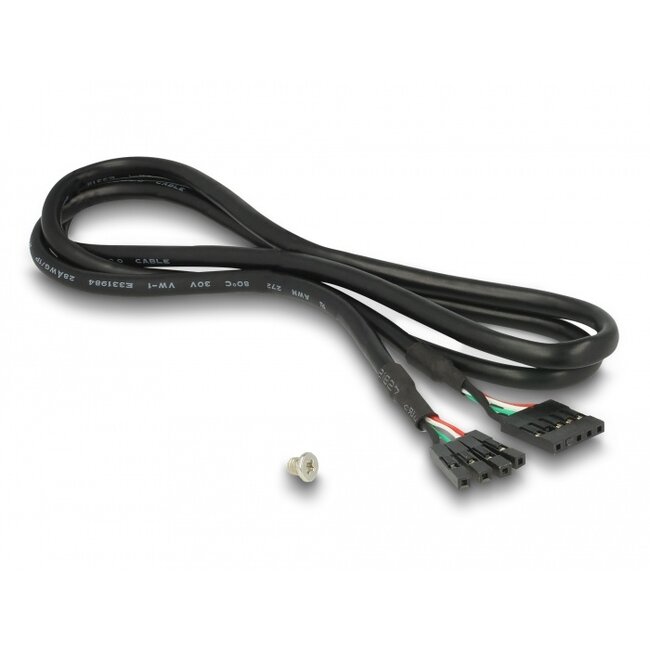

• USB pin header cable 5 pin to 4 pin, length ca. 90 cm
• Mounting material
• User manual
