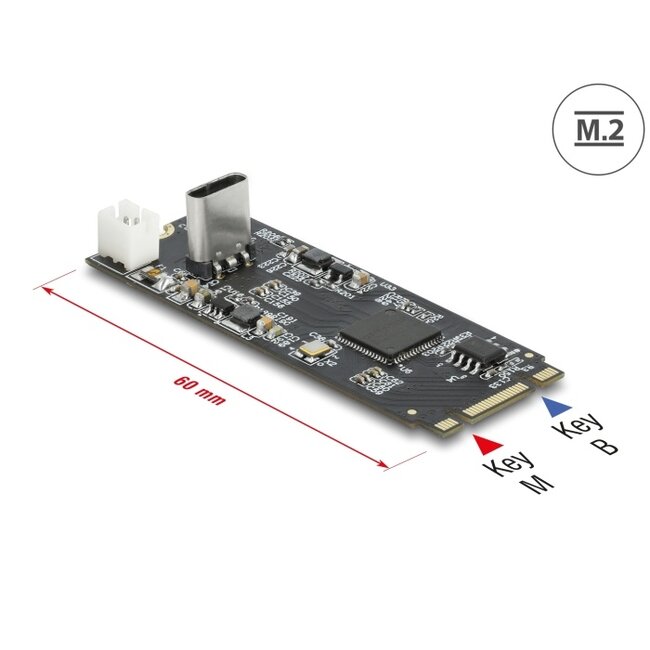

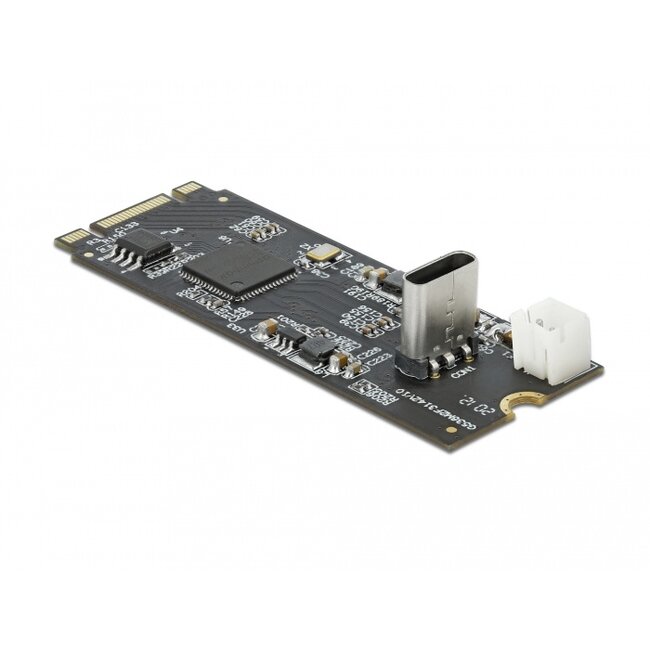

This converter by Delock expands the system by one USB Type-C™ port. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the converter.
Supports SuperSpeed USB 10 Gbps
A maximum data transfer rate of up to USB 3.2 Gen 2 - 10 Gbps can be reached.
• Connectors:
1 x 59 pin M.2 key B+M male >
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
1 x 2 pin power connector
• Chipset: Asmedia ASM3142
• Interface: PCIe
• Form factor: M.2 2260
• Suitable for M.2 slot with key M or B based on PCIe
• Data transfer rate up to 10 Gbps
• Bootable
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Electrical power: max. 15 watt (5 V / 3 A)
• Supports Multiple INs
• Dimensions (LxWxH): ca. 60 x 22 x 11 mm
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• A free M.2 key M or key B slot
Package content
• Converter

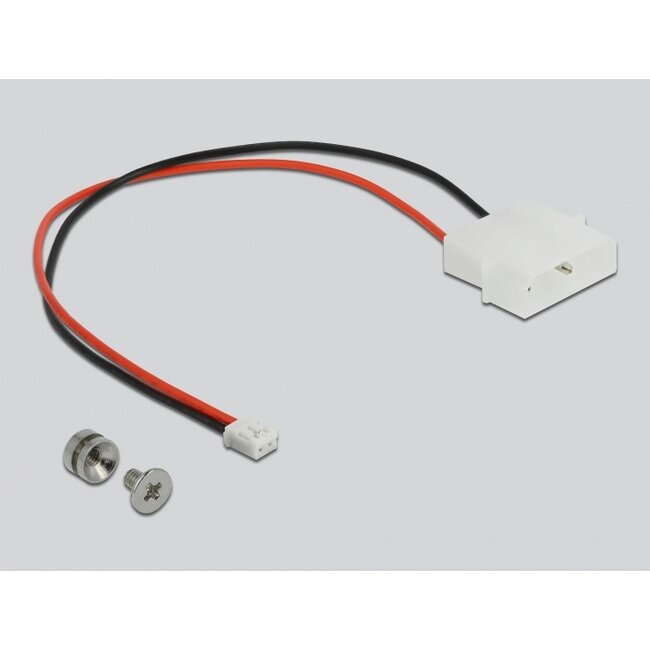

• Power cable 2 pin to Molex, length ca. 30 cm
• Screws
• User manual
