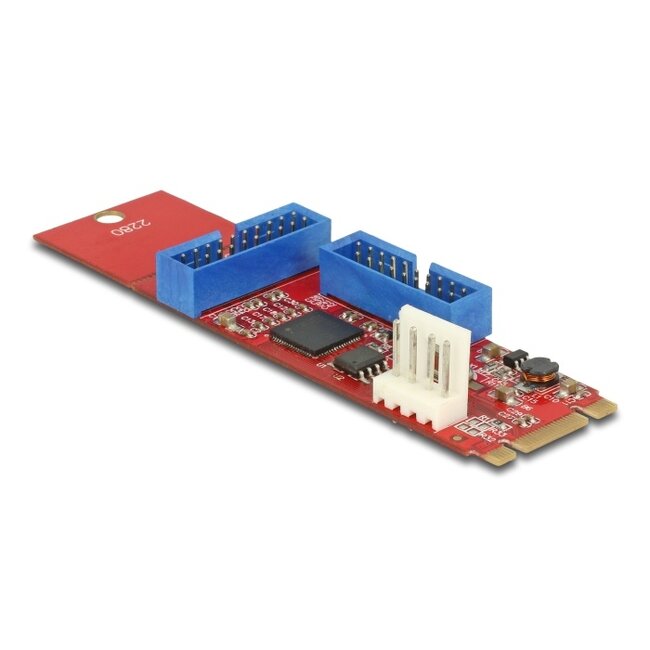

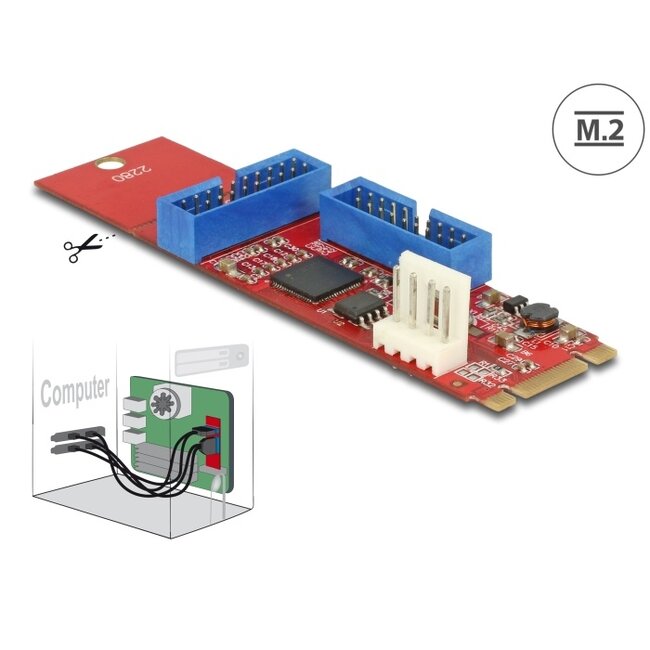

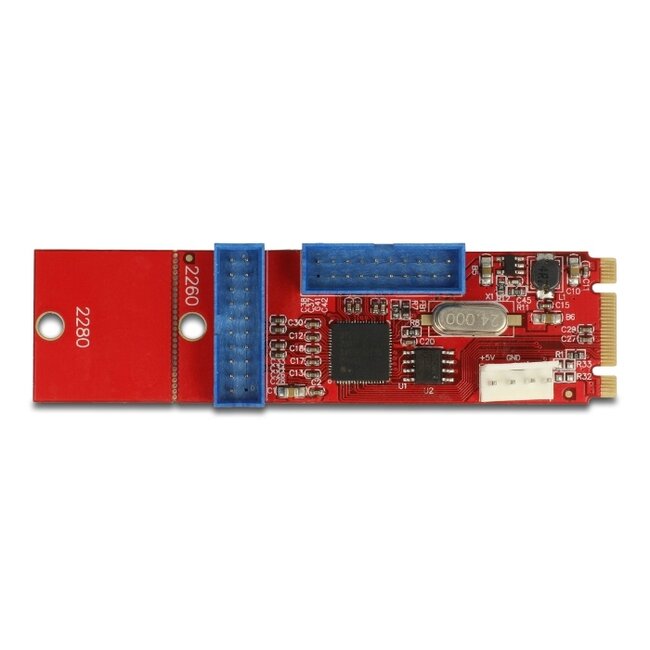

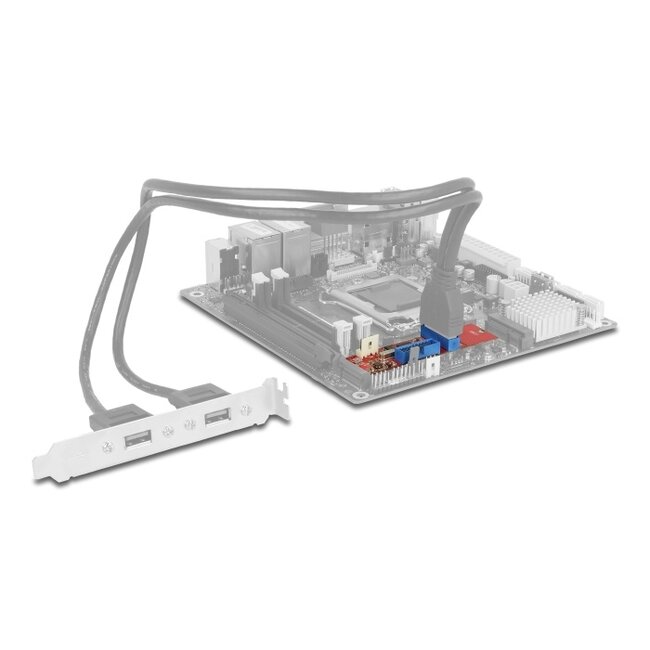

This converter by Delock expands the system by two USB 5 Gbps pin header male. The converter has a length of 80 mm, it can be shorten by the predetermined breaking point to 60 mm.
Specification• Connectors:
1 x M.2 key B+M male
2 x 19 pin USB 5 Gbps pin header male
1 x Floppy 4 pin power plug
• Chipset: Renesas
• Interface: PCIe
• Form factor: M.2 2280 (2260)
• Suitable for M.2 slot with key M or B+M based on PCIe
• Data transfer rate up to 5 Gbps
• Bootable
• Dimensions (LxWxH): ca. 82 x 22 x 14 mm
• Linux Kernel 3.16 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free M.2 key M slot
• Power supply with a free 4 pin power connector
Package content
• Converter

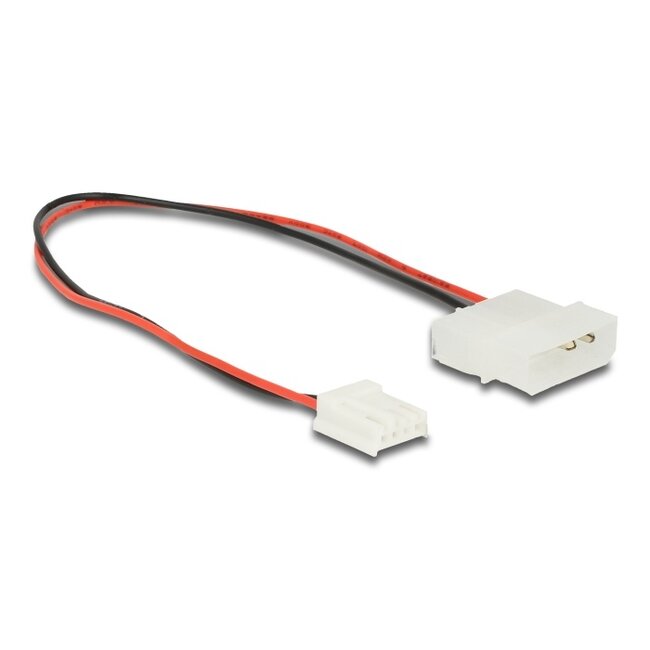

• Power cable
• Driver CD
• User manual
