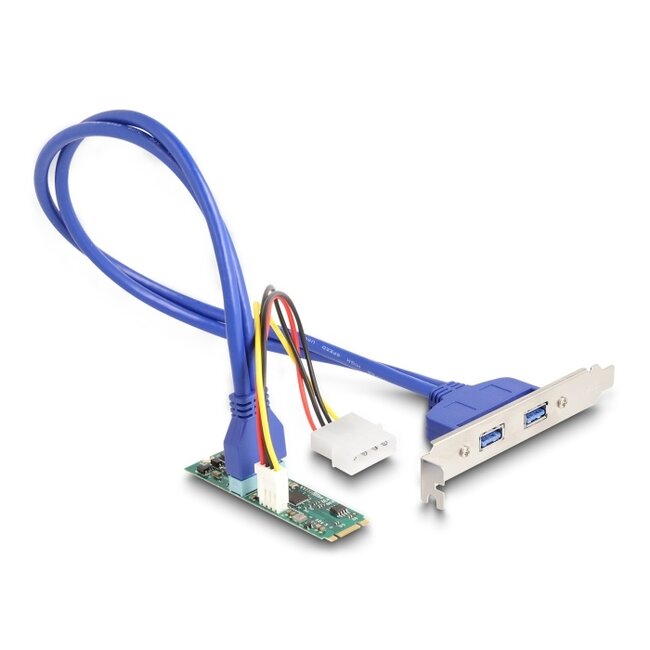

This converter by Delock expands the system by two USB 5 Gbps Type-A female ports, which can be lead out via the slot bracket.
Specification• Connectors:
1 x M.2 key B+M male
2 x USB 5 Gbps Type-A female
1 x Floppy 4 pin power plug (optional for power supply)
• Chipset: Renesas uPD720202
• Interface: PCIe

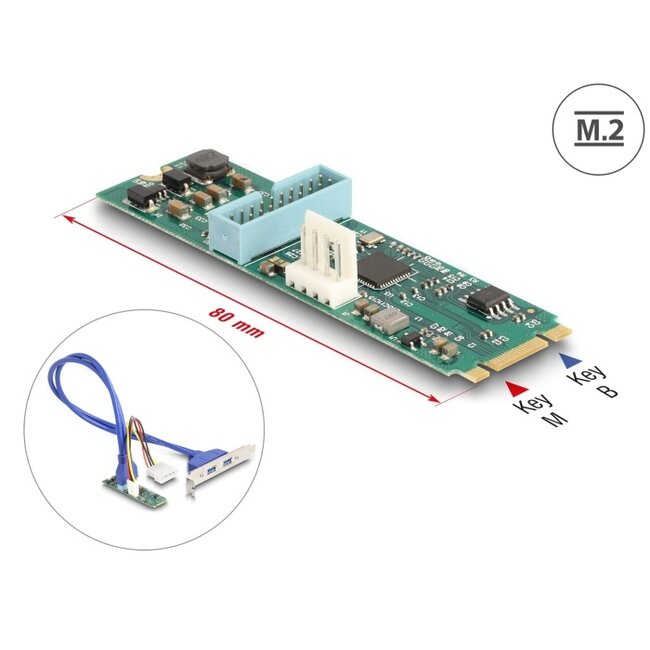

• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B+M based on PCIe
• Data transfer rate up to 5 Gbps
• Bootable
• Dimensions (LxWxH): ca. 80 x 22 x 17 mm
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• A free M.2 key M or key B slot
• Power supply with a free 4 pin power connector
Package content
• Converter

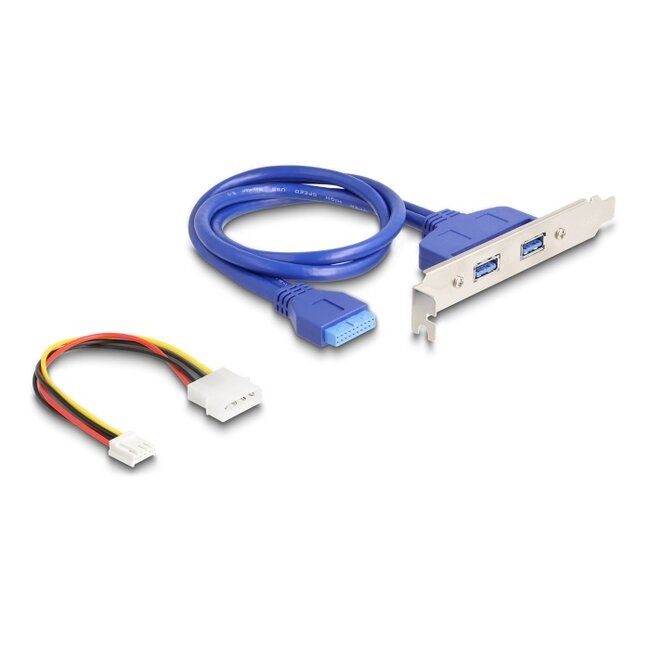

• 1 x connecting cable USB pin header female to 2 x USB Type-A female, length ca. 50 cm
• Power cable, length ca. 20 cm
• User manual
