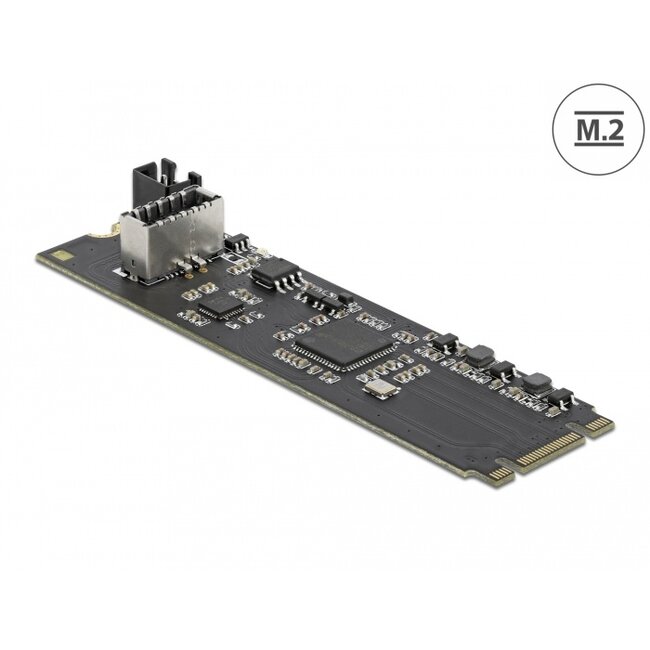

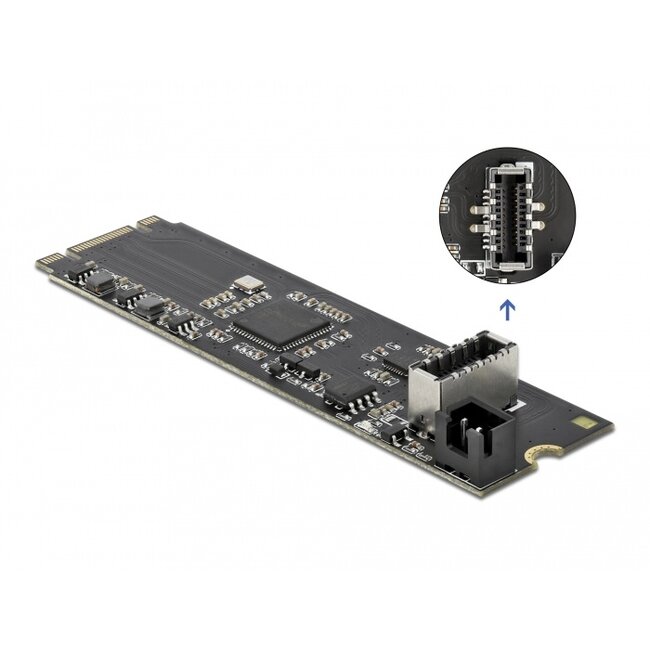

This converter by Delock expands the system by one USB 3.2 key A 20 pin female port. Various cables can be connected to the converter, to provide either one USB Type-C™ or one USB Type-A interface.
Specification• Connectors:
1 x 59 pin M.2 key B+M male >
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) key A 20 pin female
1 x 2 pin power connector
• Chipset: Asmedia ASM3142
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on PCIe
• Bootable
• Data transfer rate up to 10 Gbps
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Electrical power per port: max. 15 watt (5 V / 3 A)
• LED indicator
• Dimensions (LxWxH): ca. 80 x 22 x 9 mm
• Linux Kernel 3.12 or above
• Windows 8.1/8.1-64/10/10-64
• A free M.2 key M or key B slot
Package content
• Converter

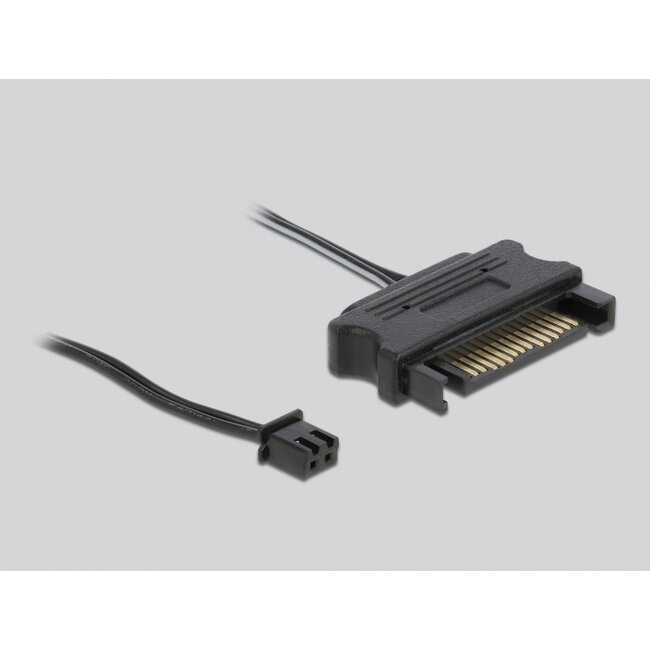

• Power cable 2 pin to SATA, length ca. 30 cm
• Screws
• User manual
