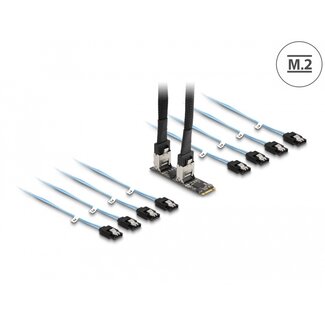

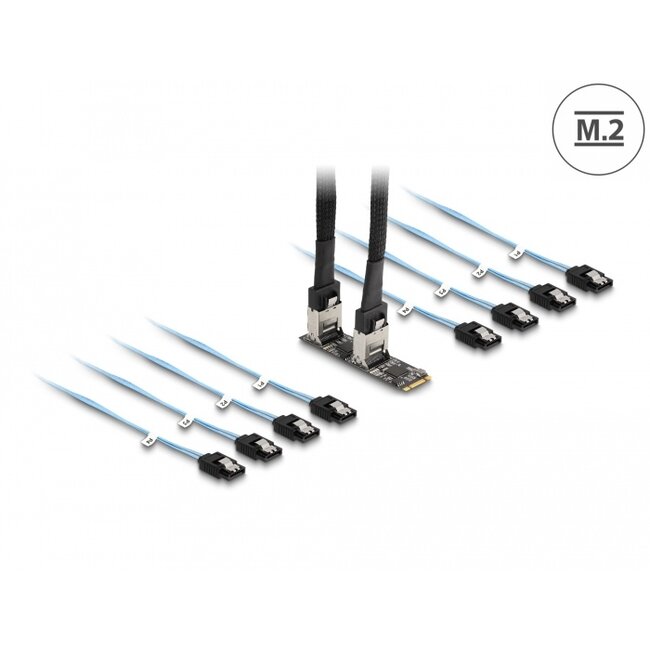

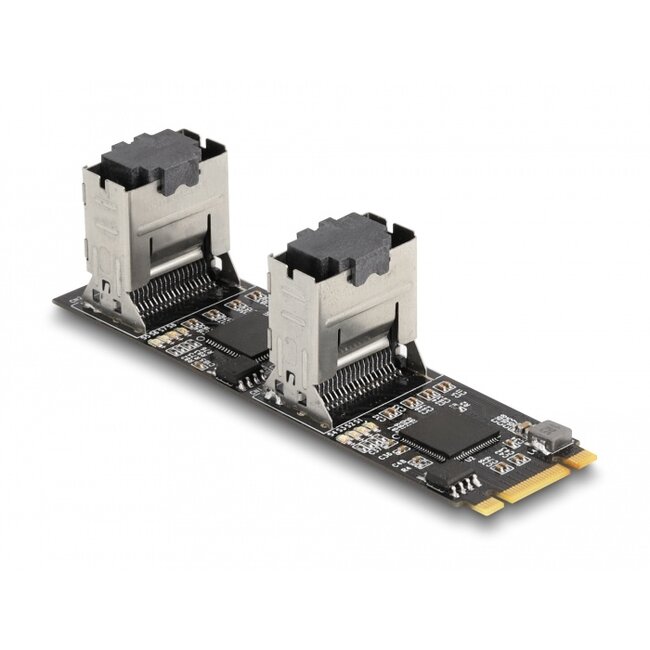

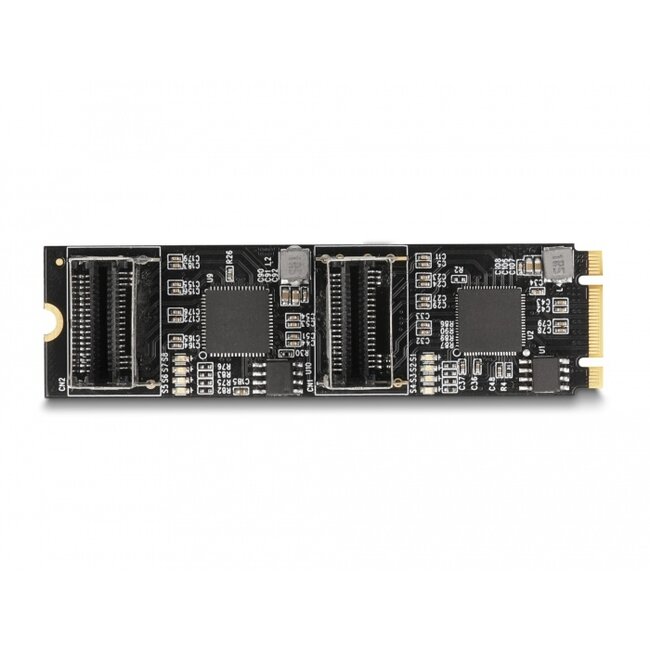

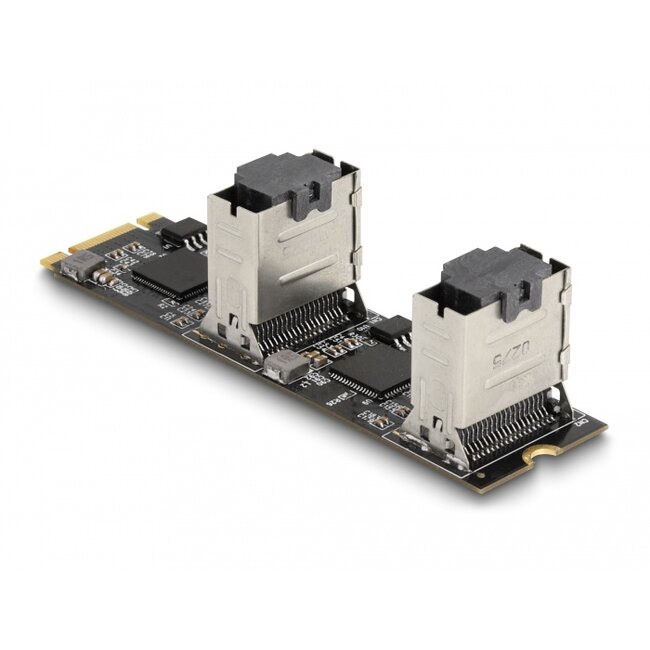

This converter by Delock expands the system by 8 SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the converter.
Specification• Connectors:
1 x M.2 key B+M male
2 x SFF-8087 female
Connection cables:
1 x SFF-8087 male
4 x SATA 6 Gb/s 7 pin receptacle
• Chipset: JMicron JMB585, JMB575
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on PCIe
• 8 x LED indicator for power and access
• Data transfer rate up to 6 Gb/s
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable (CN1)
• Dimensions (LxWxH): ca. 80 x 22 x 21 mm
• Linux Kernel 5.13 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• A free M.2 key M or key B slot
Package content
• Converter
• 2 x Cable SFF-8087 male to 4 x SATA receptacle, length ca. 1 m
• 1 x screw
• User manual
