The LAN Ethernet converter by Delock offers the possibility to integrate RS-485/RS-422 devices and fieldbuses into a LAN network. With its robust housing, the converter is suitable for DIN rail mounting and features reliable surge protection.
Settings on the TCP/IP Ethernet converter
The RS-485 and RS-422 operating modes and the terminating resistors are switched on or off via small switches on the device. Further setup can be conveniently done via the web browser or the included software.
RS-485 echo mode option
In mode RS-485 echo, the converter automatically sends the received data back. This allows you to check whether the sent data can actually reach its destination and has been received correctly.
Special features
The application software under Windows Server 2019, 2022, and 2025 can also be run as a Windows service.
• Connectors:

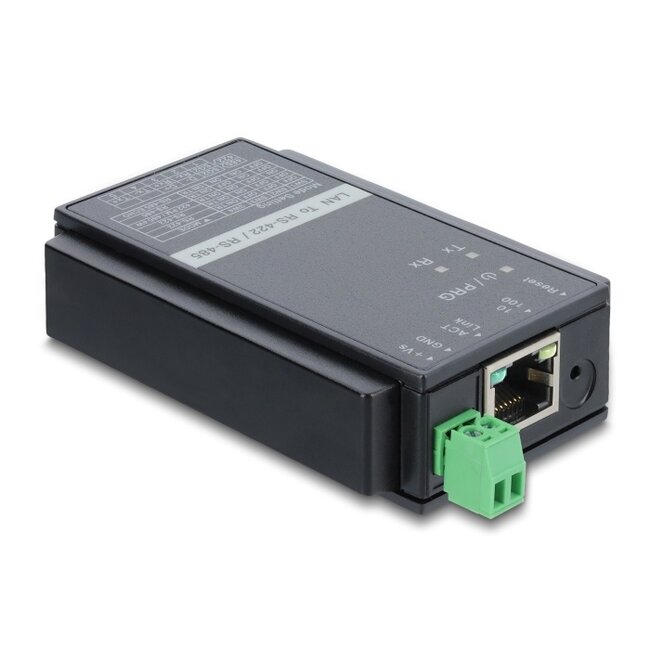

1 x RJ45 jack
Fast Ethernet up to 100 Mb/s

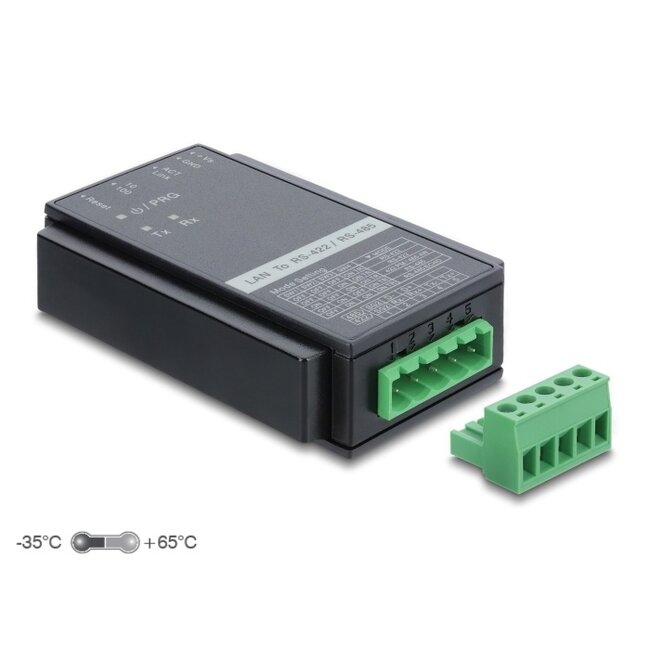

1 x RS-422/485 Terminal Block 5 pin

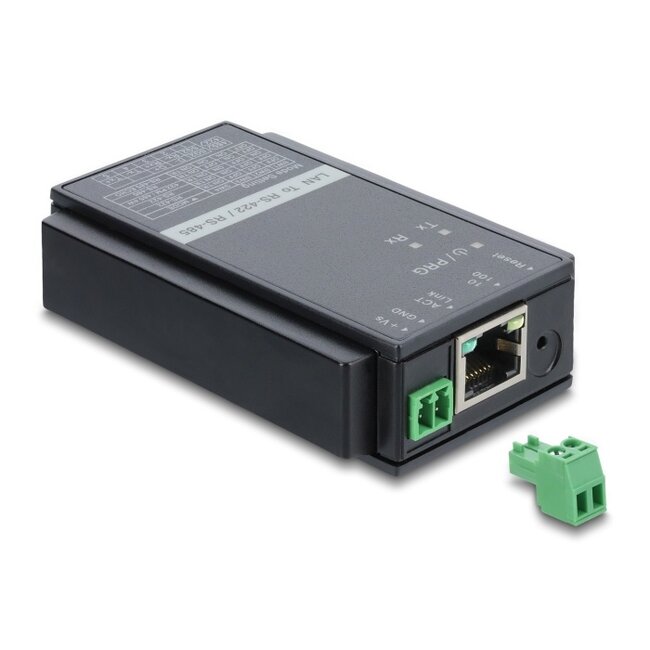

1 x 2 pin terminal power connector
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Virtual COM Port, TCP Server/Client (device to device communication), UDP, HTTP, DHCP, static IP, ICMP, ARP
• RS-422 and RS-485 settings
4 wire RS-422 mode
2 wire RS-485 mode
4 wire RS-422 und RS-485 mode
2 wire RS-485 echo mode
• RS-422/485 termination resistor: 120 Ω
• Stop bits: 1, 2
• Databits: 7, 8
• Parity: even, odd, none, mark, space
• Data transfer rate up to 921.6 Kbps
• LED indicator: power and activity
• ±15 kV ESD protection on all signal pins
• Surge protection 600 W on all RS-485/RS-422 signal pins
• Reset button
• Power supply: 10 - 30 V DC
• Current consumption: ca. 105 mA @ 24.0 V
• 1 x mounting for 35 mm DIN rail
• Operating temperature: -35 °C ~ 65 °C
• Storage temperature: -40 °C ~ 85 °C
• Relative humidity: 5 - 95 % (non condensing)
• Housing: plastic
• Weight: ca. 90 g
• Dimensions (LxWxH): ca. 104 x 54 x 23 mm
Specification of power connector
• 1 x 2 pin terminal block
• Windows 10/10-64/11
• Windows Server 2019/2022/2025
Package content
• Converter

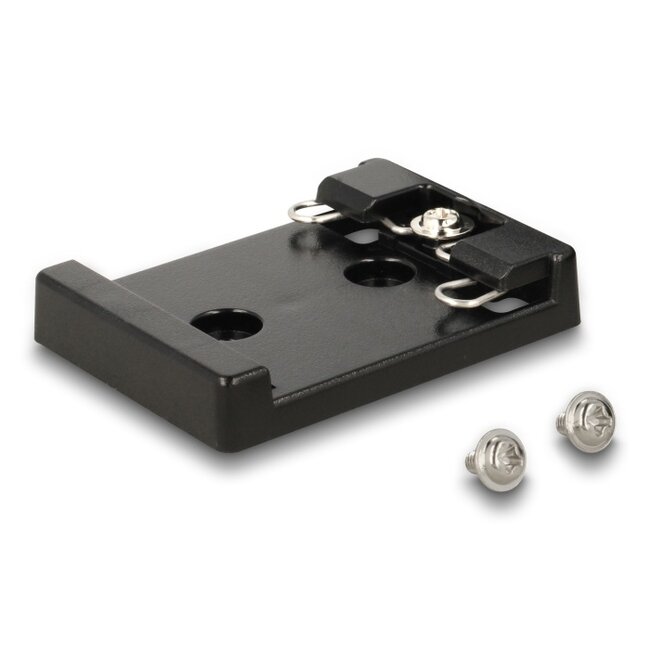

• Bracket for DIN rail (mounting kit)
• Driver CD
• User manual
