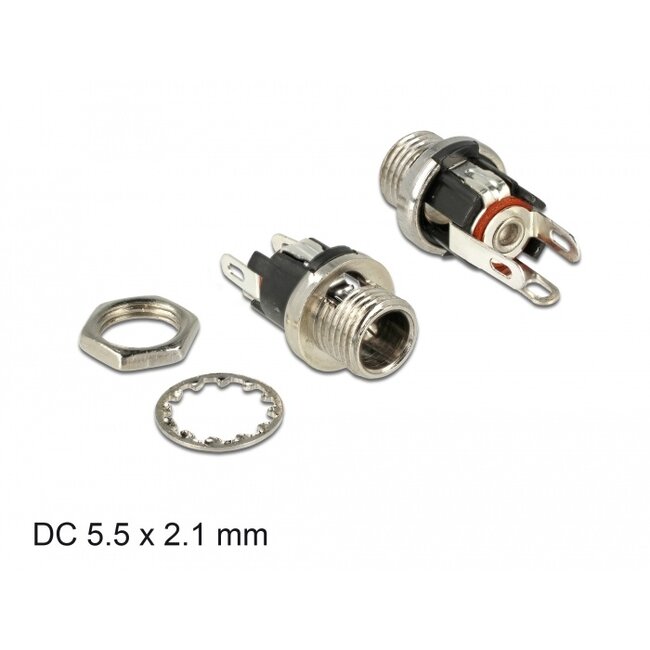

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification• Connectors:
1 x DC 5.5 x 2.1 x 9.5 mm female >
3 x solder connection
• Operating voltage: 16 V DC
• Current: max. 3 A
• Plastic shell: PBT
• Pin: copper nickel plated
• Thread type: M8*P0.75
• Mounting depth: ca. 15.5 mm
• Visible height when installed: ca. 5.7 mm
Specification of power connector
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
depth: ca. 9.5 mm
• DC female bulkhead
