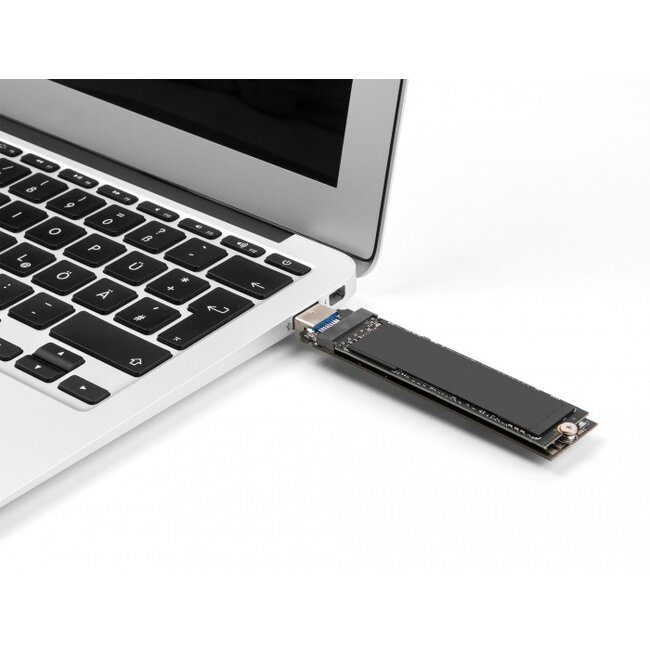

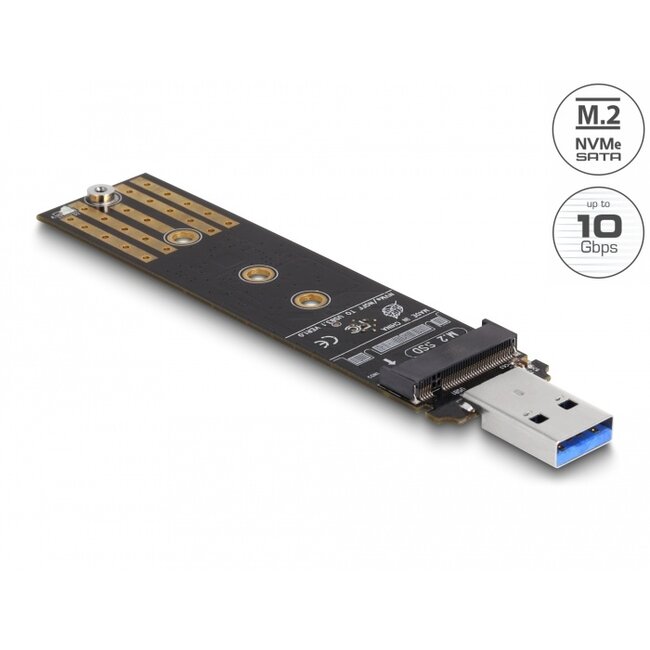

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop.
Combo converter
The big advantage of this Delock M.2 converter is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the converter. The memory is automatically recognized by the chipset and can then be used.
Ideal test equipment
Due to the USB-A connector and the direct installation of the SSD on the board, without enclosure, the Delock converter is most suitable as test equipment.
• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A male
1 x 67 pin M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on SATA or PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Bootable
• Dimensions (LxWxH): ca. 110 x 22 x 6 mm
• Plug & Play
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.13 or above
• Mac OS 12.3.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• M.2 converter

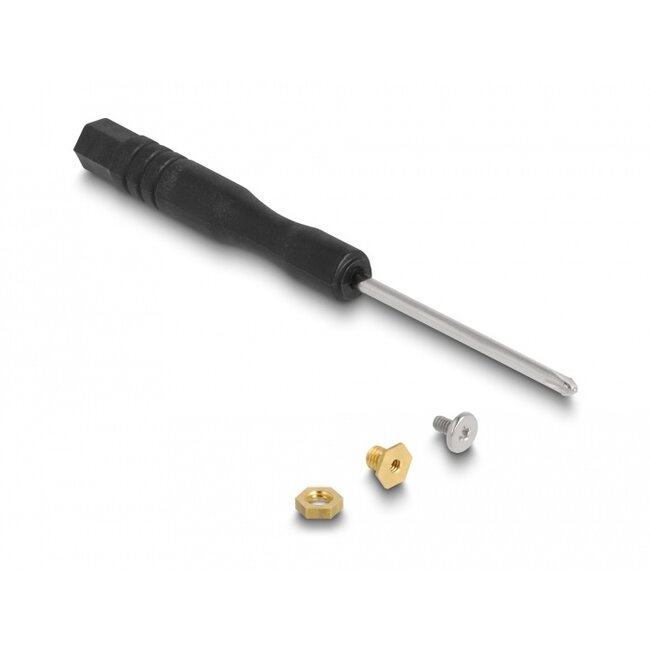

• Mounting material
• Screwdriver
• User manual
