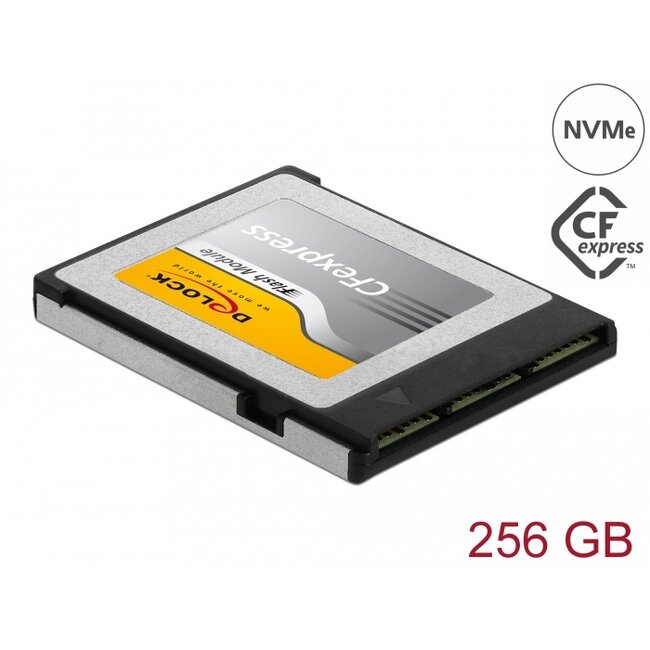

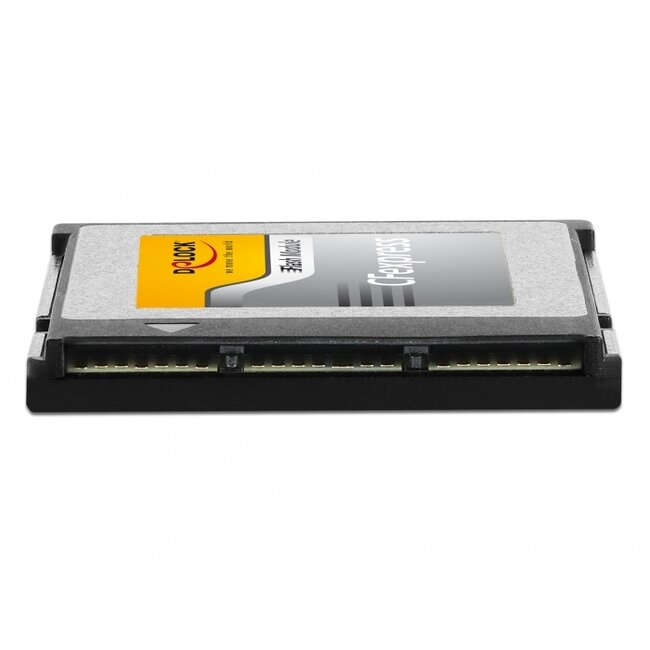

This flash module by Delock is a memory in CFexpress 1.0 (CFX) type B format. The memory card is particularly suitable for photo and video applications, as the PCI Express standard allows large data to be exchanged very fast. In addition, the PCIe resp. NVMe standard and the low latencies make the card suitable for industrial applications in which removable storage media are required.
Specification• Connector:
1 x CFexpress 1.0
• Capacity: 256 GB
• Interface: PCIe x2 Rev. 3.0
• Form factor: type B
• Flash type: TLC
• Maximum read speed: 1550 MB/s
• Maximum write speed: 900 MB/s
• MTBF: 1.500.000 hours
• Power consumption: max. 2.9 W
• Vibration: 20G
• Shock: 1500G
• Storage temperature: -40 °C ~ 85 °C
• Operating temperature: 0 °C ~ 70 °C
• Supports NVM Express (NVMe)
• Supports TRIM
• Supports S.M.A.R.T.
• Dimensions (LxWxH): ca. 38.5 x 29.6 x 3.8 mm
• A free CFexpress slot
Package content
• CFexpress memory card
