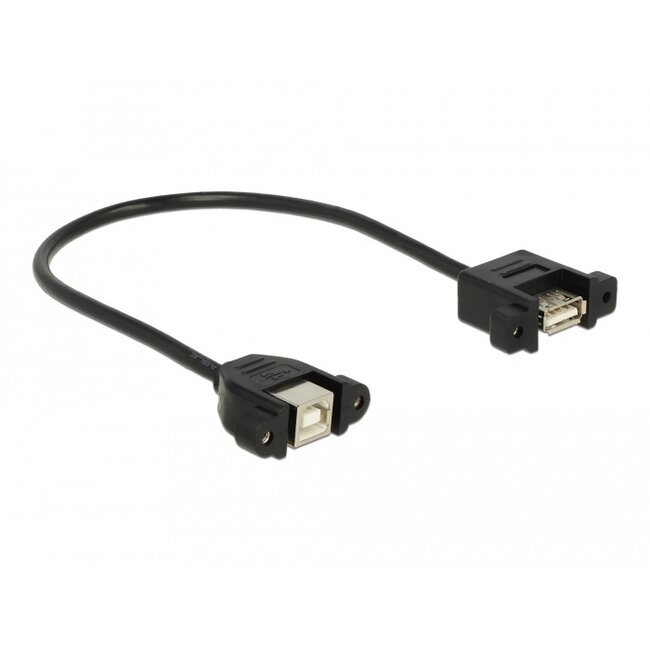

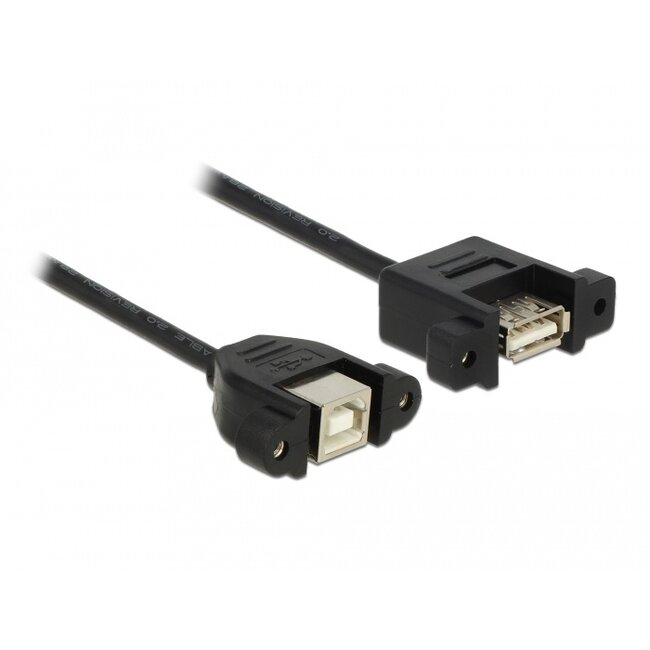

This cable by Delock can be used to extend a USB 2.0 connection and to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position.
Specification• Connectors:
1 x USB 2.0 Type-B female with screw nuts for installation >
1 x USB 2.0 Type-A female with screw nuts for installation
• Screw type: #4-40 UNC

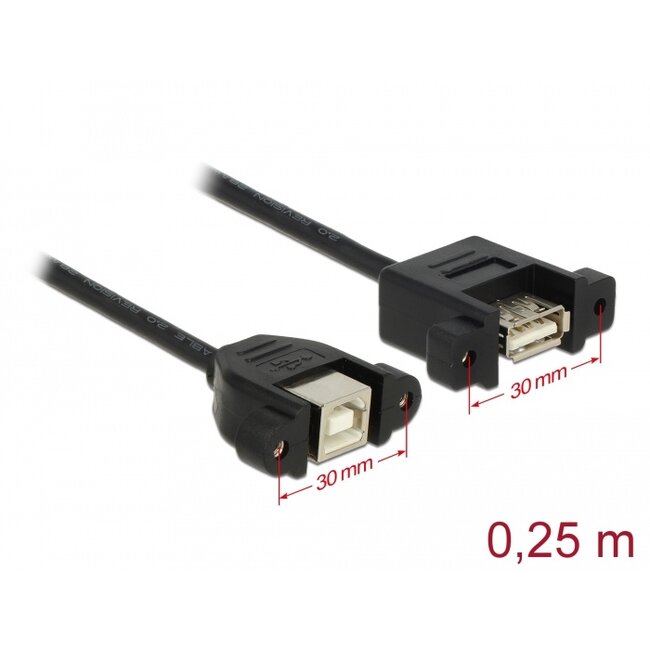

• Mounting hole Type-B ca. 12 x 11 mm, screw hole pitch ca. 30 mm
• Mounting hole Type-A ca. 15 x 8 mm, screw hole pitch ca. 30 mm
• Data transfer rate up to 480 Mbps
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Colour: black
• Length incl. connectors: ca. 25 cm
• A free USB port
Package content
• USB panel-mount cable
• 4 screws
