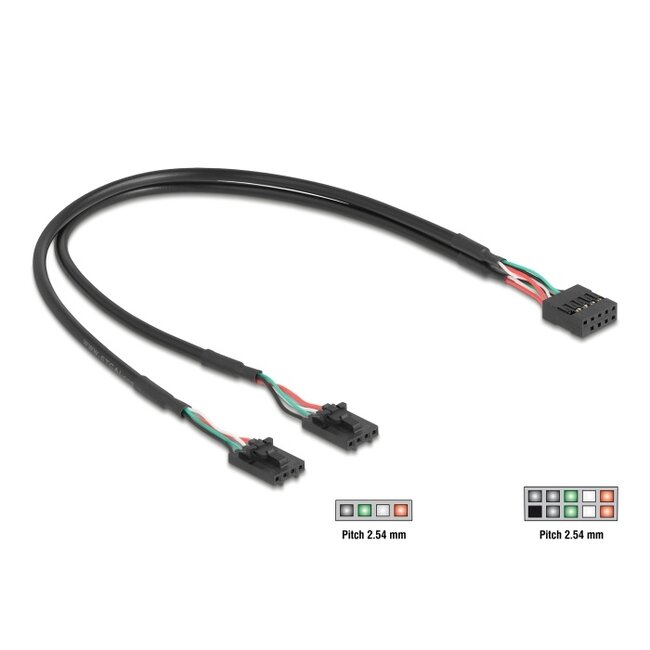

This cable allows the connection between devices or modules equipped with a USB pin header and a motherboard. The cable can be used e.g. to connect two pin header hubs to one pin header connector on the motherboard.
Specification• Connectors:
2 x 4 pin USB 2.0 pin header female
1 x 10 pin USB 2.0 pin header (2 x 4 pins connected)
• Cable gauge:
28 AWG data line
24 AWG power line
• Pin 10 = Key
• Pitch: 2.54 mm
• Data transfer rate up to 480 Mbps
• Colour: black
• Length incl. connectors: ca. 30 cm
