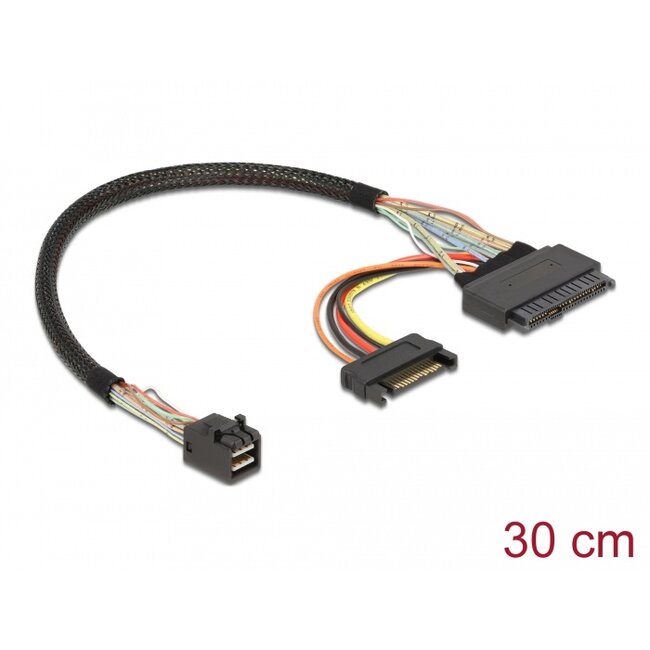

The cable enables the connection between e.g. an SSD with U.2 interface and an M.2 NGFF converter equipped with a SFF-8643 port.
Specification• Connectors:
1 x SFF-8643 male >
1 x U.2 SFF-8639 female
1 x SATA 15 pin power plug
• Data transfer rate up to 2 GB/s (PCI Express rev. 2.0) resp. 4 GB/s (PCI Express rev. 3.0)
• Cable gauge:
30 + 32 AWG data line
18 + 24 AWG power line
• Supports NVM Express (NVMe)
• Colour: black
• Length without connectors:
Data cable ca. 30 cm
power cable ca. 10 cm
• A free SFF-8643 interface
• SSD with U.2 port
Package content
• U.2 SFF-8639 cable
