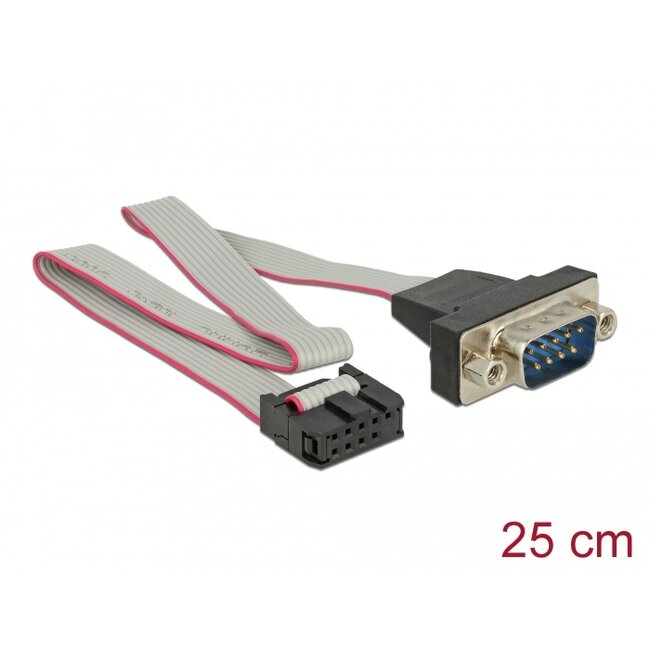

This serial RS-232 cable by Delock offers the possibility to connect an internal standard RS-232 connector to the outside of the computer housing. The serial DB9 connector is suitable for mini PCs, industrial computers, brackets etc.

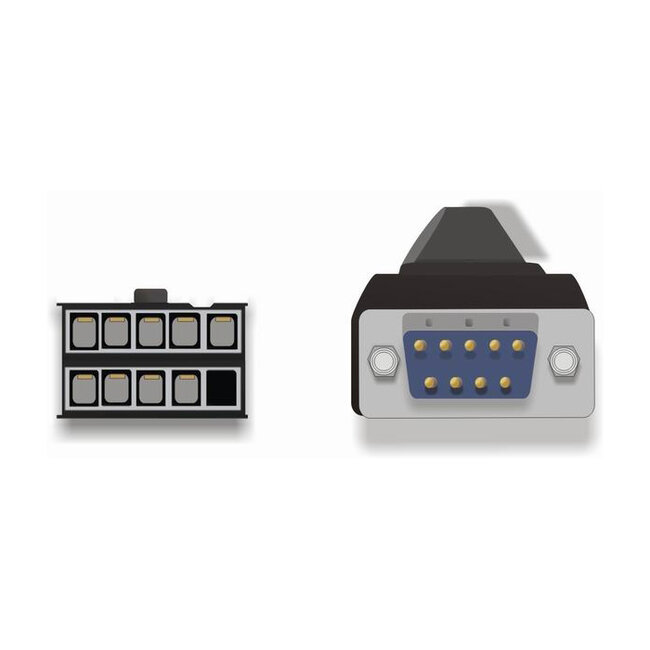

Specification• Connectors:
internal: 1 x 9 pin COM port pin header female
external: 1 x serial RS-232 DB9 male with nuts
• Pitch: 2.54 mm
• Cable length: ca. 25 cm
• Cable colour: grey

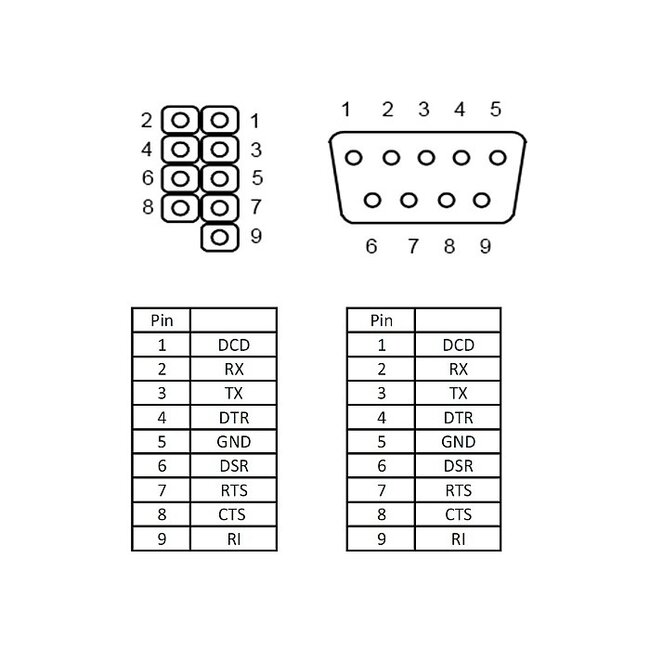

• Pin layout serial > pin header port
1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8, 9-9
• A free COM port internal
• PC with one free DB9 case opening
Package content
• Cable with 1 x COM port
