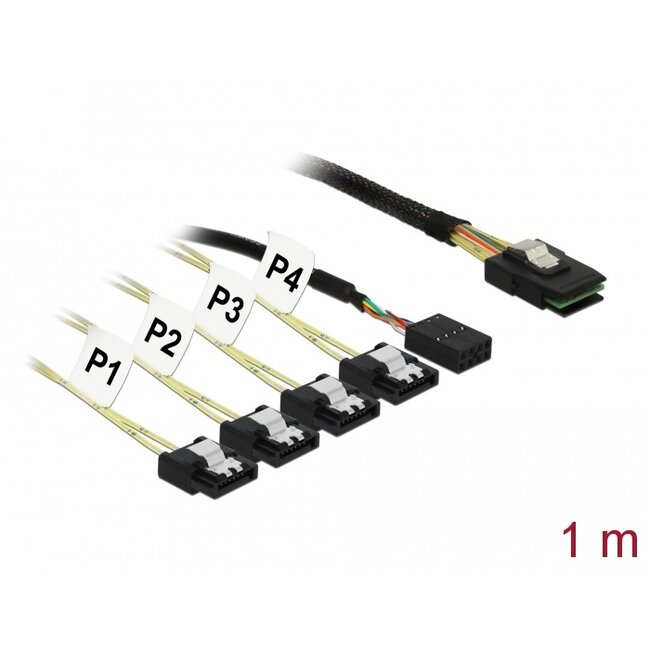

This reverse breakout cable by Delock can be used to connect internal SAS devices, e.g. an HDD backplane with Mini SAS connector to a controller with 4 SATA ports. The metal clips on the SATA connectors provide a snap-in connection.
Note
ā¢ It is not possible to use SAS hard disks with a SATA controller.
ā¢ To connect a SAS controller with SFF-8087 to 4 SATA hard disks, you can use
Delock item 83313 (forward breakout).
ā¢ Connector:
host:
4 x SATA 7 pin >
device:
1 x Mini SAS SFF-8087 male
1 x 8 pin sideband pin header female
ā¢ Pin assignment: reverse breakout
ā¢ Serial Attached SCSI (SAS) specification
ā¢ Length incl. connector: ca. 1 m
ā¢ A free Mini SAS or SATA interface
Package content
ā¢ Mini SAS cable
