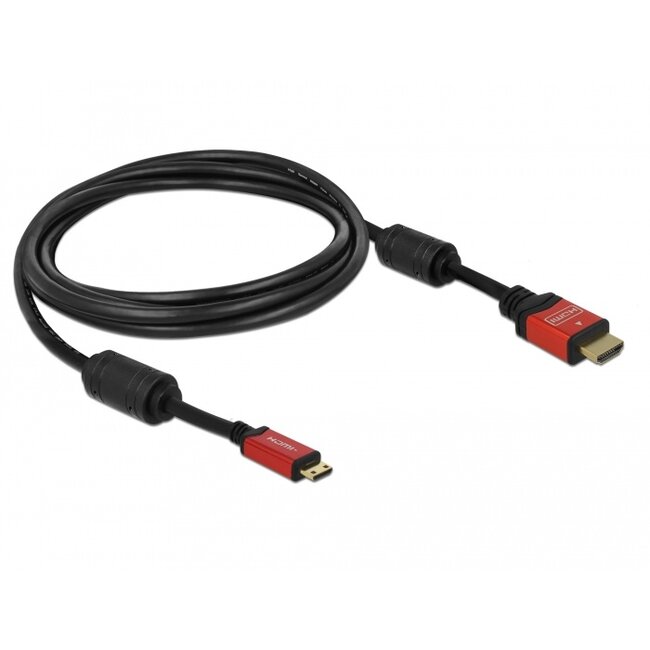

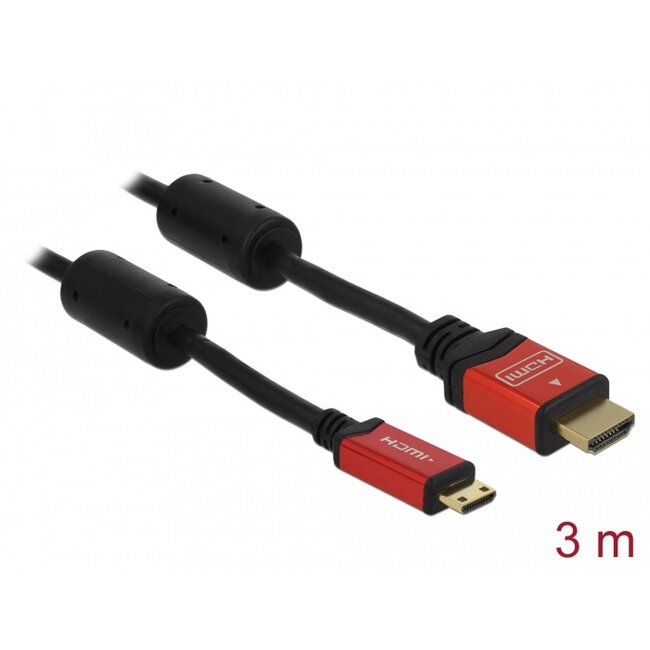

Description This High Speed HDMI with Ethernet cable by Delock enables the connection between a camera or tablet with Mini HDMI interface and a monitor or TV with an HDMI-A port. It stands out due to its slim diameter and its short connectors. The cable also supports 4K Ultra HD resolutions, provided that all connected devices are compatible.
Specification • Connector:
High Speed HDMI-A 19 pin male >
High Speed HDMI Mini-C 19 pin male
• High Speed HDMI with Ethernet (HEC) specification
• 2 x ferrite core
• Cable gauge: 30 AWG
• Cable diameter: ca. 5.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connector
• Metal housing
• Transfer of audio and video signals
• Data transfer rate up to 10.2 Gb/s
• Resolution up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• 3D support up to 1080p in two video streams with each 60 picture per second
• Up to 120 Hz refresh rate
• Contains Audio Return Channel (ARC)
• Uses new advanced colour space for presentation of digital pictures
• Supports Dolby® TrueHD and DTS-HD Master Audio™
• More lively and natural colours
• Colour:
Cable: black
Connector: red
• Cable length: ca. 3 m
System requirements • A free HDMI-A interface
• Device with a HDMI Mini-C interface
Package content
• HDMI cable
