This cable connector set by Delock includes various cable lugs and cable ferrules that allow an easy connection of wires and strands. The cable lugs are plugged onto open, uninsulated cable ends. Then, the wires can be connected to each other or to the corresponding connection points via the ring, fork, pin or plug version.

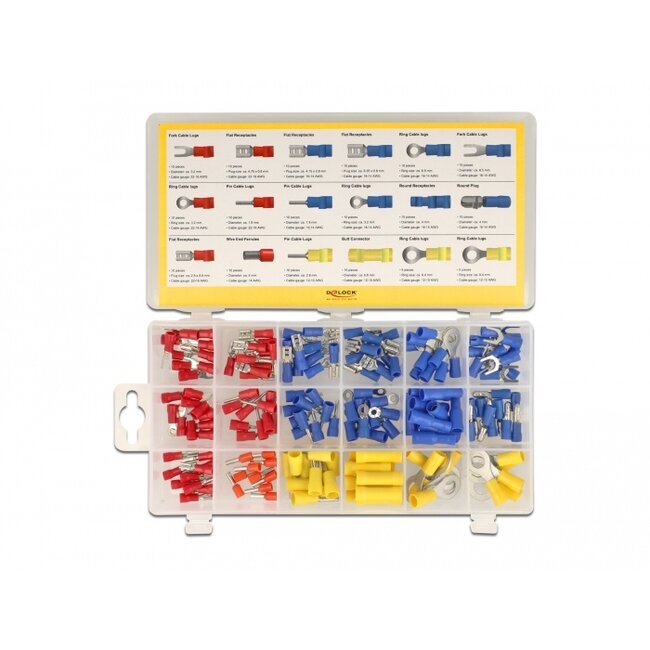

Specification• Content: 170 pieces

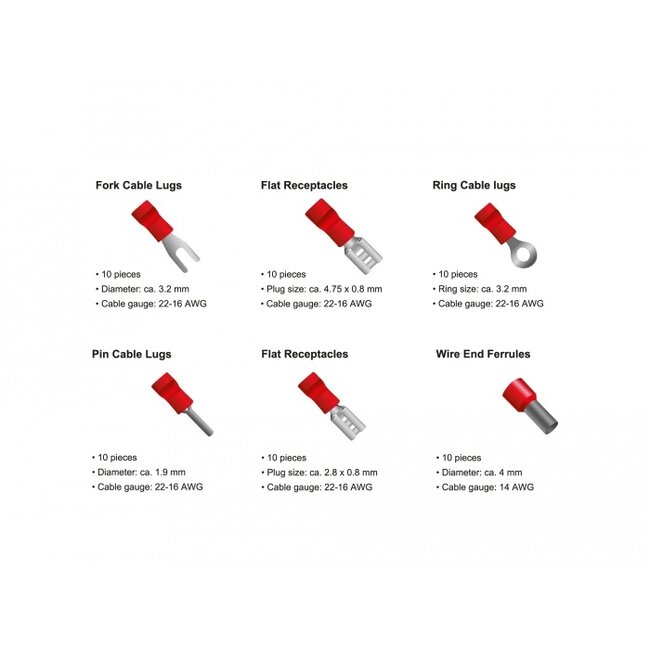

• 10 x fork cable lugs red
Diameter: ca. 3.2 mm
Cable gauge: 22-16 AWG

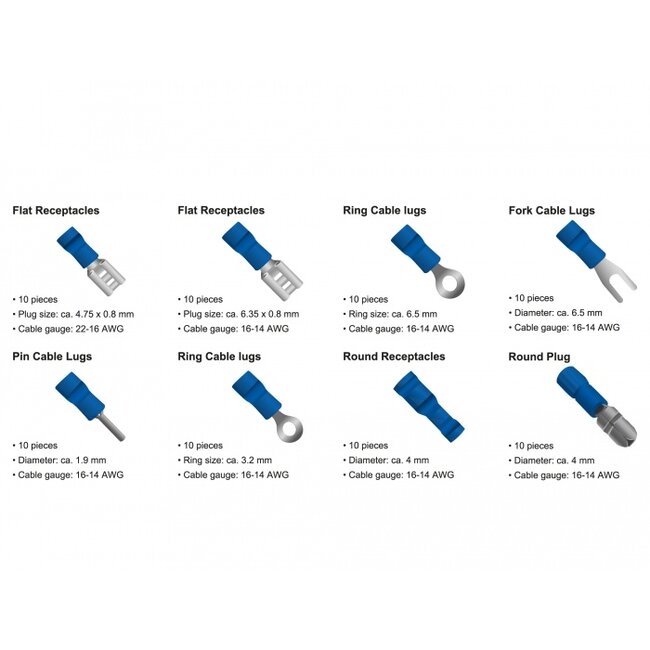

• 10 x flat receptacles red
Plug size: 4.75 x 0.8 mm
Cable gauge: 22-16 AWG
• 10 x flat receptacles blue
Plug size: 4.75 x 0.8 mm
Cable gauge: 22-16 AWG
• 10 x flat receptacles blue
Plug size: 6.35 x 0.8 mm
Cable gauge: 16-14 AWG
• 10 x ring cable lugs blue
Ring size: 6.5 mm
Cable gauge: 16-14 AWG
• 10 x fork cable lugs blue
Diameter: ca. 6.5 mm
Cable gauge: 16-14 AWG
• 10 x ring cable lugs red
Ring size: 3.2 mm
Cable gauge: 22-16 AWG
• 10 x pin cable lugs red
Diameter: ca. 1.9 mm
Cable gauge: 22-16 AWG
• 10 x pin cable lugs blue
Diameter: ca. 1.9 mm
Cable gauge: 16-14 AWG
• 10 x ring cable lugs blue
Ring size: 3.2 mm
Cable gauge: 16-14 AWG
• 10 x round receptacles blue
Diameter: ca. 4 mm
Cable gauge: 16-14 AWG
• 10 x round plug blue
Diameter: ca. 4 mm
Cable gauge: 16-14 AWG
• 10 x flat receptacles red
Plug size: 2.8 x 0.8 mm
Cable gauge: 22-16 AWG
• 10 x wire end ferrules red
Diameter: ca. 4 mm
Cable gauge: 14 AWG

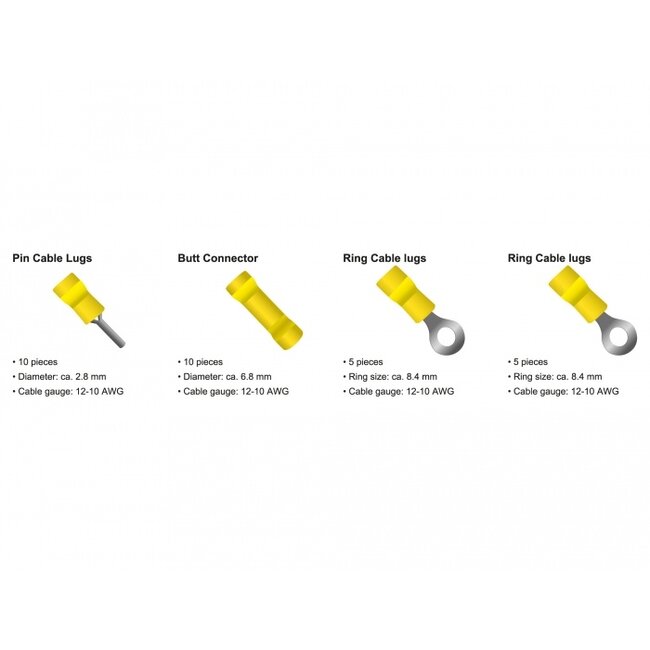

• 10 x pin cable lugs yellow
Diameter: ca. 2.8 mm
Cable gauge: 12-10 AWG
• 10 x butt connector yellow
Diameter: ca. 6.8 mm
Cable gauge: 12-10 AWG
• 10 x ring cable lugs yellow
Ring size: 8.4 mm
Cable gauge: 12-10 AWG

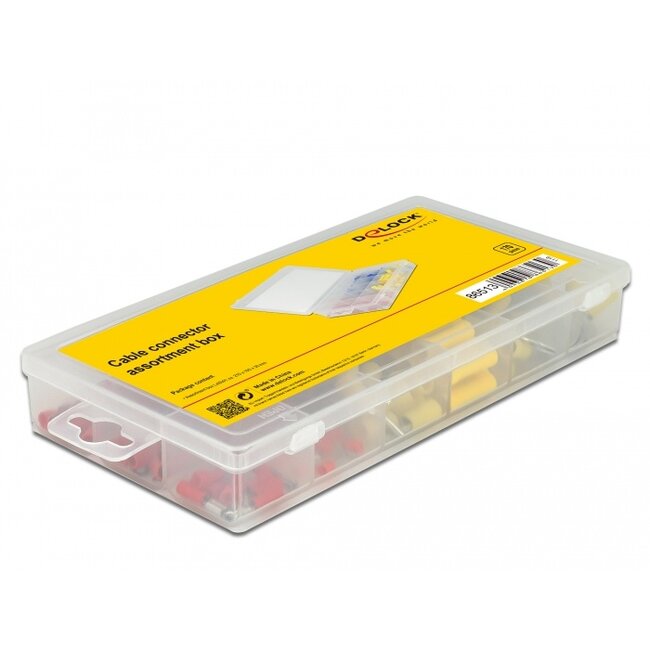

• Box dimensions (LxWxH): ca. 210 x 105 x 30 mm

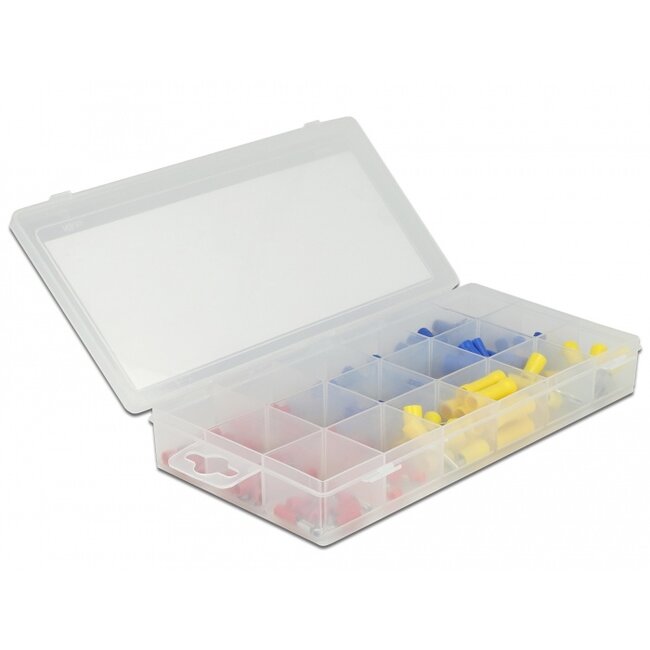

• Assortment box
