Description

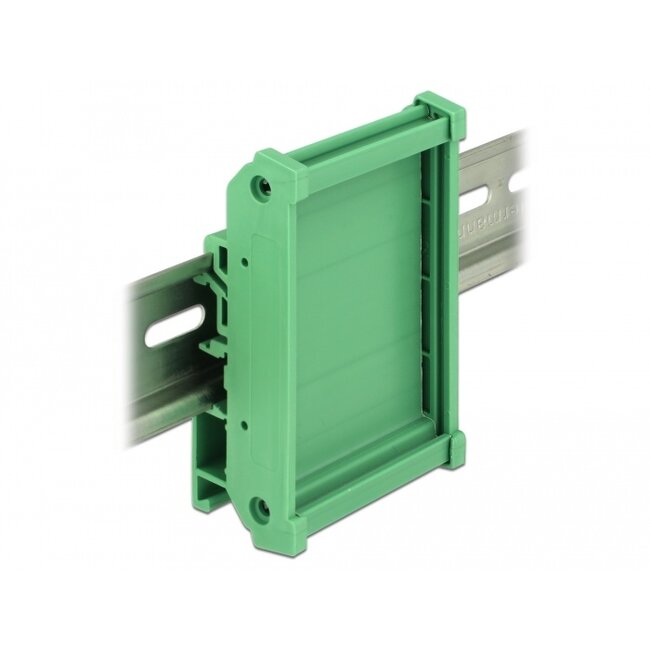

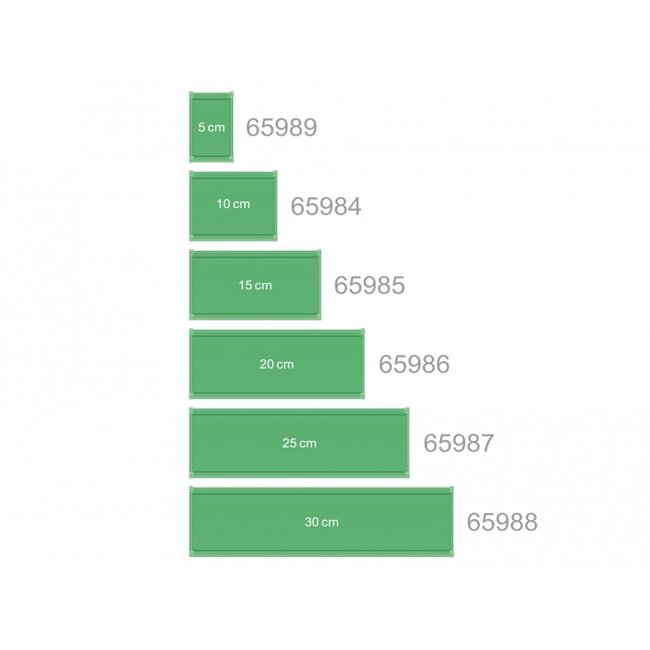

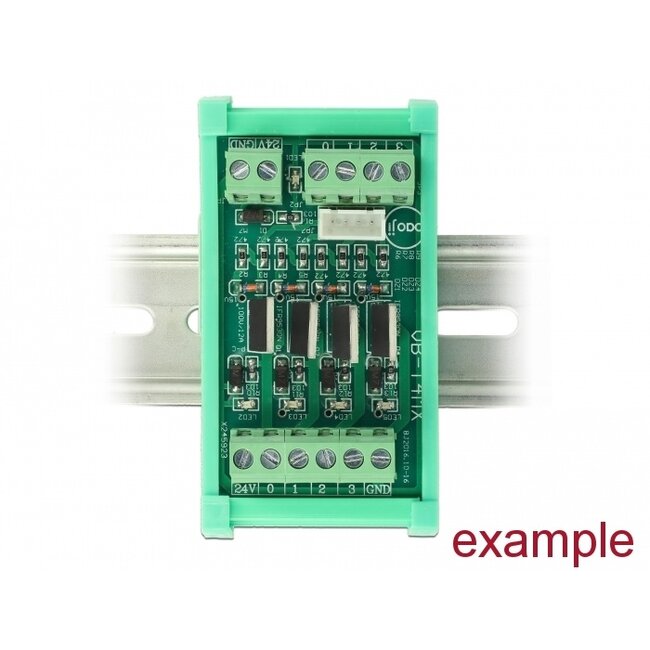

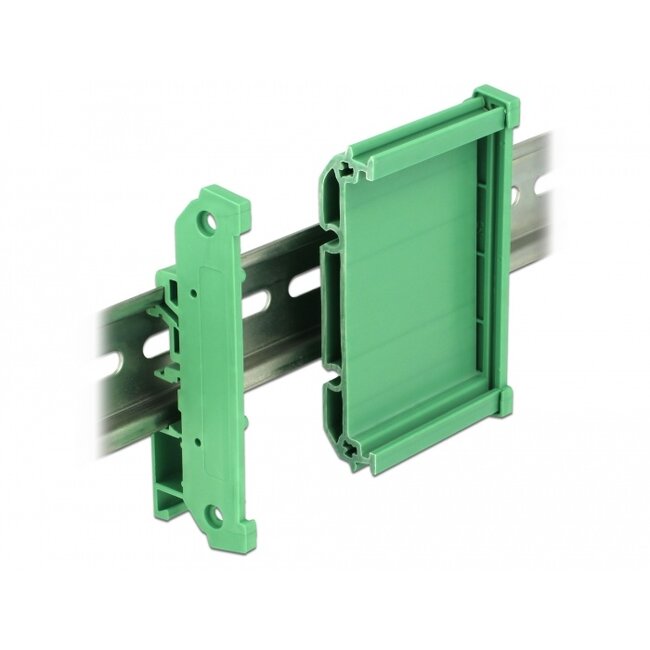

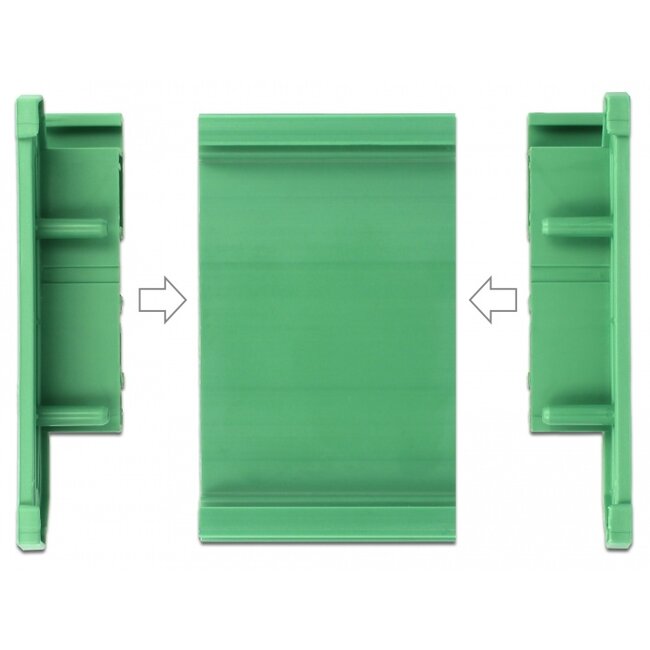

This board holder by Delock can be used to hold circuit boards with a width of 72 mm, to mount them on a 15 mm or 35 mm DIN rail. The board holder can be shortened individually in different lengths. After shortening, the two end caps can be put on again.
Board Holder (72 mm) for DIN Rail
Note
2 end caps are included. Additional end caps are optionally available by Delock. See item number: 66064.

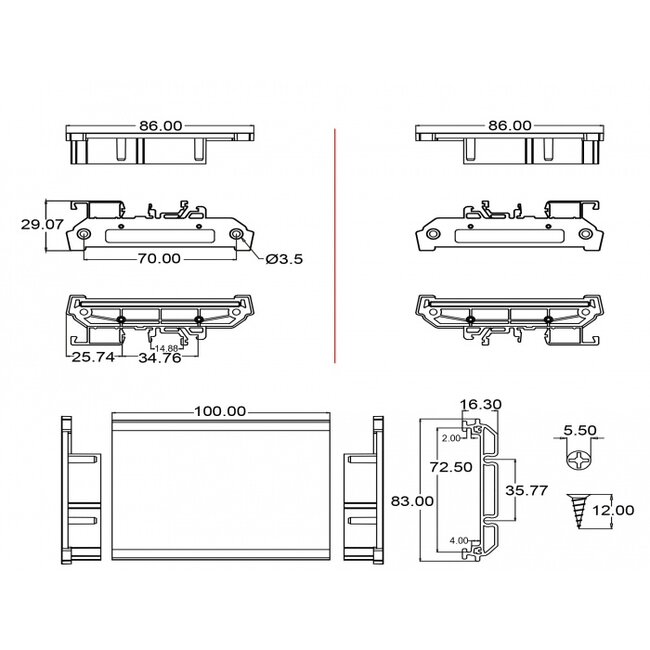

Specification
⢠Suitable for boards with a width of 72 mm
⢠Environmental temperature: -10 °C ~ 70 °C
⢠DIN rail mounting: 15 mm and 35 mm
⢠4 x mounting holes
⢠Mounting hole diameter: 3.5 mm
⢠Pitch of screw hole: ca. 70 mm
⢠Material: plastic
⢠Colour: green
System requirements
⢠15 mm or 35 mm DIN rail
Package content
⢠1 x board holder

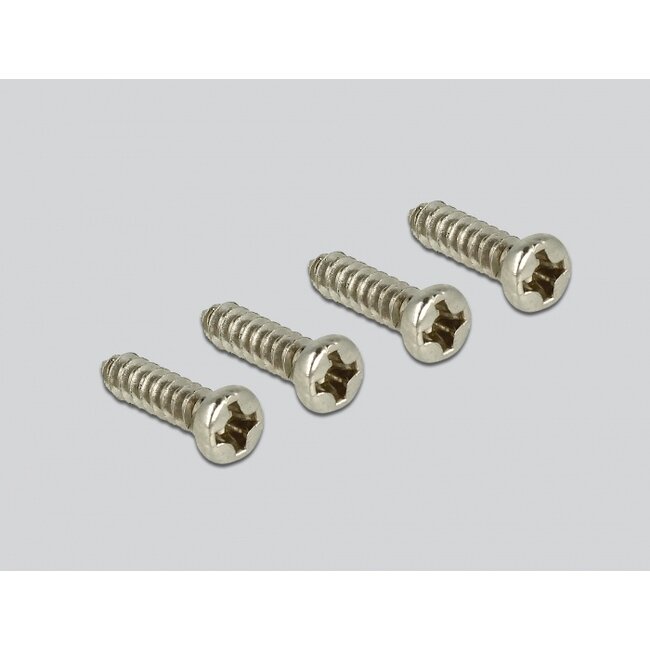

⢠4 x screw

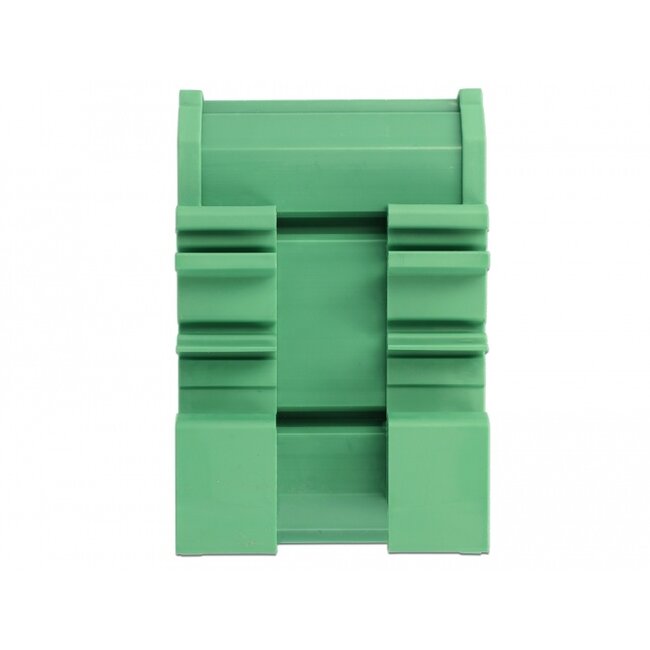

⢠2 x end cap
