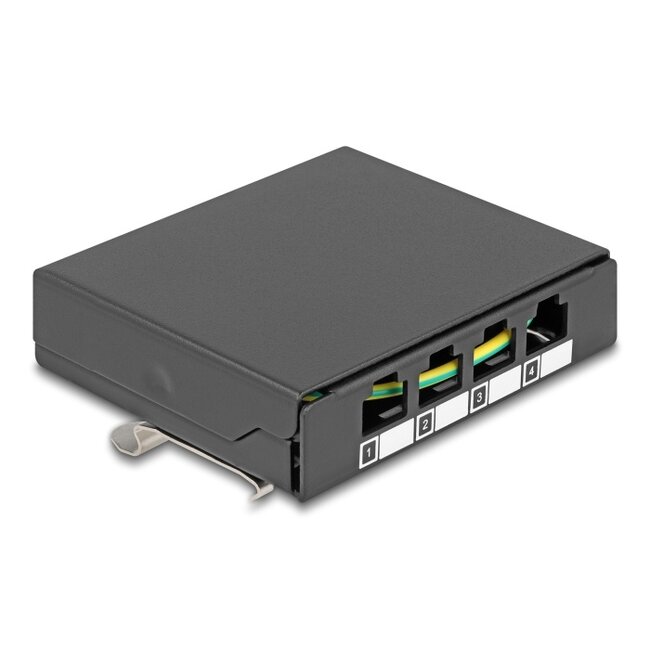

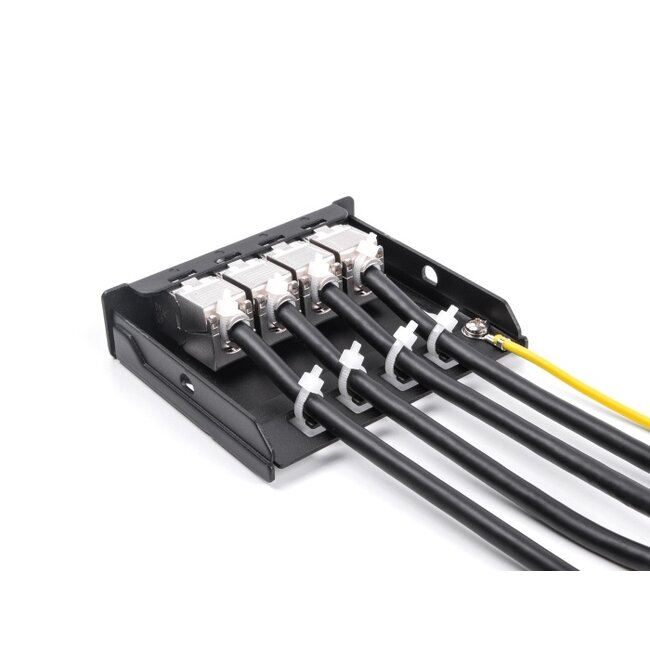

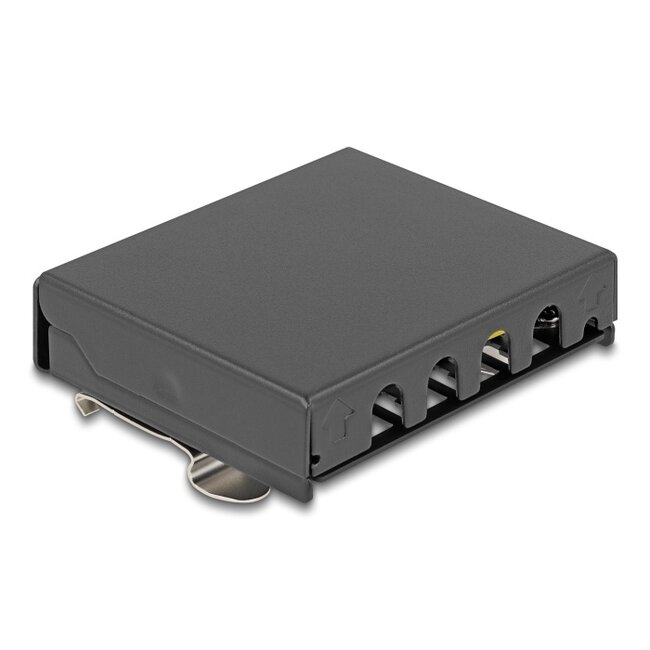

The empty housing by Delock is suitable for easy snap-in mounting of 4 Keystone RJ-modules.
Versatile mounting on a table, wall or DIN rail

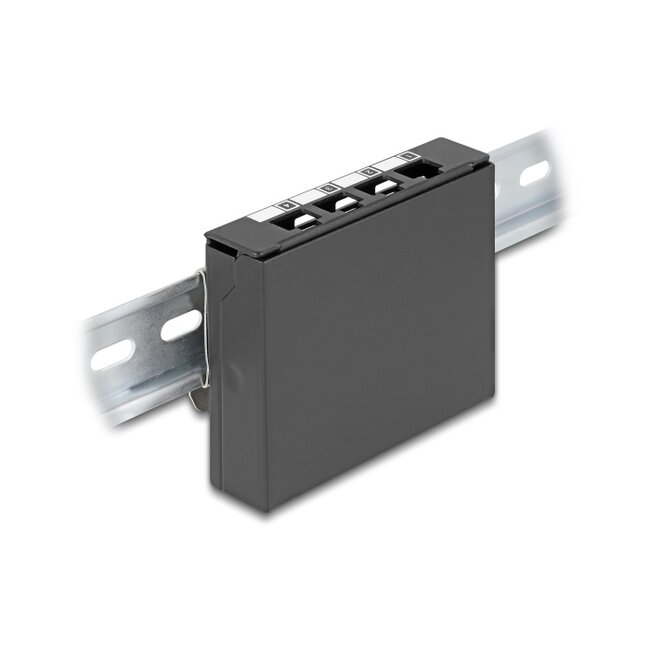

The housing can be mounted either on a table, on the wall or on 35 mm wide DIN rails. The clips included in the scope of delivery enable simple DIN rail mounting, ideal for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, e.g. in small technical rooms, distribution boxes or anywhere where no rack is available.
Metal housing
The robust black metal housing ensures durable and professional installation.
Please Note
The blank panel is exclusively compatible with Keystone modules featuring RJ connectors and a one-sided latch. Due to its design, only Keystone modules with a maximum width of 16.2 mm and a maximum height of 21.0 mm can be used. Suitable modules are 86205, 87856, 87898, 90794, 90795, 90799, 90802.
• 4 Keystone ports
• Suitable for Keystone RJ modules
• Mounting options:
Desktop mounting
Wall mounting (with drill holes)
DIN rail mounting 35 mm (clips included)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): ca. 93 x 81 x 24 mm
• Blank panel

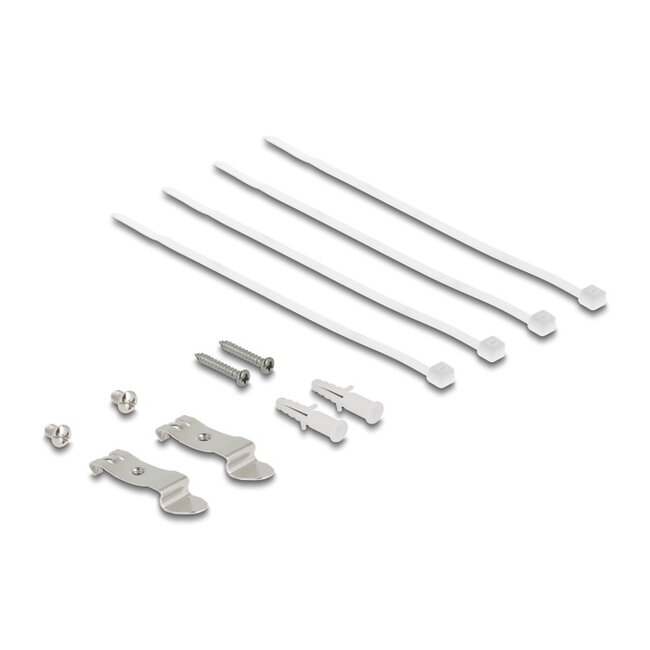

• Ground wire
• 2 x DIN rail clip
• 2 x screw M5 x 6 mm
• 2 x screw 3.7 x 19.4 mm
• 2 x dowel 5.5 x 27.1 mm
• 4 x cable tie 2.5 x 100 mm
