This barcode laser scanner by Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. Up to 100 scans per second of all common 1D barcode types can be precisely captured, even at long distances.
Transmission via Bluetooth, USB or 2.4 GHz

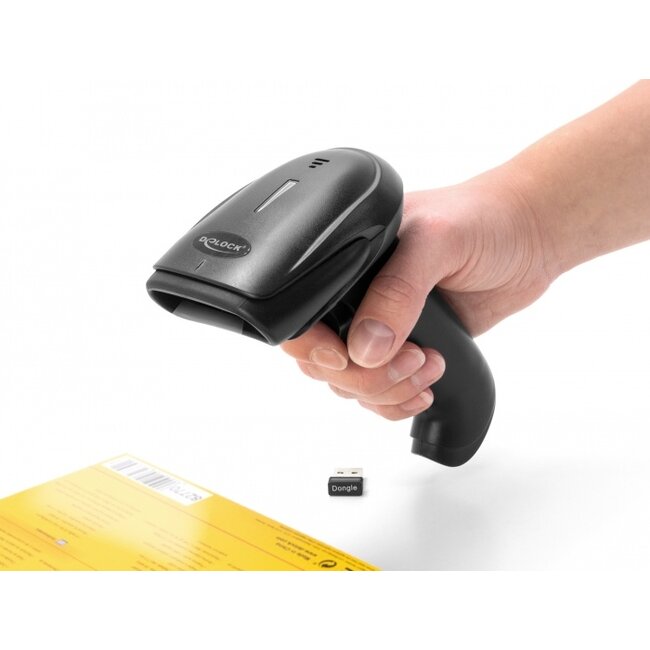

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

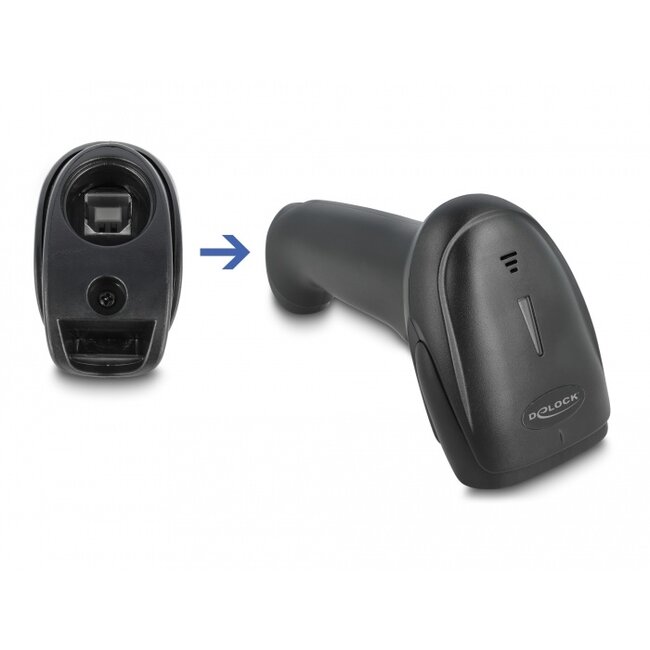

• Connector: 1 x USB 2.0 Type-B female
• Rechargeable battery: Li-Polymer battery 1800 mAh
• Decoding chip: ARM Cortex 32 Bit
• Resolution: 752 x 480
• Trigger: scan button
• Reading distance: ca. 185 mm to 300 mm
• Reading accuracy: 3 mil
• Scan type: laser class 1, 570 nm, <0,5 mW
• Scan rate: up to 100 scans per second
• Scan angle: 55°
• Input voltage: 5 V
• Current consumption:
operation: max. 100 mA
standby: max. 30 mA
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -10 °C ~ 50 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 190 g
• Dimensions (LxWxH): ca. 170 x 90 x 70 mm
• Cable length without connectors: ca. 1.5 m
• Scancodes:
Code 128
Code 39
Code2of5 Interleaved
EAN-8 / EAN-13
ISBN - 13
• Android 11.0 or above
• iPad Air (2020)
• iPad Pro (2018)
• Mac OS 12.3.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Barcode scanner

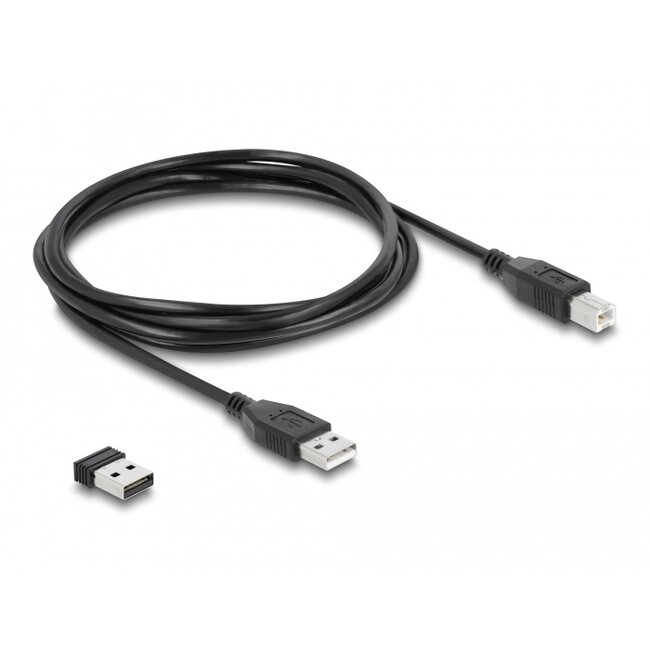

• USB 2.4 GHz dongle
• USB charging cable
• User manual
