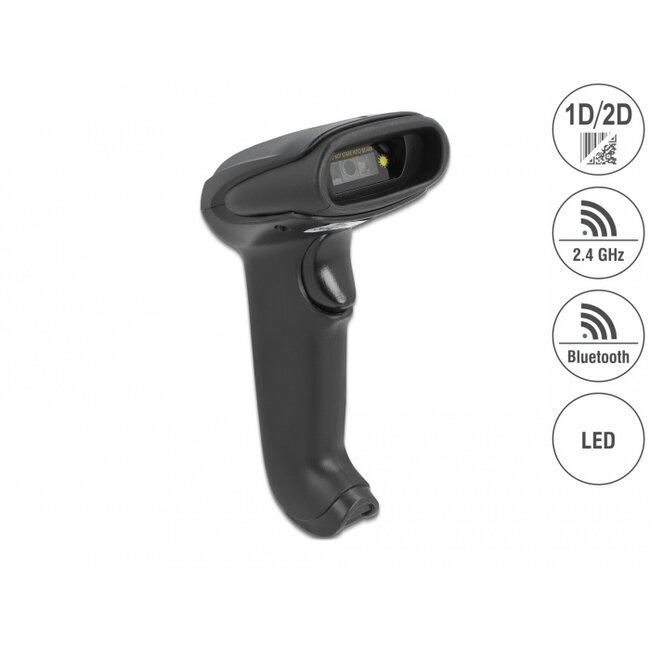

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.

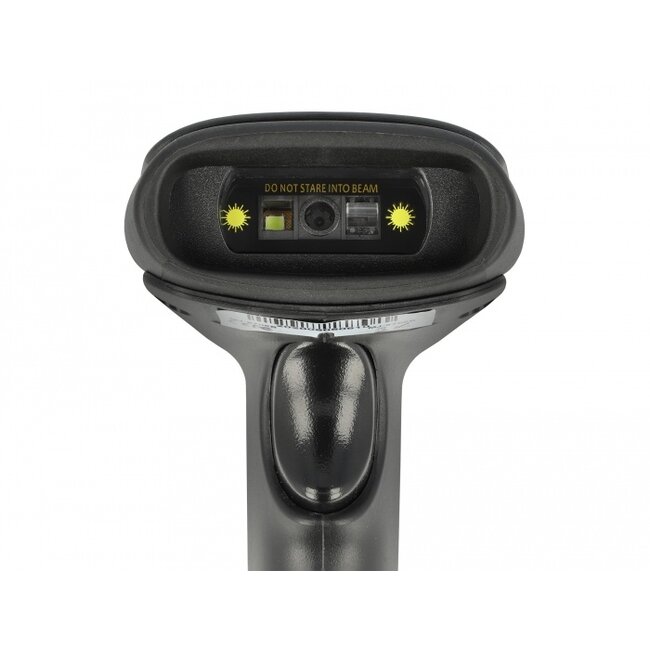

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
Note
Not suitable for Swiss QR Codes.
• Connector: 1 x USB 2.0 Type-B female
• Decoding chip: ARM Cortex 32 Bit
• Rechargeable battery: Li-Polymer battery 1800 mAh
• Resolution: 752 x 480
• Trigger: scan button
• Reading distance: ca. 60 mm to 300 mm
• Reading accuracy: 5 mil
• Range: up to 10 m
• Internal memory: 16 MB
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: linear CMOS image sensor
• Scan rate: up to 30 scans per second
• Scan angle: 55°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
operation: max. 100 mA
standby: max. 30 mA
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -10 °C ~ 50 °C
• Relative humidity: 20 - 85 % (non condensing)
• Colour: black
• Weight: ca. 190 g
• Dimensions (LxWxH): ca. 170 x 90 x 70 mm
• Cable length without connectors: ca. 1.5 m
• Bluetooth standard V 4.0
• 2.4 GHz
• Scancodes:
Codabar
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro QR
PDF417
QR Code
• Android 9.0 or above
• iPad Pro (2018)
• Mac OS 10.15.6 or above
• Bluetooth standard 4.0 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port for dongle

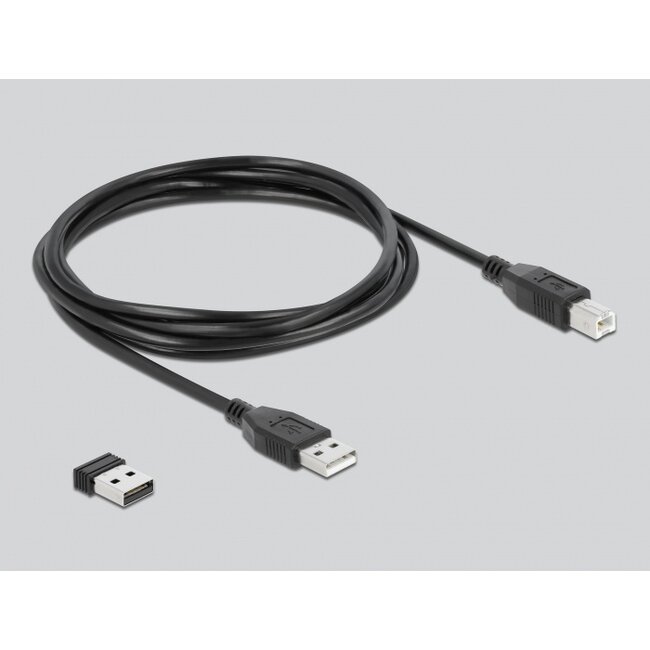

Package content
• Barcode scanner
• USB 2.4 GHz dongle
• USB charging cable
• User manual
