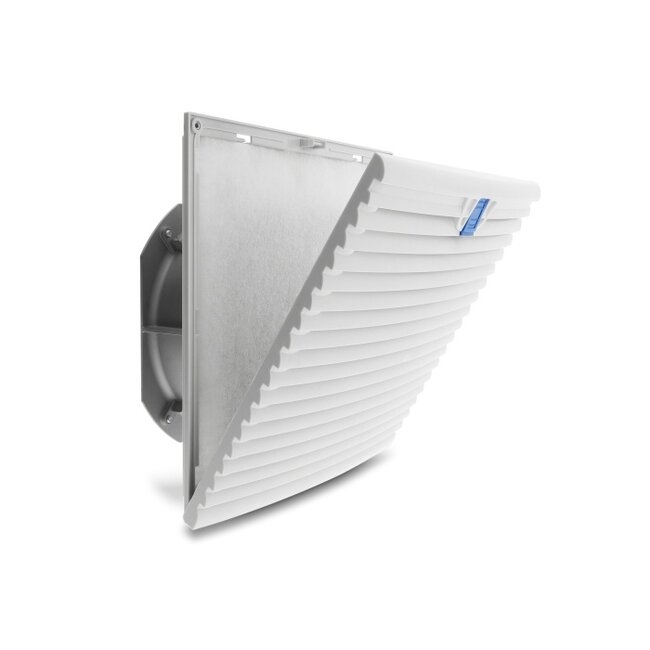

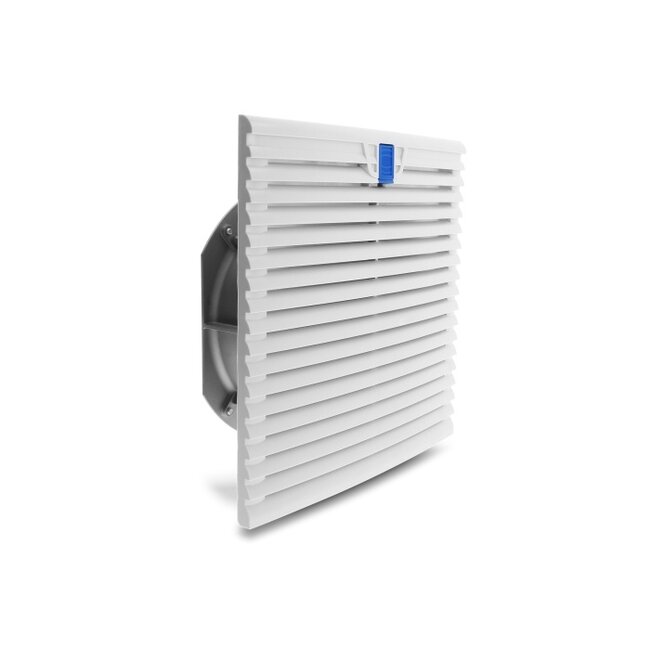

The axial fan by Delock is a reliable and powerful solution for ventilation and cooling of control cabinets, electronic enclosures and industrial applications.

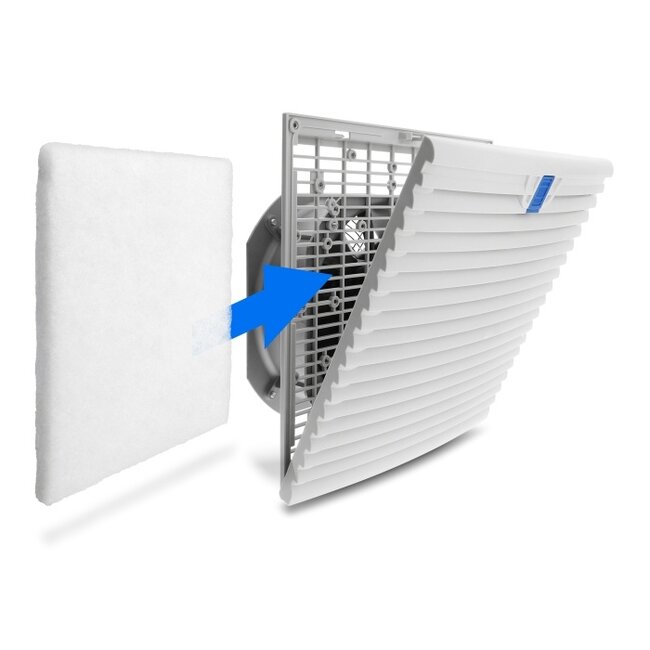

Filter attachment with clip
The integrated filter attachment with clip enables quick installation and tool-free filter replacement, and effectively protects electronic components from dust, dirt and particles.
• Connector: 1 x 2 pin connection terminal
• Fan type: axial
• Bearing type: plain bearing
• Fan speed (RPM): 2450 rpm
• Noise level: 62 - 65 dBA
• Air flow free blowing: 550 - 600 m³/h
• Air flow with filter: 380 - 410 m³/h
• Air direction: Air-In (standard)
• Rated voltage: AC 220 - 240 V
• Rated current: 0.29 - 0.37 A
• Rated power: 65.0 - 80.0 W
• Input AC frequency: 50 / 60 Hz

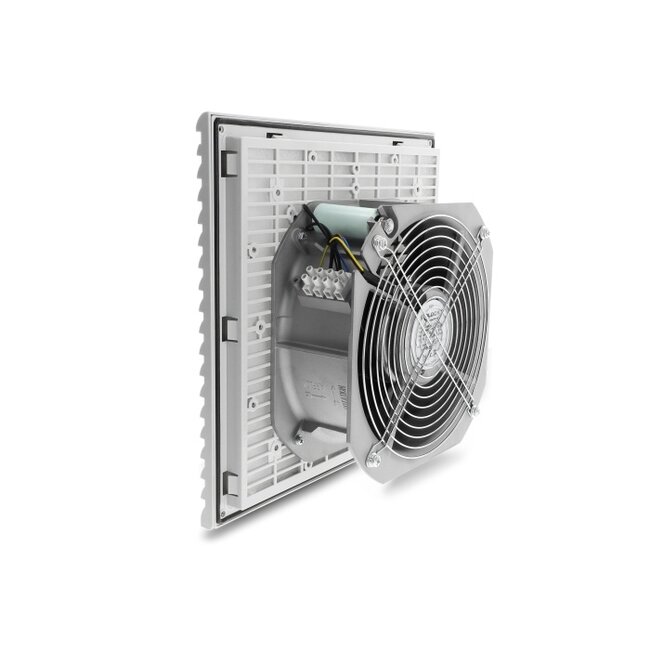

• Mounting type: screw mounting
• Mounting hole diameter: ca. 4.5 mm
• Pitch of screw hole: ca. 302.0 mm
• Motor: self-starting shaded pole motor
• Material:
Fan: aluminium alloy
Filter: plastic
fan blades: metal
• Colour:
Fan: white
Filter: white / blue
fan blades: black
• Operating temperature: -30 °C ~ 70 °C
• Dimensions (LxWxH):
Fan: ca. 260 x 225 x 80 mm
incl. filter attachment: ca. 323 x 323 x 127 mm
• AC-axial fan

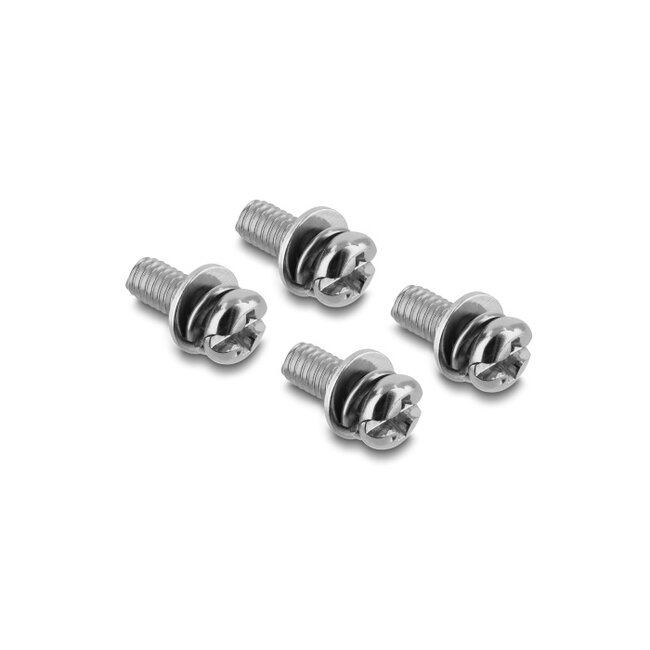

• Mounting material
• User manual
