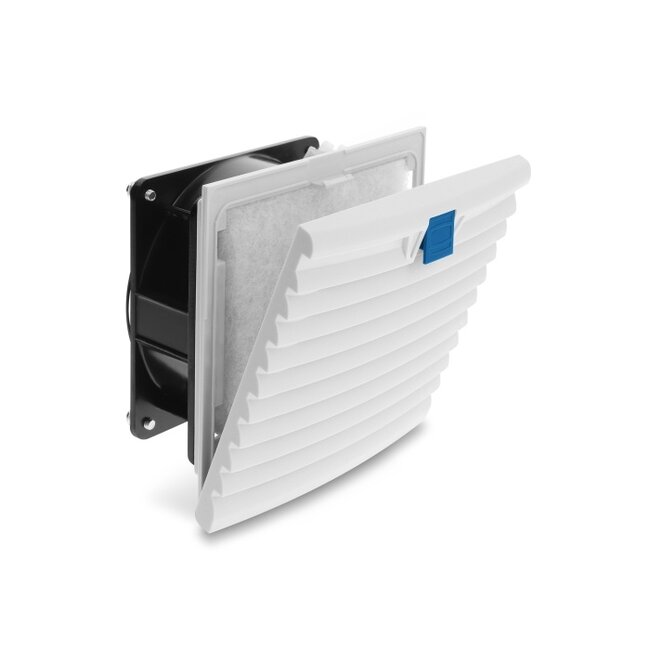

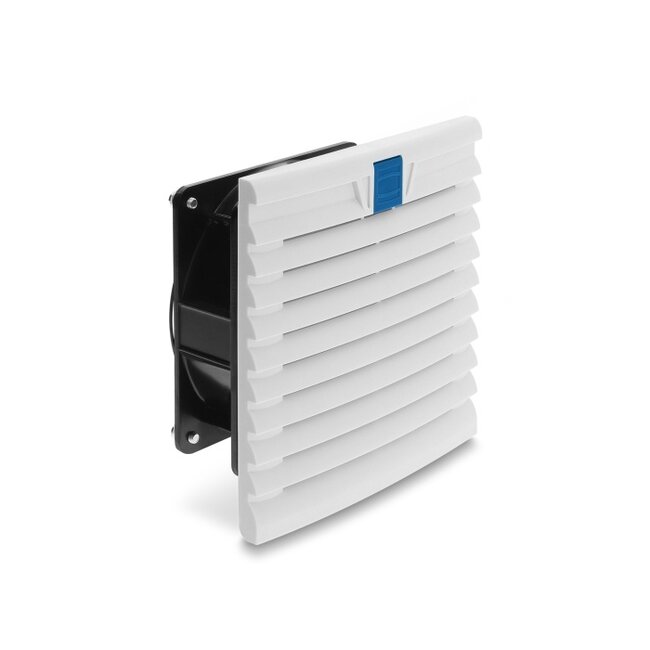

The axial fan by Delock is a reliable and powerful solution for ventilation and cooling of control cabinets, electronic enclosures and industrial applications.

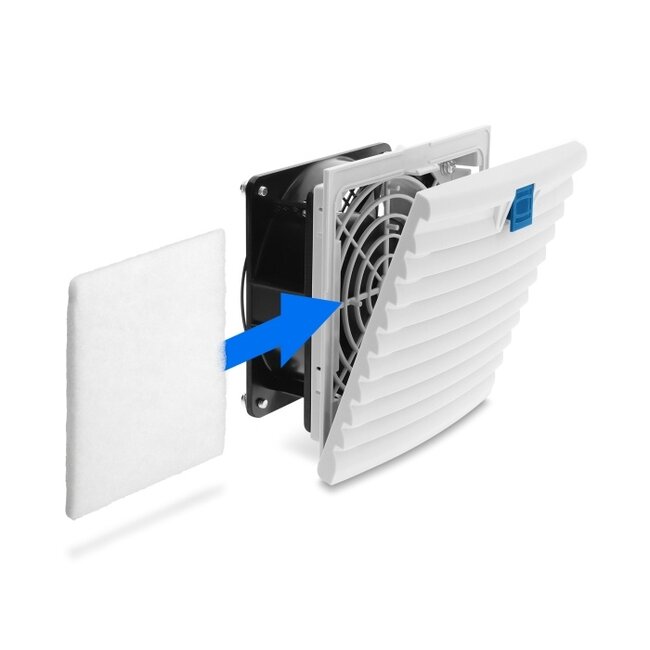

Filter attachment with clip
The integrated filter attachment with clip enables quick installation and tool-free filter replacement, and effectively protects electronic components from dust, dirt and particles.
• Connector: 1 x 2 pin connection terminal
• Fan type: axial
• Bearing type: plain bearing
• Fan speed (RPM): 2500 rpm
• Noise level: 41 - 42 dBA
• Air flow free blowing: 65 - 85 m³/h
• Air flow with filter: 55 - 70 m³/h
• Air direction: Air-In (standard)
• Rated voltage: AC 220 - 240 V
• Rated current: 0.11 - 0.12 A
• Rated power: 18.0 - 19.0 W
• Input AC frequency: 50 / 60 Hz

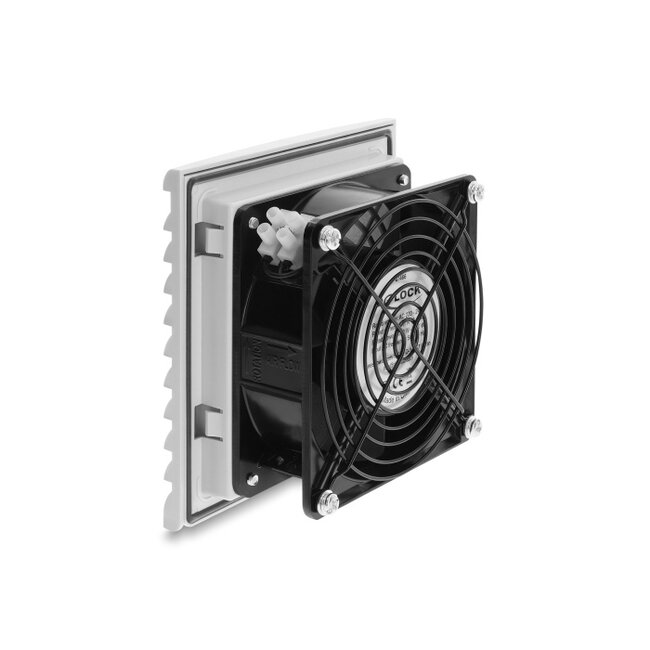

• Mounting type: screw mounting
• Mounting hole diameter: ca. 3.5 mm
• Pitch of screw hole: ca. 124.0 mm
• Motor: self-starting shaded pole motor
• Material:
Fan: metal
Filter: plastic
fan blades: plastic
• Colour:
Fan: black
Filter: white / blue
fan blades: black
• Operating temperature: -30 °C ~ 70 °C
• Dimensions (LxWxH):
Fan: ca. 120 x 120 x 38 mm
incl. filter attachment: ca. 148 x 148 x 68 mm
• AC-axial fan
• User manual
