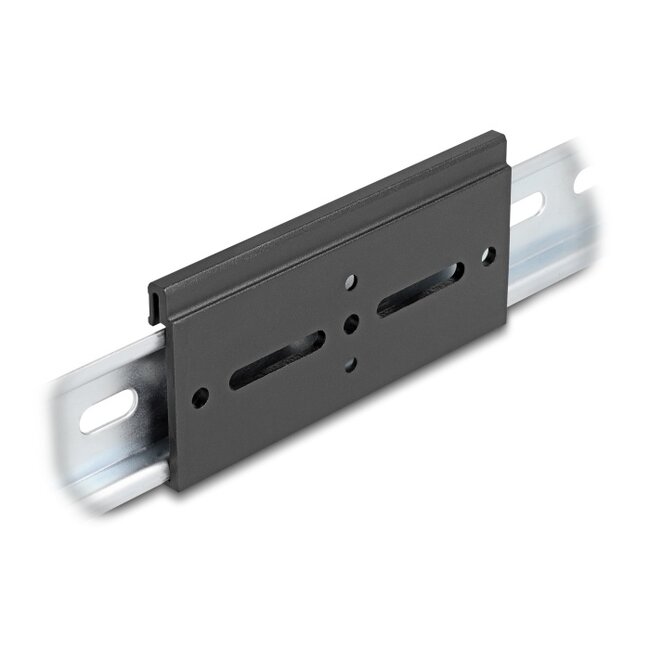

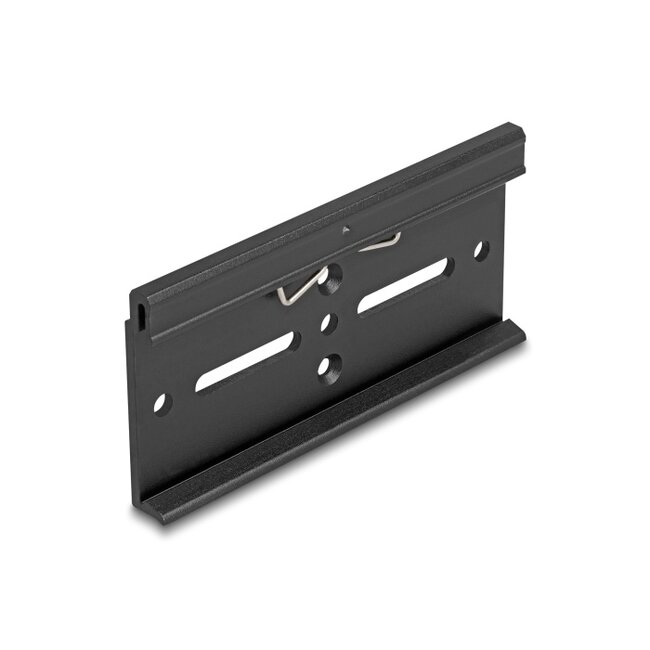

This mounting clip by Delock is suitable for the mounting on a 35 mm DIN rail.
To be used for different devices
The clip can be screwed to different devices. This allows you to mount the devices e.g. in a control cabinet onto a DIN rail.
• DIN rail mounting: 35 mm
• 5 x mounting holes
• 3 x Mounting hole diameter: ca. 4.5 mm
• 2 x Mounting hole diameter: ca. 3.2 mm
• 2 x elongated hole horizontal: ca. 27.5 x 4.5 mm
• Environmental temperature: -20 °C ~ 100 °C
• Material: aluminium with spring steel wire
• Colour: black
• Dimensions (LxWxH): ca. 100.0 x 47.8 x 7.5 mm
• 1 x mounting clip

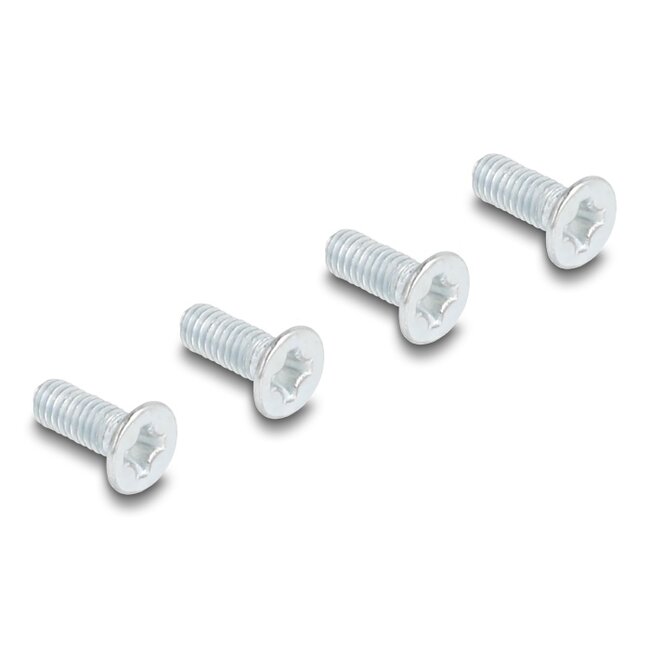

• 4 x screw M3 x 6 mm
