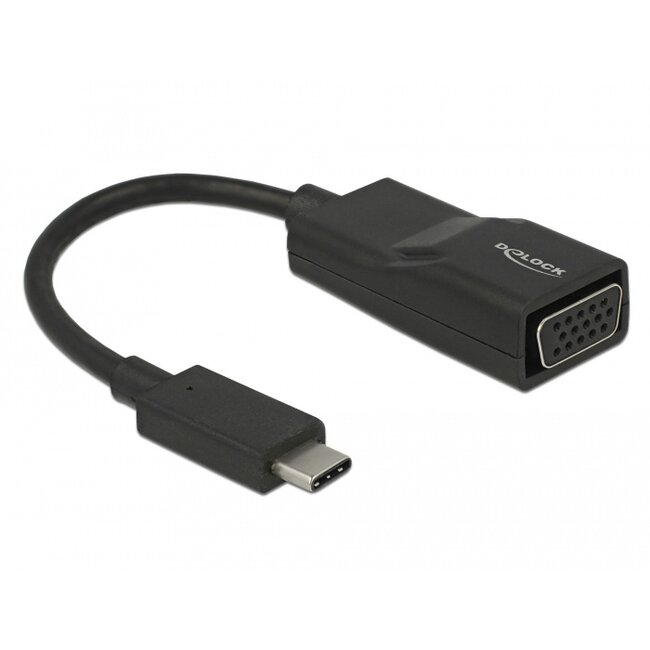

Description This Delock adapter is suitable for the connection of a VGA monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.
Specification • Connectors:
1 x USB Type-C™ male >
1 x VGA 15 pin female
• Chipset: Chrontel CH7212
• DisplayPort 1.3 specification
• Signal direction: USB Type-C™ input > VGA output
• Resolution up to WUXGA 1920 x 1200 @ 60 Hz
(depending on the system and the connected hardware)
• Transfer of analogue video signals
• USB bus powered
• Plug & Play

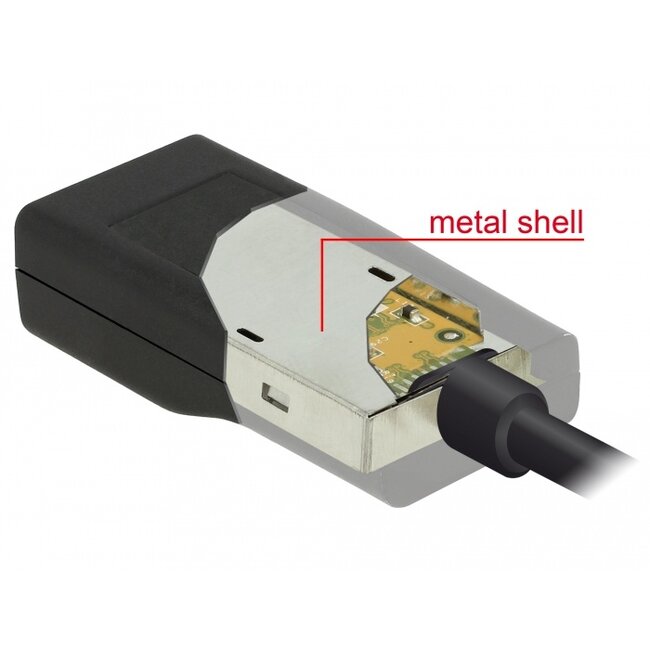

• Plastic housing with inner metal shell
• Cable length without connectors: ca. 8 cm
• Colour: black
System requirements • Android 6.0 or above
• Chrome OS
• iPad Pro (2018)
• Mac OS 10.9.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Windows 10 Mobile
• Computer, tablet or smartphone with a free USB Type-C™ port and
Displayport alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ to VGA adapter
