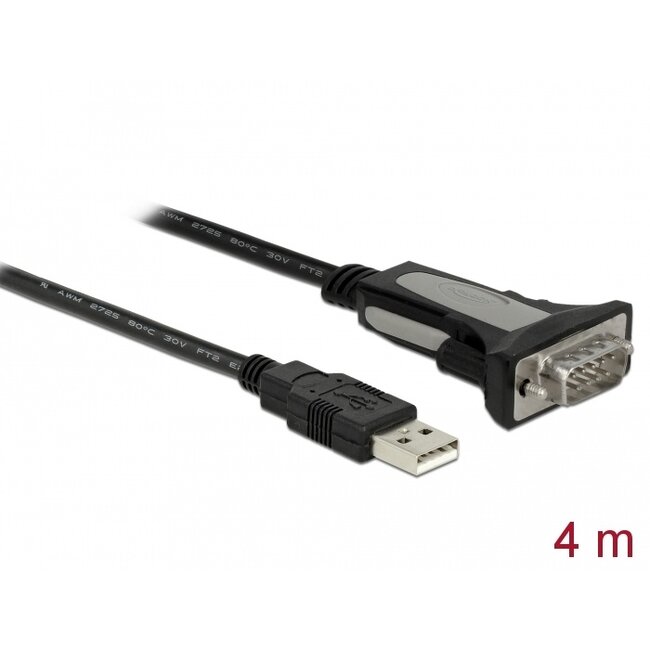

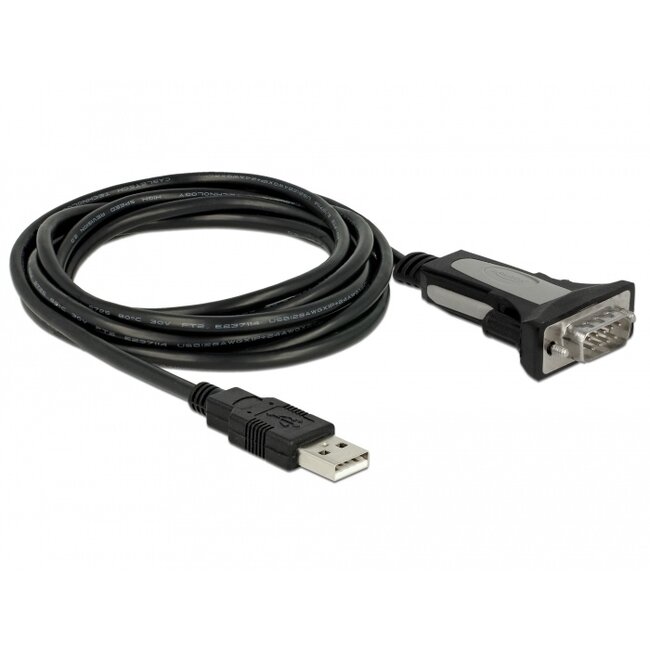

This USB Type-A to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices etc.
Specification• Connectors:
1 x USB 2.0 Type-A male >
1 x serial RS-232 DB9 male with screws
• Chipset: FTDI FT232
• Data transfer rate up to 460,8 Kbps

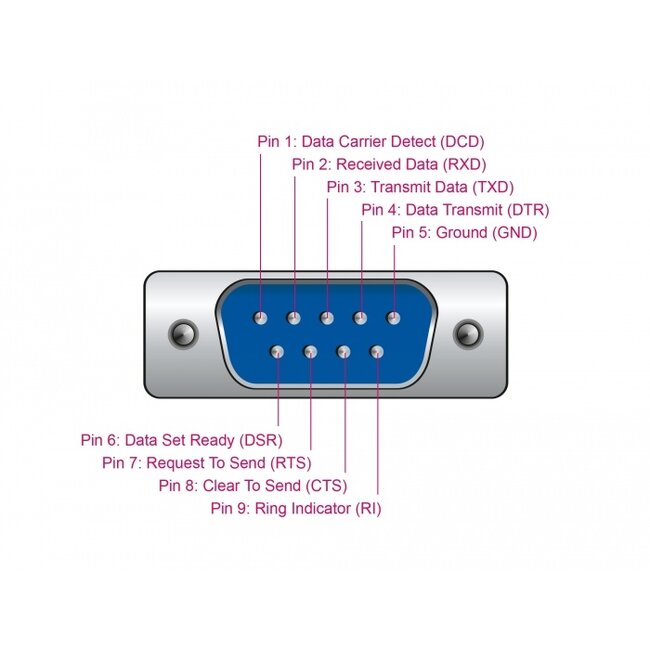

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Parity: even, odd, none, mark, space
• Stop bits: 1, 2
• Databits: 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS
• FIFO: 128 Byte - RX
• FIFO: 256 Byte - TX
• Cable length incl. connectors: ca. 4 m
• Linux Kernel 2.6 or above
• Mac OS 10.9 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 to 1 x serial adapter
• Driver CD
• User manual
