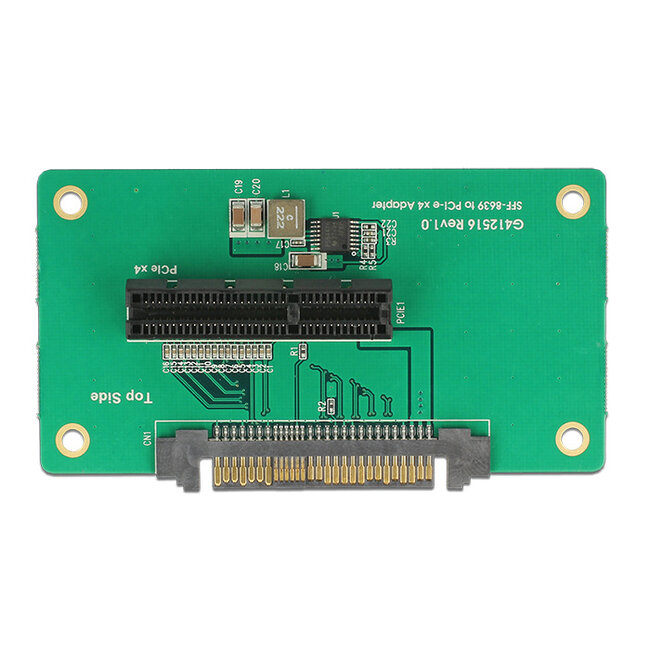

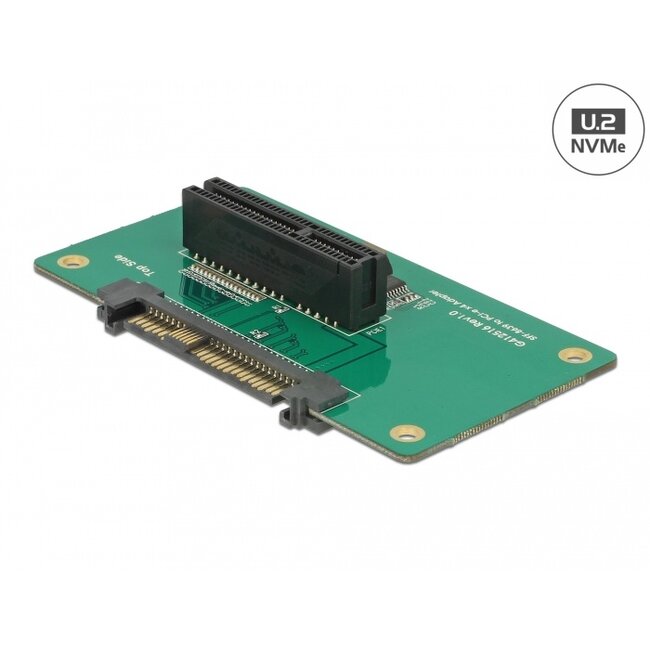

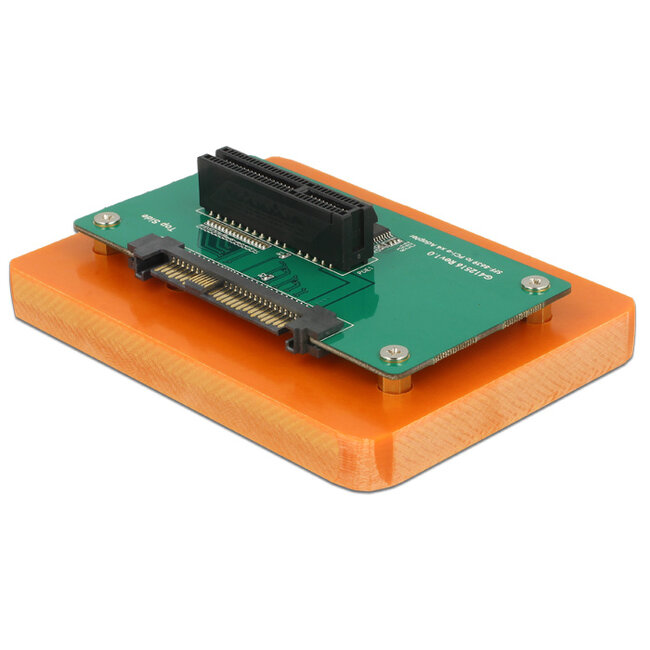

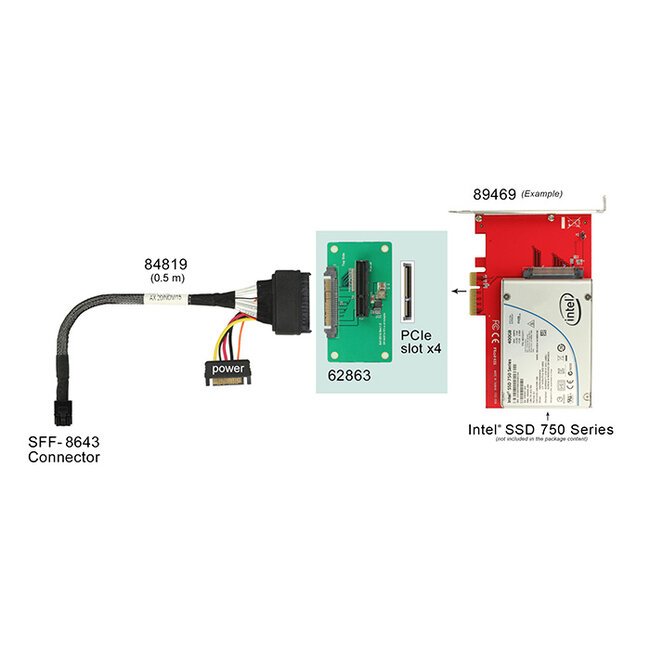

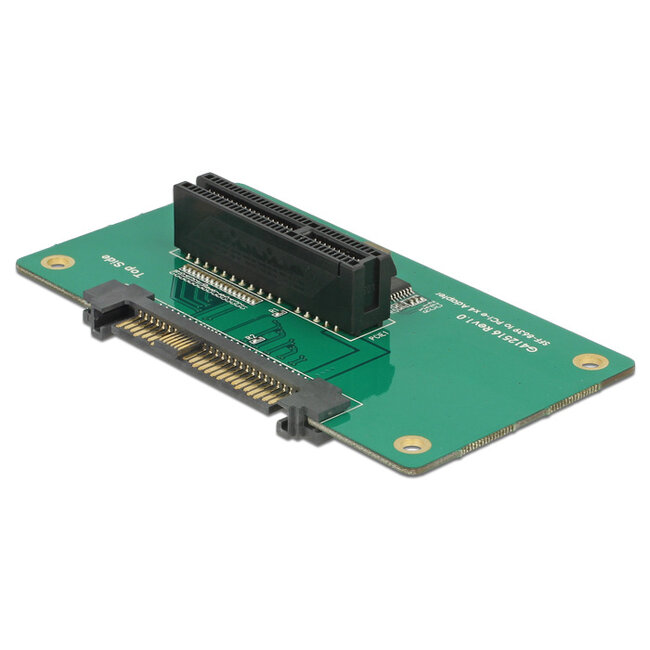

This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe slot. To this slot can be connected e.g. PCI Express cards with M.2 slot for M.2 PCIe modules.
Specification• Connectors:
1 x U.2 SFF-8639 male >
1 x PCI Express x4, V3.0
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Output voltage: 3.3 V
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
adapter: ca. 85 x 45 x 15 mm
fixing plate: ca. 95 x 70 x 10 mm
• Linux Kernel 3.20 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8639 interface
Package content
• Adapter

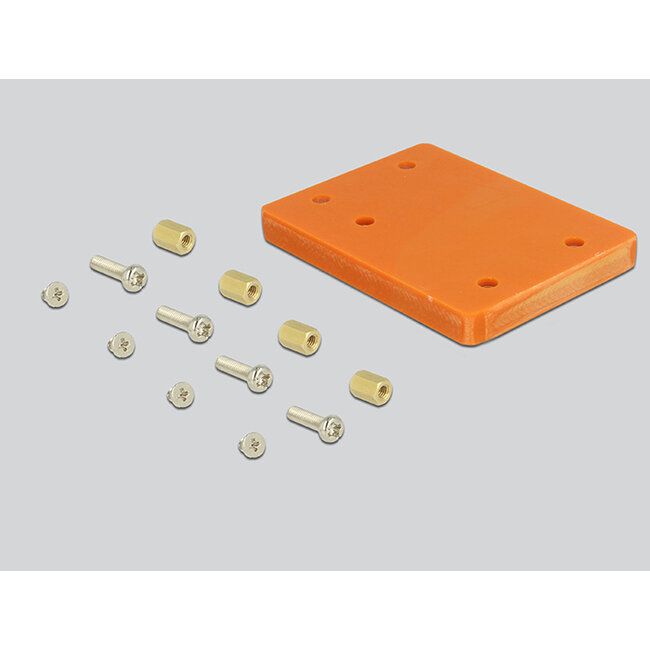

• Fixing plate
• Screws and spacer
• User manual
