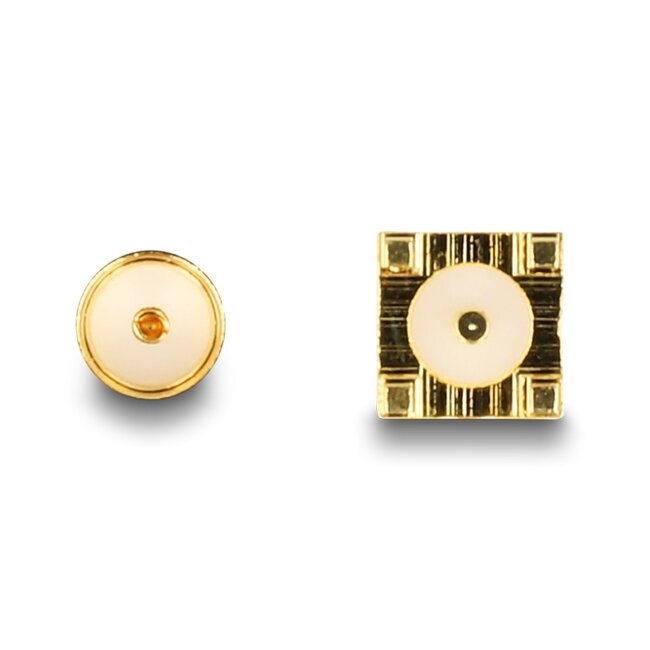

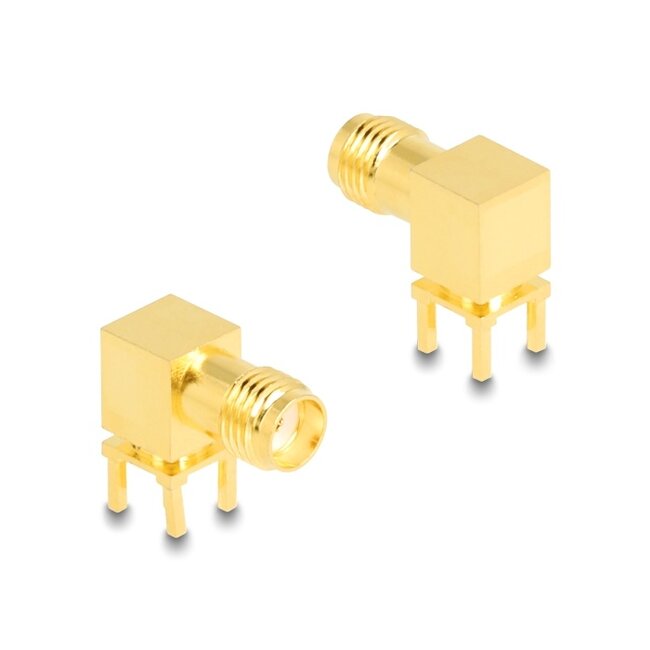

This adapter by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification• Connector: 1 x SMA Jack 90°
• Housing material: HBI59-1 brass gold plated
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Operating temperature: -55 °C ~ 155 °C
• Soldering: 5 solder points
• Dimensions (LxWxH): ca. 27 x 24 x 12 mm
• Adapter
