This RS-232 loopback adapter by Delock is suitable for fault and data analysis. The matching software tools are freely available on the internet. The tester (87713) offers a versatile and complementary way to visualize the respective status of the signals by means of LEDs.
Specification• Connector:
1 x Serial RS-232 DB9 female with screws

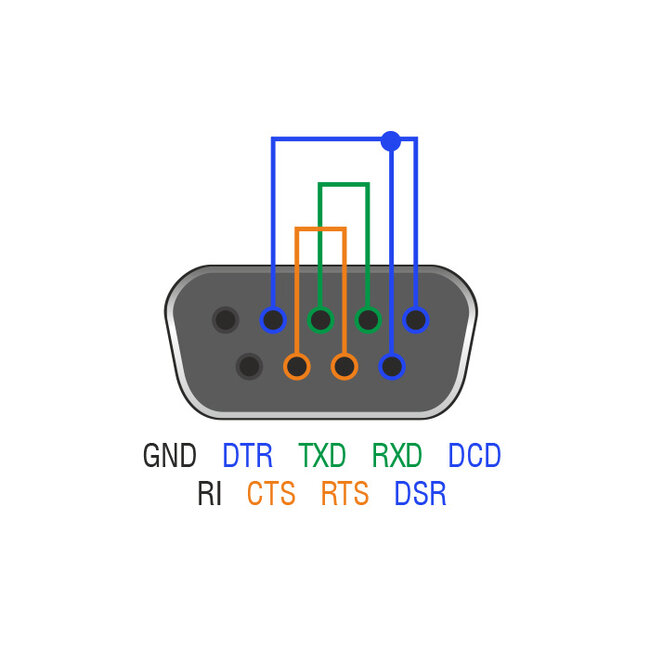

• Pinout:
RXD - TXD
RTS - CTS
DTR - DSR - DCD
• Screws: #4-40 UNC
• Colour: black
• Dimensions(LxWxH): ca. 41 x 34 x 15 mm
• One free RS-232 DB9 interface
Package content
• RS-232 DB9 Loopback adapter
