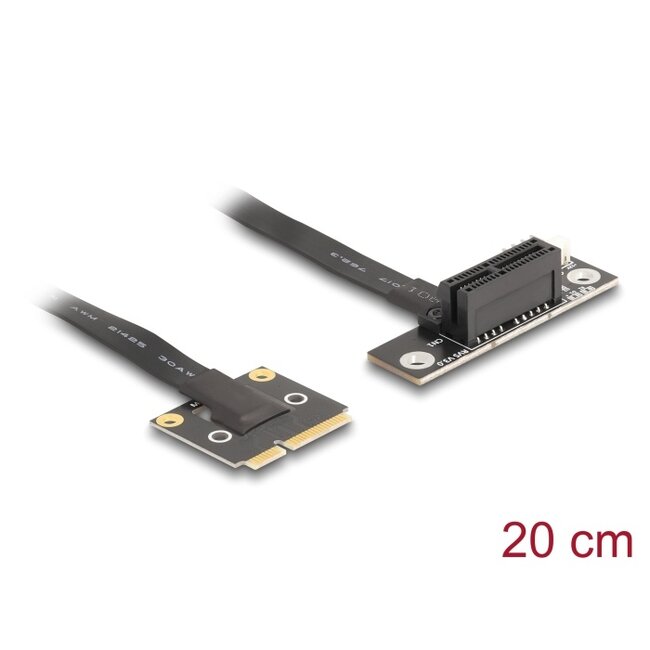

This Mini PCIe to PCIe x1 adapter by Delock enables it to use an PCIe card in a Mini PCIe slot. Due to the integrated cable, the PCIe card can be mounted in an easily accessible place. If necessary, an external power supply can be connected to the 4-pin connector.
Extension Mini PCI Express
Easily extend your existing half size Mini PCI Express card to full size by attaching it to the included extension.
• Connectors:
1 x Mini PCIe male
1 x PCI Express x1 slot
1 x Floppy 4 pin power plug
• Supports PCI Express 3.0 protocol
• Bootable
• Colour: black
• Dimensions Mini PCIe board (LxWxH): ca. 30 x 23 x 1 mm
• Cable length: ca. 20 cm
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Adapter cable
• Extension
• Spacer
• Dust cover
• Cable SATA 15 pin to 4 pin Floppy female, length ca. 20 cm
• 4 x screws 1.8 x 3.0 mm
• Screwdriver
