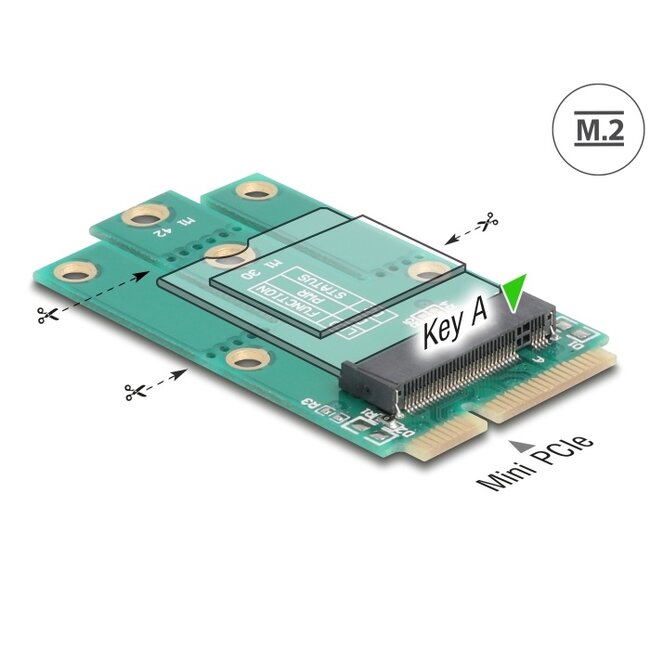

This Adapter by Delock enables the connection of an M.2 module in 2242, 2230, 3042 or 3030 format. The adapter can be installed into the system through a Mini PCIe interface. Through the predetermined breaking point, the length can be shortened from full size to half size.
Specification• Connectors:
1 x Mini PCIe male
1 x M.2 key A slot
• Interface: USB 2.0 / PCIe
• Form factor: Mini PCIe full size / half size
• Supports M.2 modules in format 2242, 2230, 3042 and 3030 with key A or key A+E based on USB / PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Dimensions (LxWxH): ca. 54 x 30 x 4 mm
• Adapter

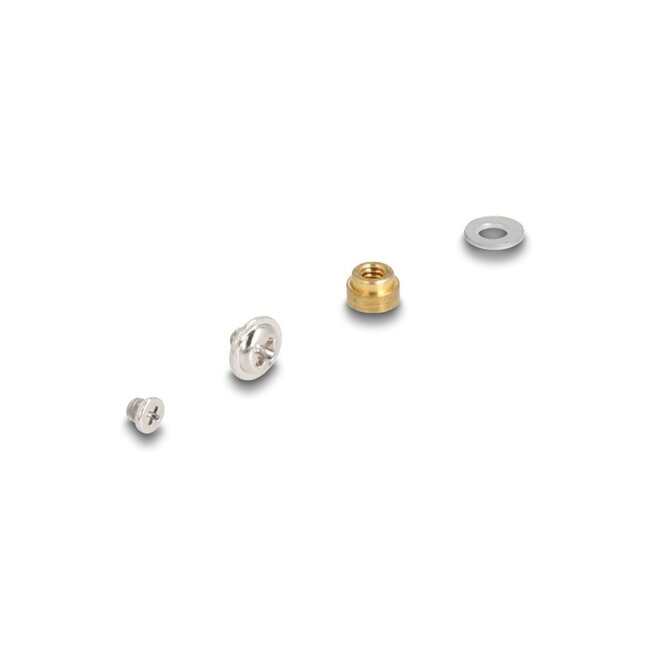

• Mounting material
• User manual
