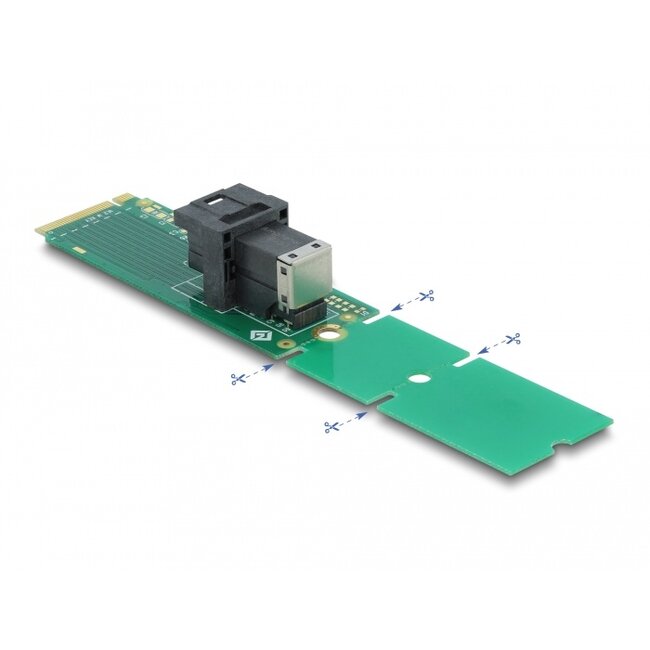

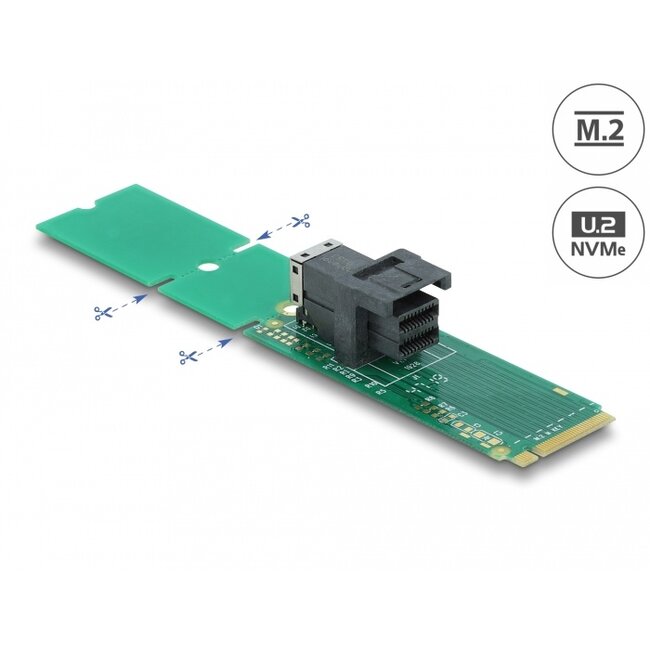

This Delock adapter enables the connection of a NVMe memory e.g. U.2 SSD via the SFF-8643 interface to a M.2 slot. Through the predetermined breaking point, the length can be shortened from 110 mm to 80 mm or 60 mm.
Specification• Connectors:
1 x 67 pin M.2 Key M male
1 x 36 pin SFF-8643 female
• Interface: PCIe
• Form factor: M.2 22110 (2280 / 2260)
• Suitable for M.2 slot with key M based on PCIe
• Compatible to PCI Express V4.0
• Data transfer rate up to 64 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Linux Kernel 4.6.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• A free M.2 interface with key M
Package content
• Adapter M.2 to SFF-8643
• User manual
