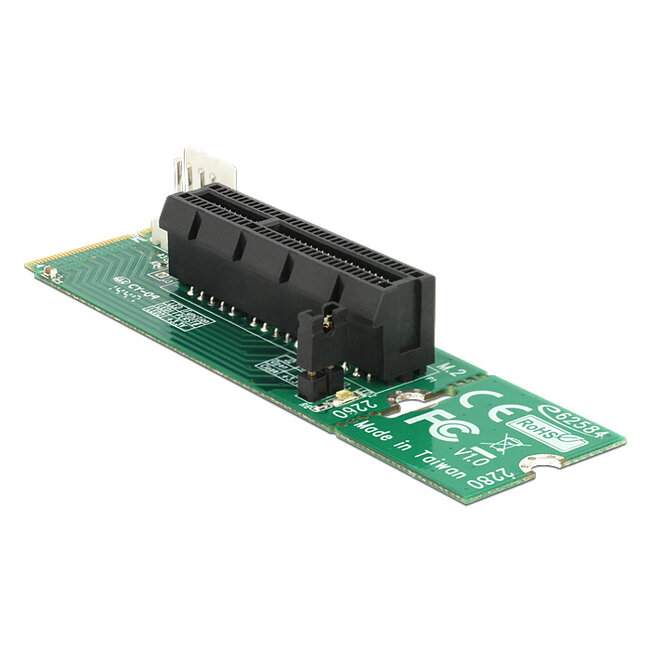

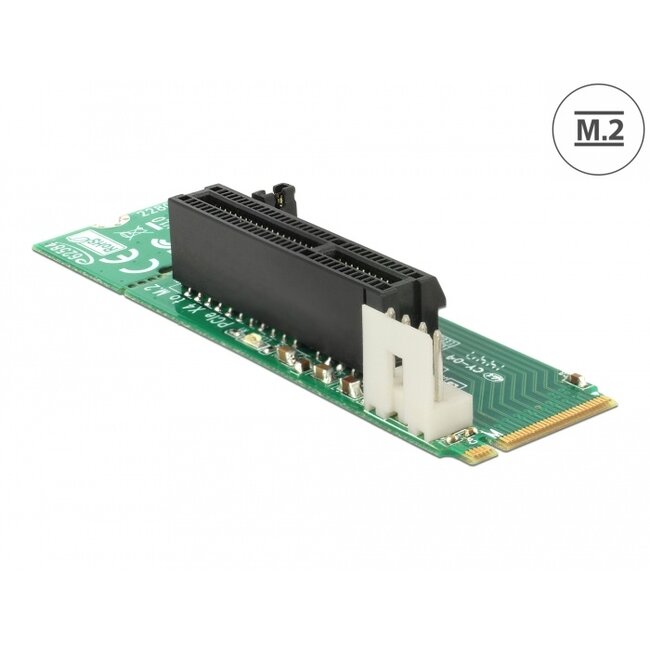

This adapter by Delock can be used to connect a PCI Express card to the M.2 key M interface. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
Specification• Connectors:
1 x 67 pin M.2 Key M male
1 x PCI Express x4 slot, rev. 4.0
1 x 4 pin power connector
• Interface: PCIe
• Form factor: 2280 or 2260
• Suitable for M.2 slot with key M based on PCIe
• Supports NVM Express (NVMe)
• 2 x LED indicator
• Bootable
• OS independent, no driver installation necessary
• A free M.2 interface with key M
Package content
• Adapter M.2 > PCI Express

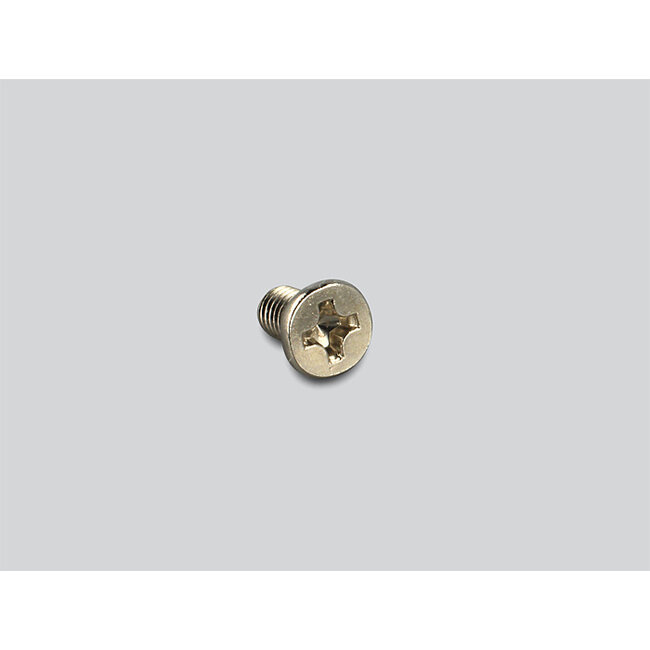

• Fixing screw for M.2 adapter
• Power cable
