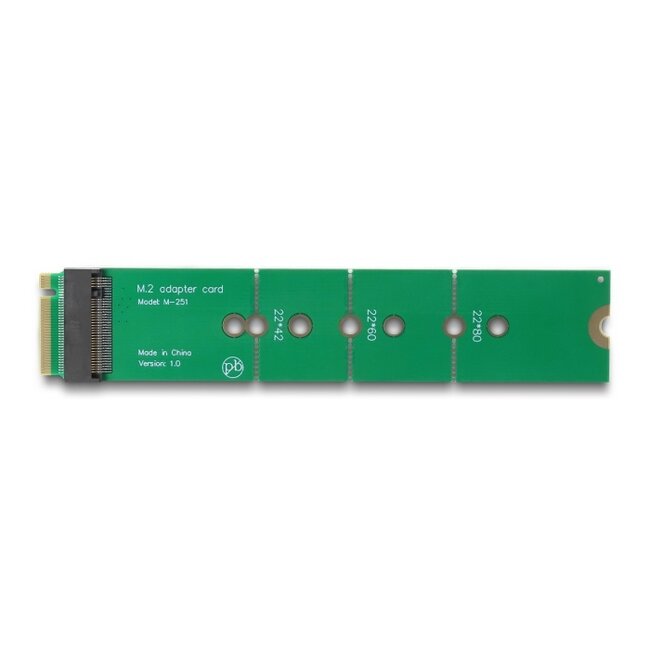

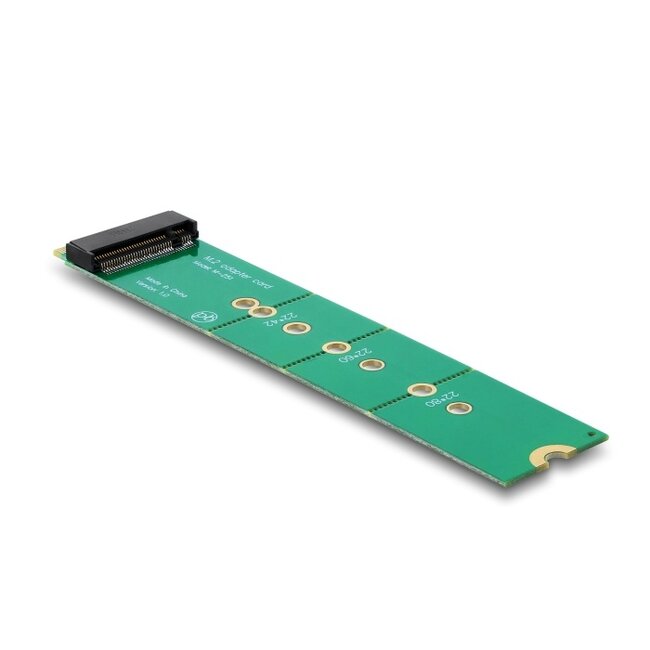

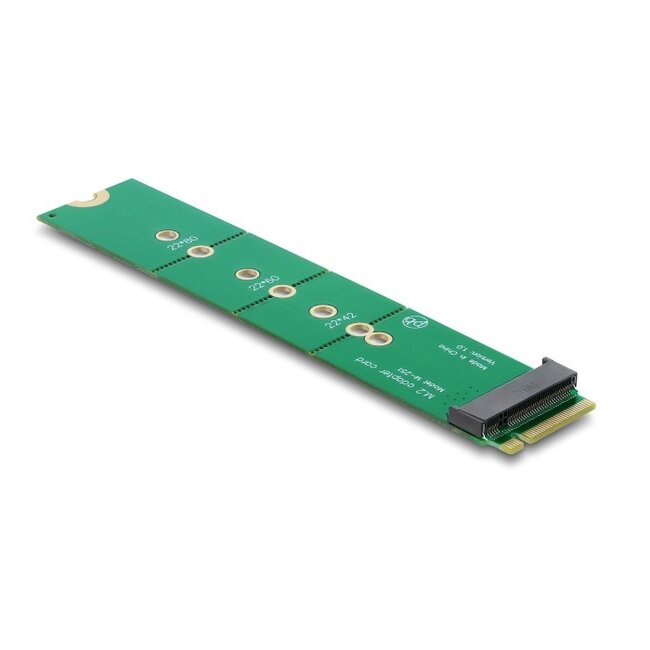

This adapter by Delock can be used as a port saver in order to prevent the M.2 interface from damage when it is under usage for high contact durability. In addition, the adapter is ideally suited as a carrier and extension for M.2 modules in the test laboratory.
SATA and NVMe support
Both M.2 SSDs with NVMe protocol and SATA protocol can be used with the adapter.
• Connectors:
1 x M.2 key M male
1 x M.2 key M slot
• Form factor: M.2 22110

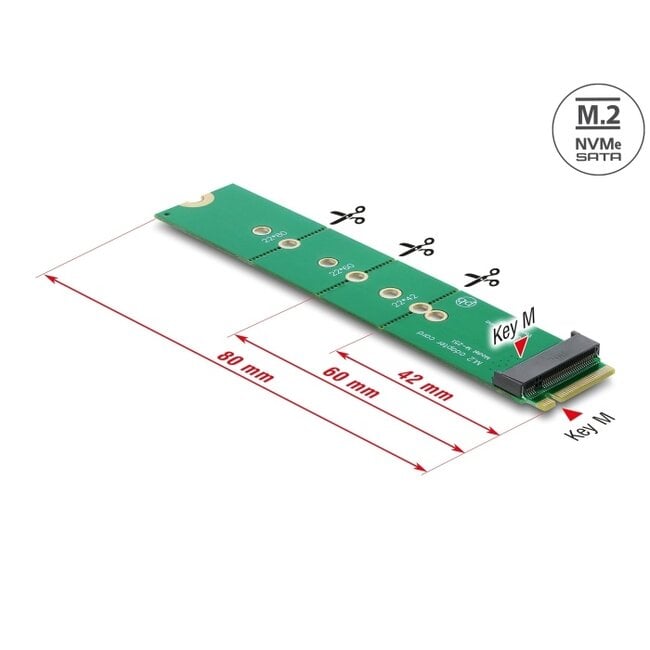

• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Compatible to PCI Express V4.0
• Supports NVM Express (NVMe)
• Bootable
• Dimensions (LxWxH): ca. 110 x 22 x 4 mm
• Adapter
• Mounting material
