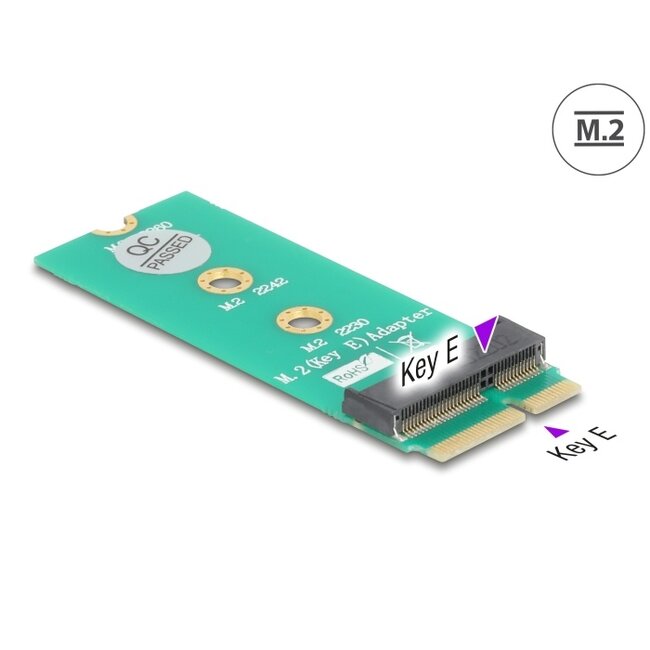

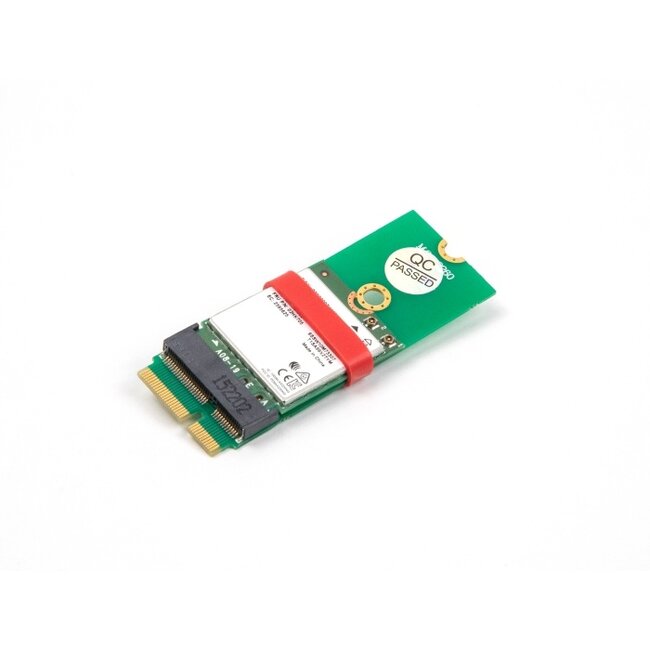

This adapter by Delock can be used as a port saver in order to prevent the M.2 interface from damage when it is under usage for high contact durability. In addition, the adapter is ideally suited as a carrier and extension for M.2 modules in the test laboratory.
Specification• Connectors:
1 x M.2 key E male
1 x M.2 key E slot
• Form factor: M.2 2260
• Supports M.2 modules in format 2242 and 2230 with key E or key A+E
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Dimensions (LxWxH): ca. 60 x 22 x 4 mm

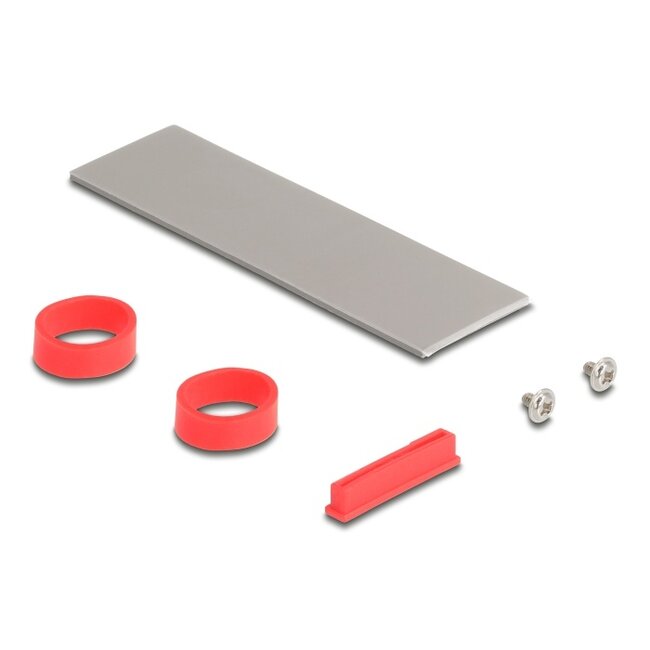

• Adapter
• Mounting material
• 1 x thermal conductive pad
• 2 x rubber ring
• User manual
