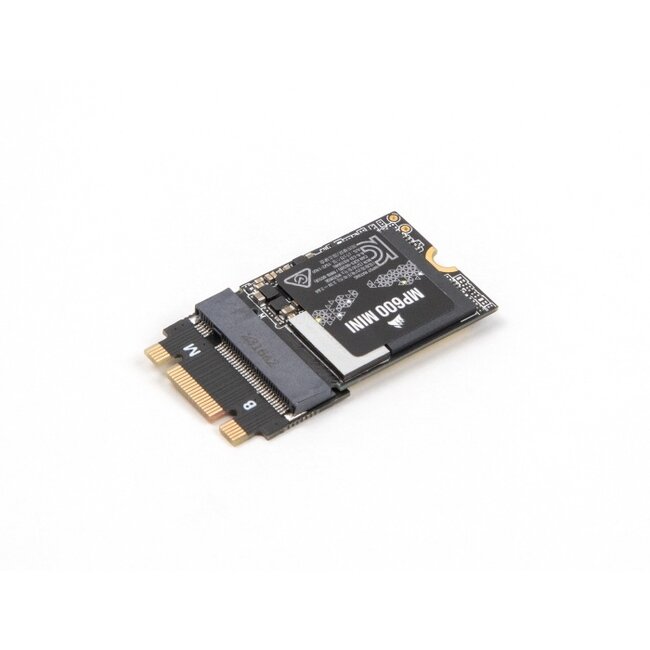

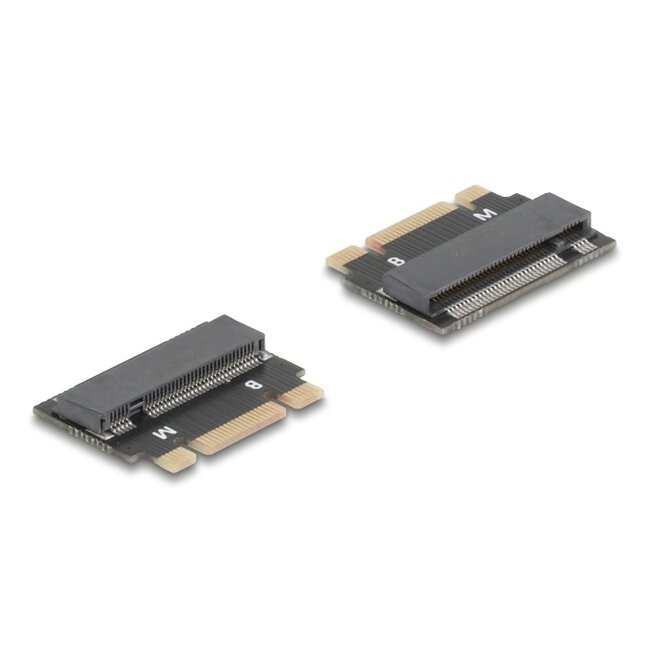

This adapter by Delock can be used to extend an M.2 2230 module and thus get an M.2 2242 module. SATA or NVMe SSDs can be connected to the adapter.
Please Note
The adapter cannot be used to convert SATA to NVMe SSDs or vice versa.

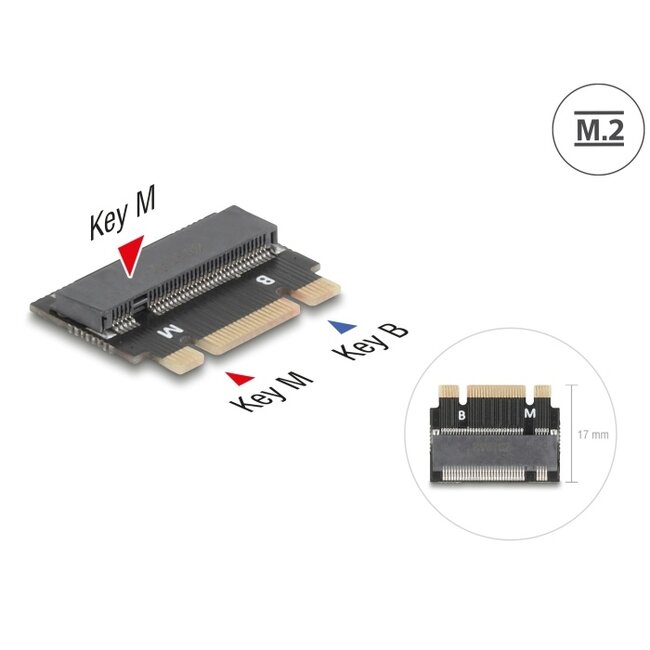

• Connectors:
1 x M.2 key B+M male
1 x M.2 key M slot
• Interface: PCIe x2 Rev. 4.0 / SATA
• Supports M.2 modules with key M or key B+M
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported

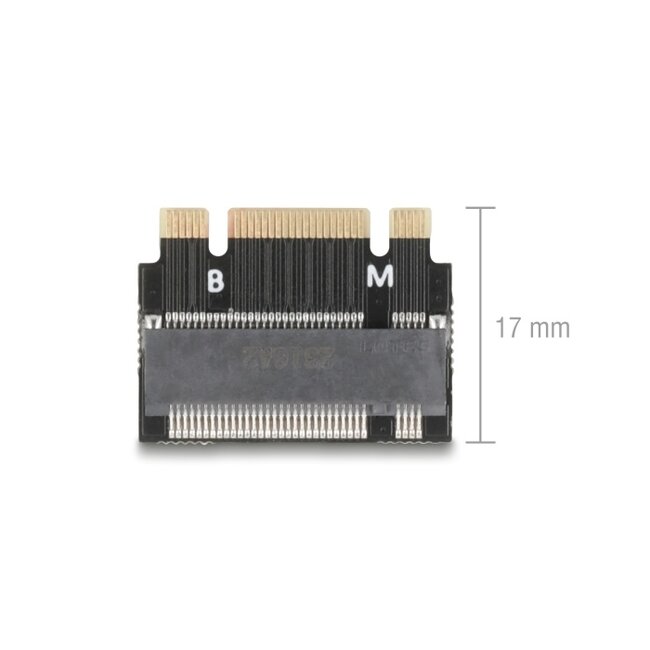

• Dimensions (LxWxH): ca. 22 x 17 x 3 mm
• Adapter
• Mounting material
