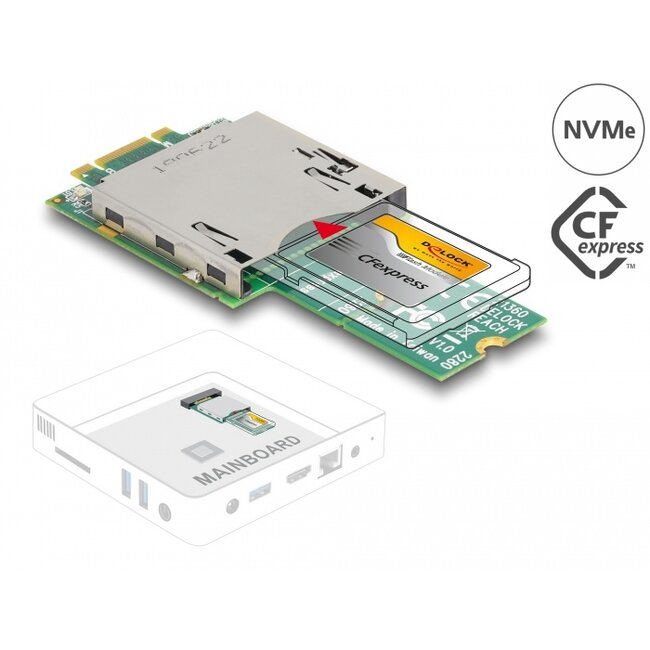

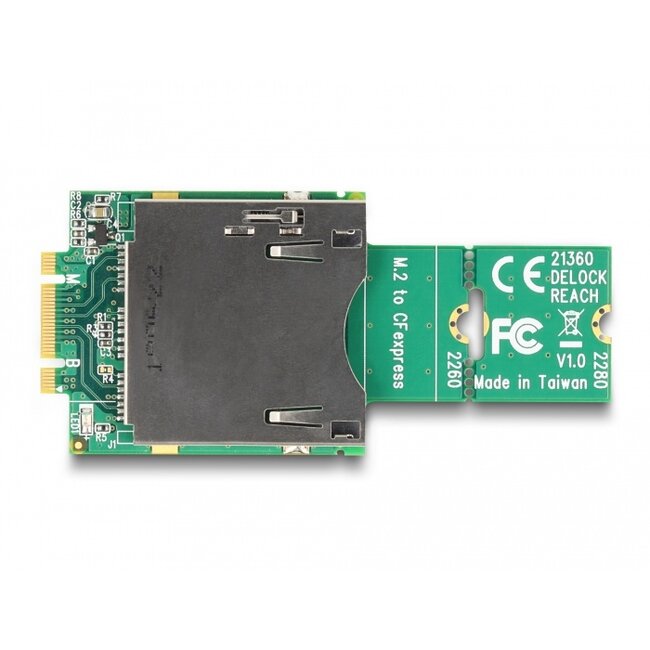

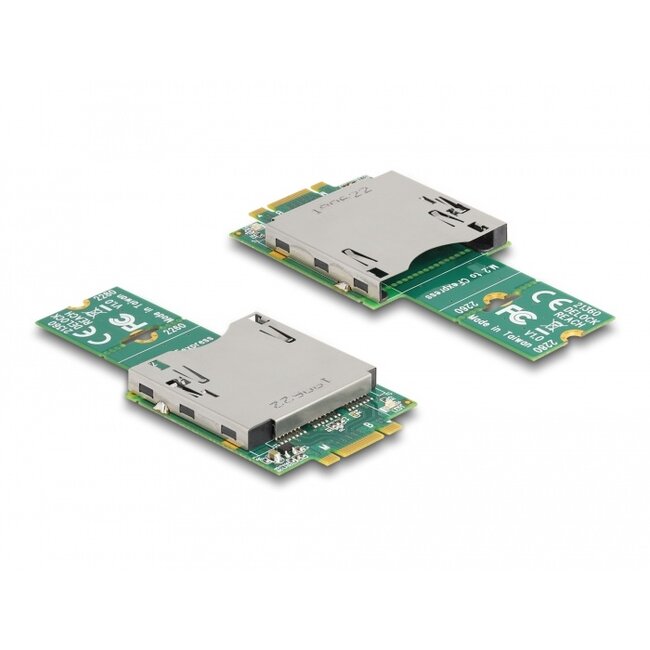

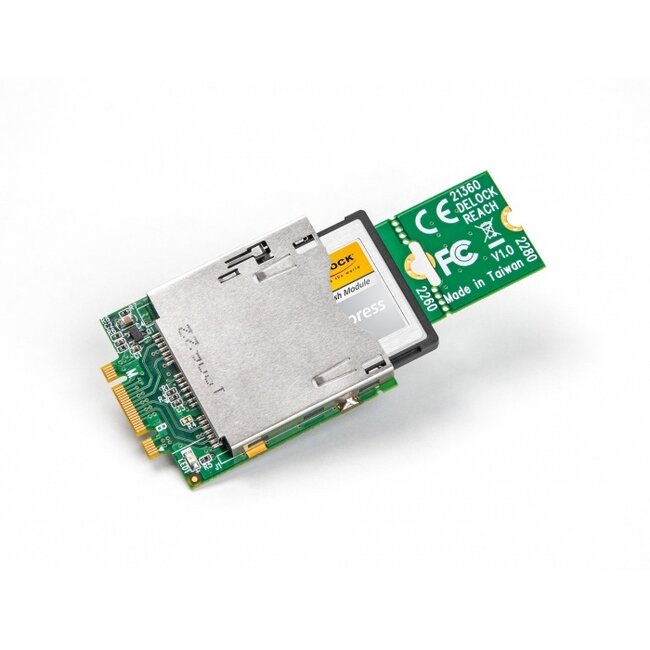

This adapter by Delock can be used to connect a CFexpress memory card to the M.2 interface. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
Specification• Connectors:
1 x M.2 key B+M male
1 x CFexpress 2.0 slot type B
• Interface: PCIe Rev. 3.0
• Form factor: 2280 or 2260
• Suitable for M.2 slot with key M or B based on PCIe
• Push to push CFexpress socket
• Supports NVM Express (NVMe)
• LED indicator for power
• Bootable, ex UEFI version 2.3.1
• Dimensions (LxWxH): ca. 80 x 37 x 5 mm
• Linux Kernel 3.17 or above
• Windows 8.1/8.1-64/10/10-64/11
• A free M.2 key M or key B slot
Package content
• Adapter
• User manual
