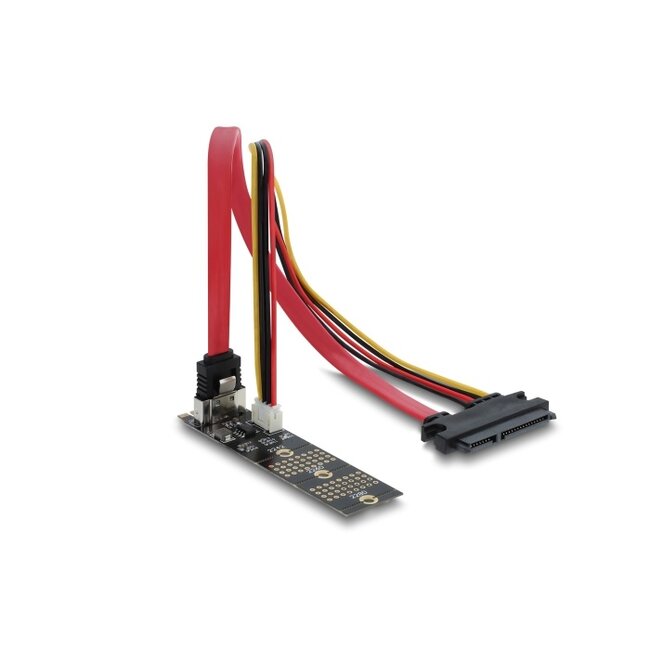

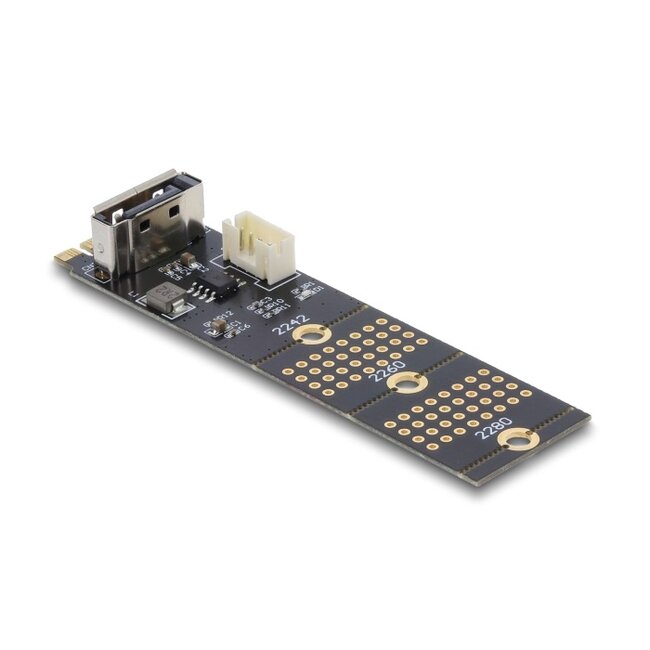

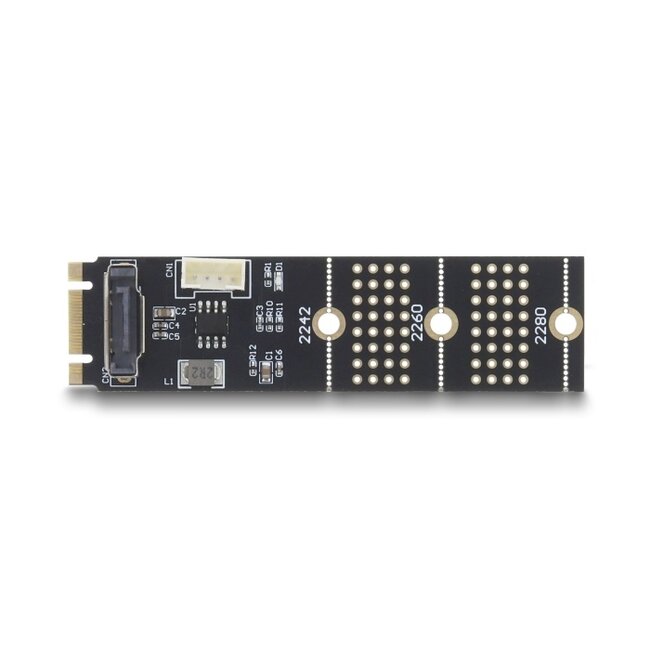

This adapter by Delock converts the M.2 interface into a SATA 7 pin interface. Thus it can be used to connect e.g. a SATA SSDs to the M.2 interface. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm or 42 mm. With the help of the included cable a 2.5″ HDD / SSD can be connected.
Specification• Connectors:
1 x M.2 key B+M male
1 x SATA 6 Gb/s 7 pin plug
1 x 4 pin power male (5 V)
• Interface: SATA
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on SATA
• Data transfer rate up to 6 Gb/s
• Output power: max. 1.5 A / 5 V

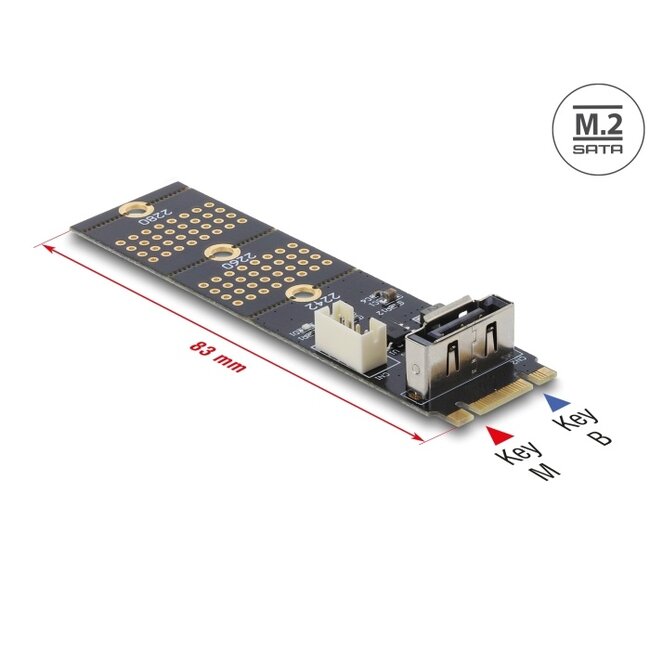

• Dimensions (LxWxH): ca. 83 x 22 x 10 mm
• Adapter

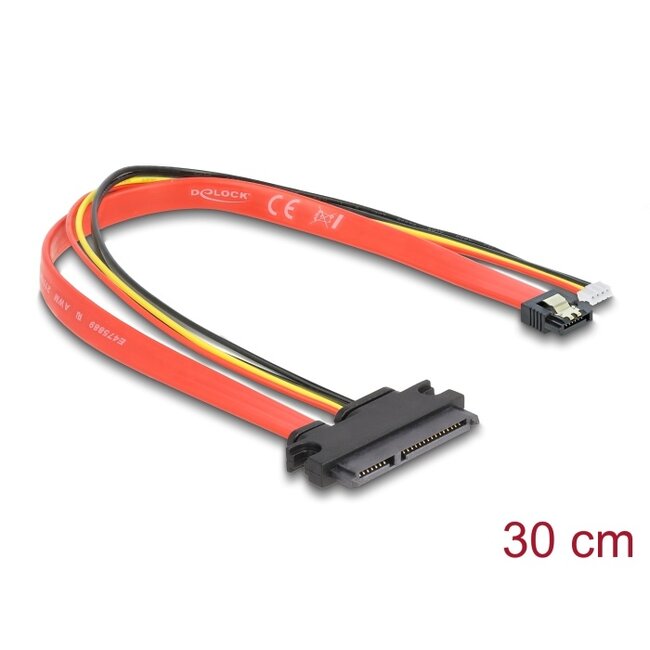

• Connection cable, length ca. 30 cm
• M.2 mounting material
• Screwdriver
• User manual
