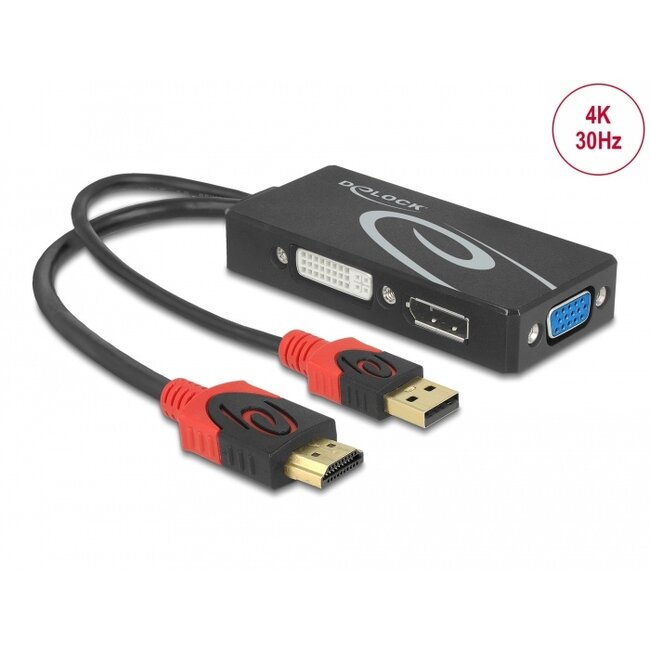

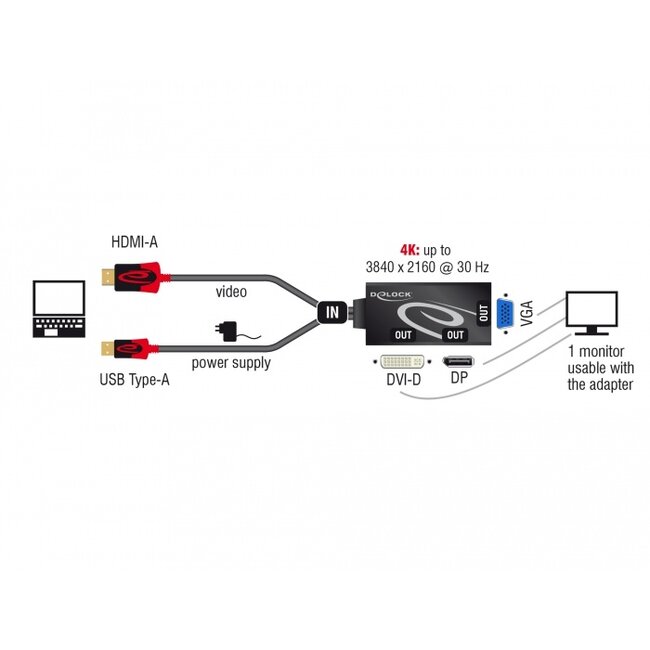

With this HDMI adapter by Delock, the system can be extended by a VGA, DisplayPort or DVI interface and various devices such as TV, beamer, monitor etc. can be connected. Only one monitor can be used on the adapter.
Specification• Connectors:
1 x HDMI-A 19 pin male
1 x USB Type-A male (power supply) >
1 x VGA 15 pin female
1 x DisplayPort 20 pin female
1 x DVI 24+5 female with nuts
• Chipset: PS8222, STDP2600, AG6200
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• DVI-D (Single Link), VGA not wired
• Only 1 monitor usable with the adapter
• Audio signal is transmitted only over DisplayPort
• DisplayPort specification:
- Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
hardware)
- Supports HDCP 1.4
• VGA / DVI specification:
- Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
hardware)
• Cable length without connectors: ca. 13.5 cm
• Colour: black
• OS independent, no driver installation necessary
• A free HDMI-A female
• A free USB Type-A female port
Package content
• HDMI to DVI / VGA / DisplayPort Adapter
