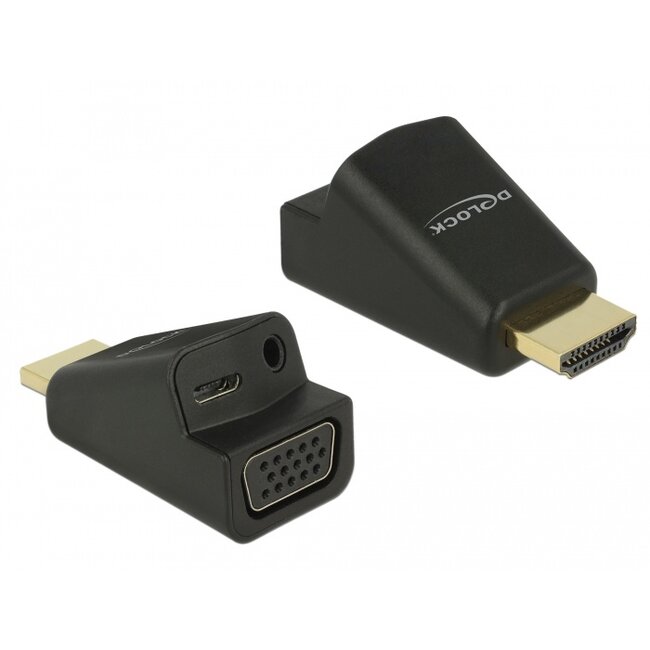

This adapter by Delock can be used to connect e.g. a VGA monitor to a free HDMI interface of the system. Furthermore, it is possible to transfer the audio signal via the Stereo jack female port.

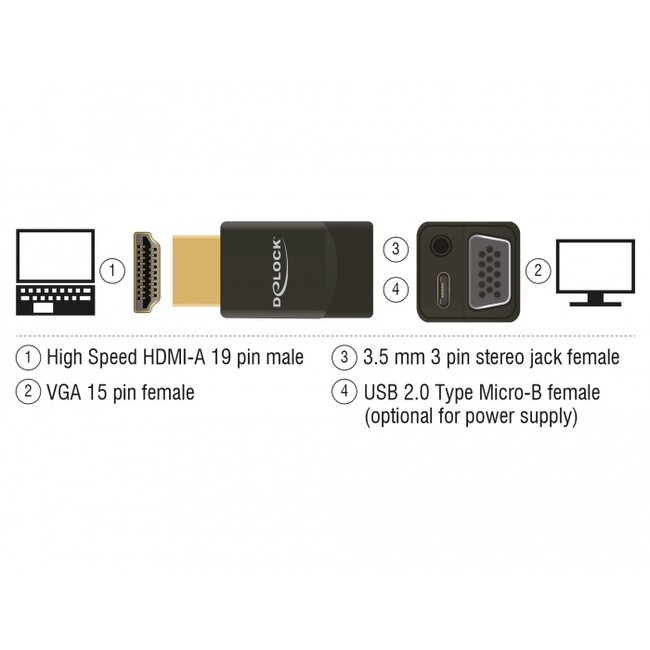

Specification• Connectors:
1 x High Speed HDMI-A 19 pin male >
1 x VGA 15 pin female
1 x 3.5 mm 3 pin stereo jack female
1 x USB 2.0 Type Micro-B female (optional for power supply)
• Chipset: CH7101
• High Speed HDMI specification
• VGA connector without nuts
• Signal direction: HDMI input > VGA output
• Resolution up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Supports only one connection to a VGA monitor
• Colour: black
• Dimensions (LxWxH): ca. 47 x 23 x 23 mm
• OS independent, no driver installation necessary
• A free HDMI-A female
• Monitor with a free VGA interface
Package content
• Adapter HDMI to VGA
