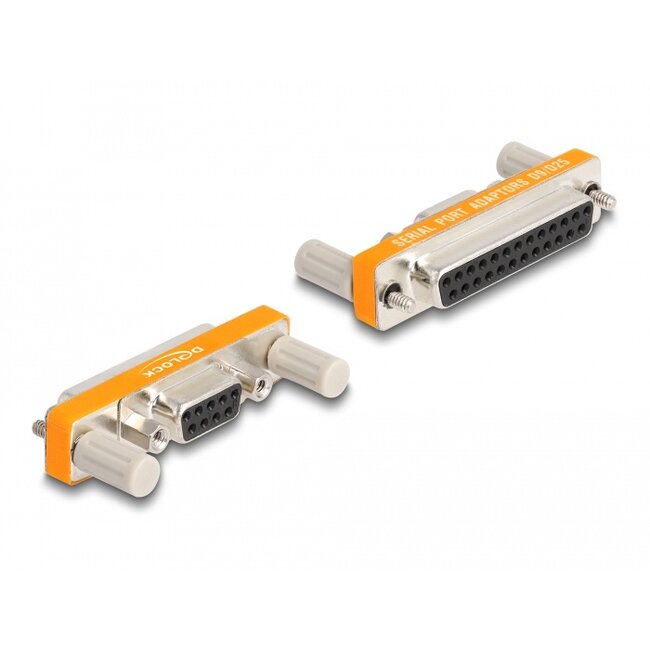

This narrow adapter by Delock can, for example, connect devices such as printers, modems and computers with serial RS-232 D-Sub 9 or D-Sub 25 interfaces.
Specification• Connectors:
1 x D-Sub 9 pin female with nuts
1 x D-Sub 25 pin female with screws

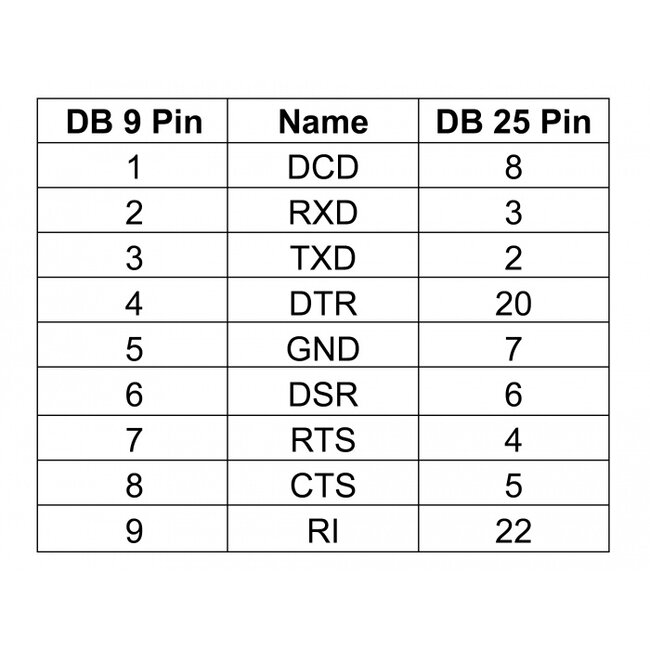

• Pin assignment: 1 – 8, 2 – 3, 3 – 2, 4 – 20, 5 – 7, 6 – 6, 7 – 4, 8 – 5, 9 – 22, shielded
• Contacts: gold plated brass
• Screw type: #4-40 UNC
• Dimensions (LxWxH): ca. 53 x 18 x 13 mm
• A free D-Sub 9 pin interface
• A free D-Sub 25 pin interface
Package content
• Adapter D-Sub 9 pin to D-Sub 25 pin
