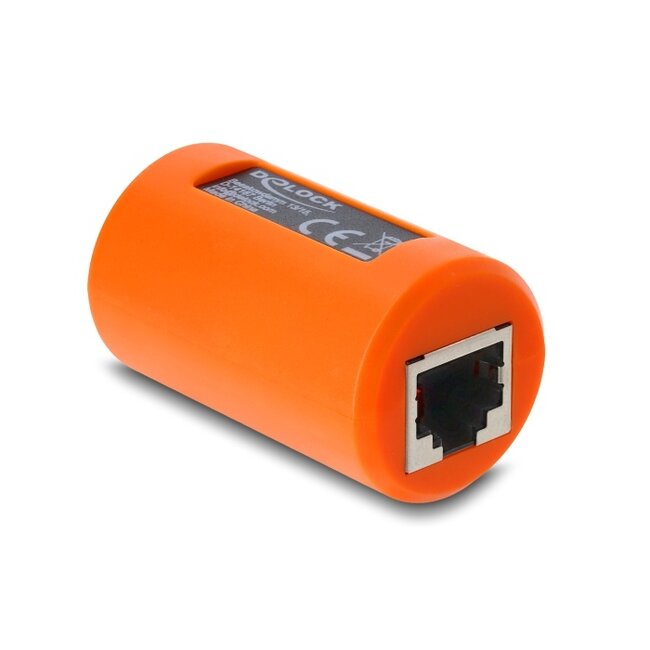

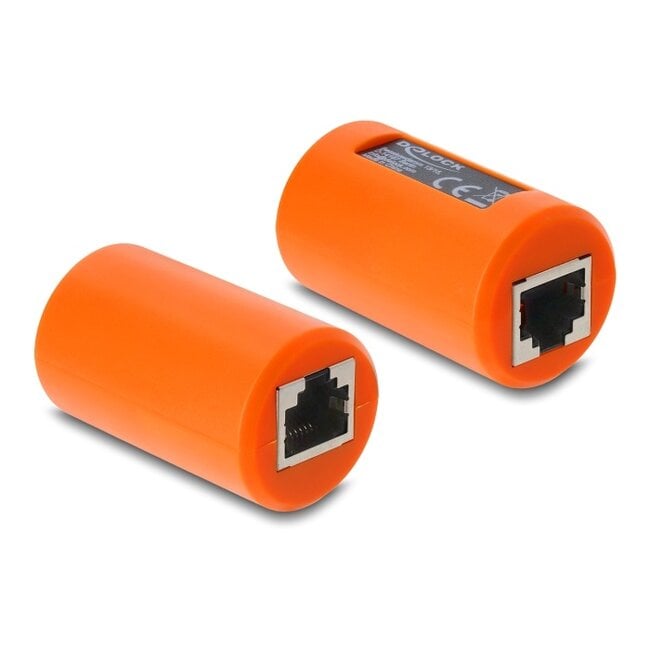

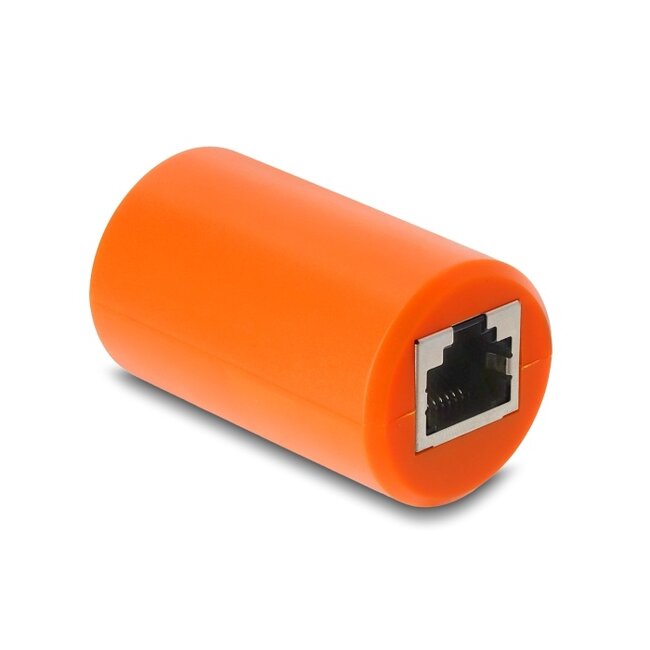

This coupler by Delock can be used to connect or extend two RJ45 network cables.
With surge protection
Equipped with 8 integrated TVS protection components, the adapter offers effective surge protection. It prevents electrical interference from entering the devices via the network cable and damaging them.
• Connectors:
1 x RJ45 jack
1 x RJ45 jack
• 1:1 connected
• Cat.6A specification
• With surge protection
• Diode:
Reverse Stand-Off Voltage: 48 V
Breakdown Voltage (VBR):
53.3 V (at 1 mA test current)
61.3 V (at 5 mA test current)
Test current: 1 mA
Maximum clamping voltage: 77.4 V
Peak pulse current: 5.2 A
Reverse leakage at VRWM: 5 µA
• Round
• Shielded
• Material: ABS
• Colour: orange
• Dimensions (LxD): ca. 48.0 x 28.3 mm
• Adapter
